A carbon fork designed for bikepacking and endless exploration. Experience easier carrying of all possible accessories for everything from overnight endeavors to epic self-supported excursions with the ENVE Adventure Fork.
The ENVE Adventure fork provides a lighter weight option for bikepackers and frame builders, while still maintaining reliability and strength. The dynamo light and charger routing is an integrated and protected solution to self-supported bike riders’ needs. Finally, the fork chip option gives builders versatility in the fork by adjusting the axle-to-crown for different bike geometries for alternative bikepacking methods. In a market that’s filled with heavy steel fork options, the ENVE Adventure fork offers bikepackers an opportunity to lighten their overall bike load through our trusted carbon fiber fork expertise.
- Three-Pack Accessory Mounts
- Fender and Rack Mounts

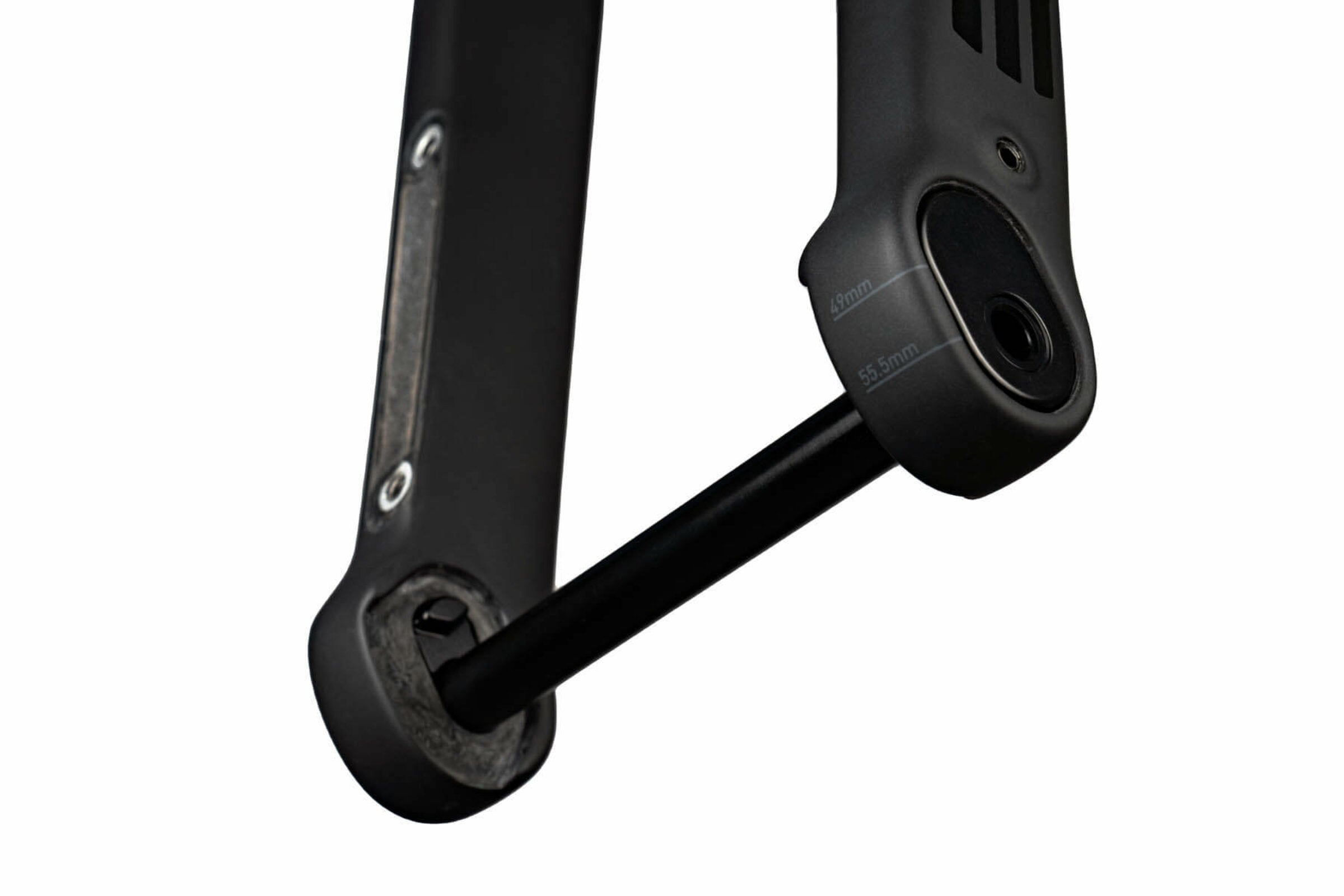

- Reversible Drop-Out Chips for Adjustable Axle-To-Crown and Rake

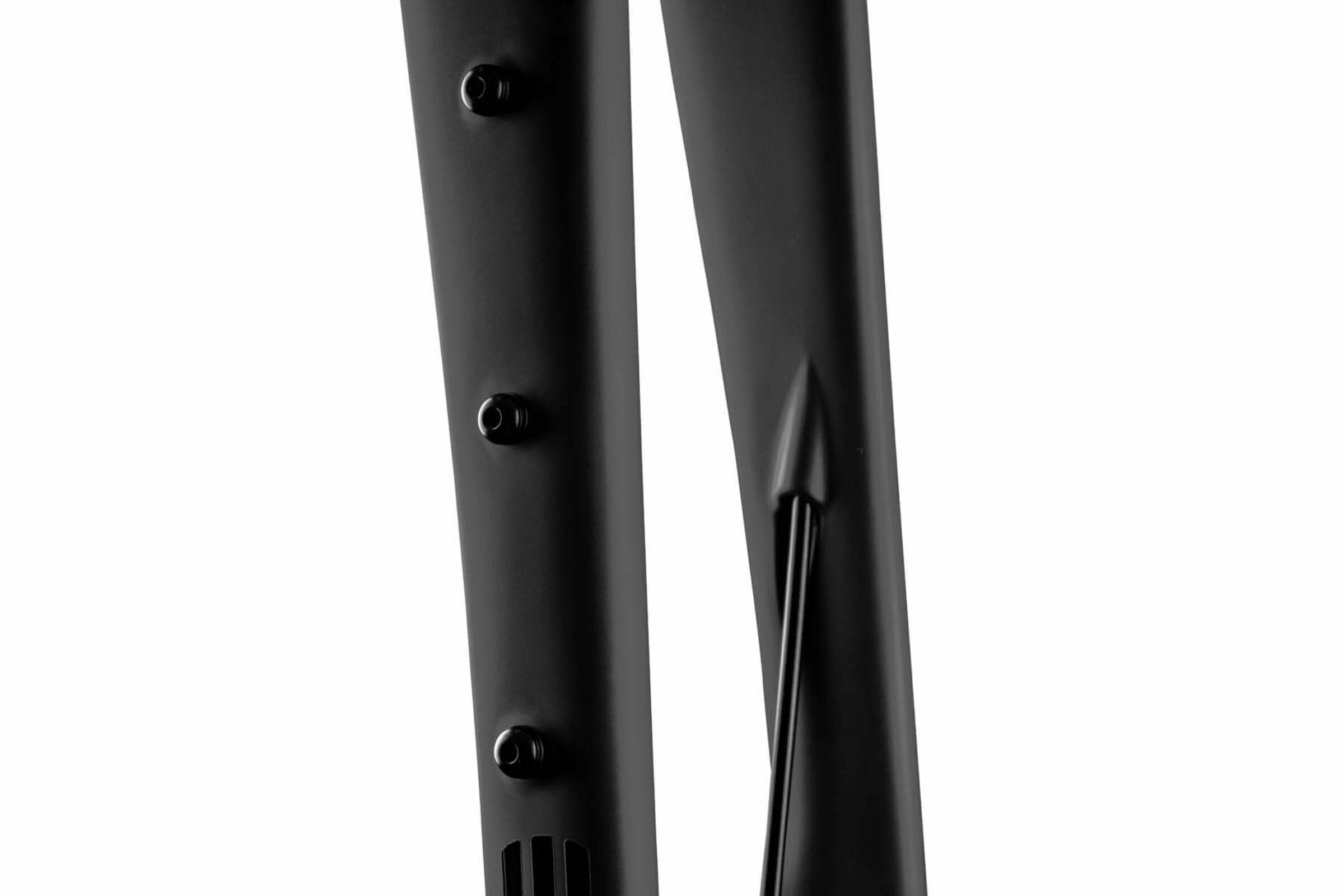

- Internal Dynamo Routing for Lights and Electronics Charging
- Axle Spacing 12 x 100mm
- Compatible Rotor Sizes 140mm & 160mm
- 700 x 50mm Tire Clearance
- Material - Carbon
- Accessory Mounts - Yes (m5 bolts)
- Weight - 575g
- Steerer Tube Length - 350mm
- Steerer Tube Taper - 1.125″ to 1.5″
- Rake - Adjustable – 49mm / 55.5mm
- Axle to Crown - 398mm(49mmRake) / 406(55.5mmRake)
- Brake - Disc
- Brake Mount - Flat Mount
- Low Mount Rack Mount Capacity - 18kg, 40lbs
- Front Mount Rack Capacity - 6kg per side (2kg per 3 bolts)
- Axle Compatibility - 12mm
- Rotor Sizes - 140mm / 160mm
- Max Tire Clearance - 29x2x1 / 700x53 / 27.5x2.449mmRake) / 29″ x 2.3″ (700×58) / 27.5″ x 2.6″(55.5mmRake)
- Torque Spec: Steerer Tube - 5.5nm
- Torque Spec: Axle - 8nm
