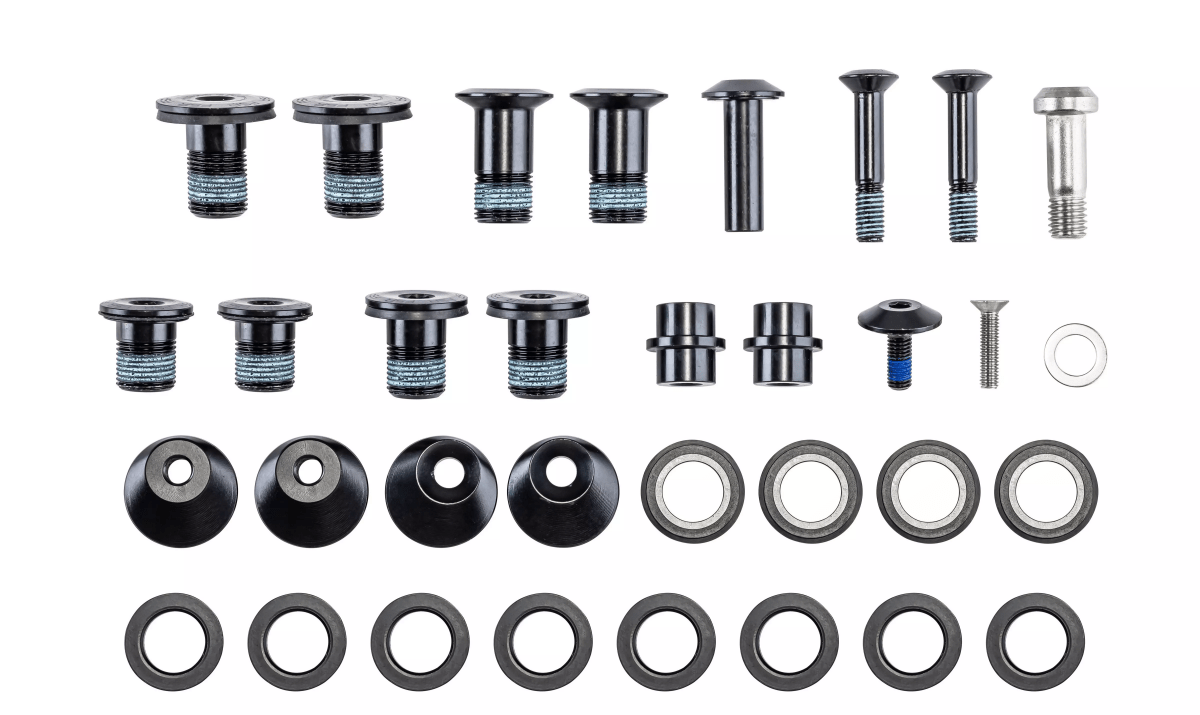

Specialized Turbo Levo SL Gen 2 Carbon Suspension Pivot Hardware Kit

Suspension Pivot Bolt Kit – Specialized Turbo Levo SL Gen 2 Carbon (2022–2025)

This complete suspension pivot bolt and hardware kit is designed for Specialized Turbo Levo SL Gen 2 Carbonbikes. It includes all required bolts, axles, spacers, and the geometry-adjust flip chip, making it ideal for full suspension service or hardware replacement. All components meet factory specifications for proper fit, torque, and durability.

Kit Contents & Torque Specifications

Main Pivot

• Drive-side main pivot bolt:

  • Reverse thread

  • 12mm W × 20mm L – Alloy

  • Torque: 210 in-lbf (24 Nm) – 1 pc

• Non-drive-side main pivot bolt:

  • 12mm W × 20mm L – Alloy

  • Torque: 210 in-lbf (24 Nm) – 1 pc

Shock Link Hardware

• Shock link to seat tube pivot bolts:

  • 12mm × 17mm L – Alloy

  • Torque: 180 in-lbf (20 Nm) – 2 pcs

• Shock link to shock extension pivot bolts:

  • 12mm W × 14mm L – Alloy

  • Torque: 210 in-lbf (24 Nm) – 2 pcs

• Shock link to seatstay pivot bolts:

  • 12mm × 27mm – Alloy

  • Torque: 180 in-lbf (20 Nm) – 2 pcs

Horst Link

• Horst link pivot bolts:

  • 6mm W × 32mm L – Steel

  • Torque: 90 in-lbf (10 Nm) – 2 pcs

Shock Eye Hardware

• Forward shock eye axle:

  • 8mm W × 26.5mm L – Steel – 1 pc

• Forward shock eye bolt:

  • 8mm W (M5 thread) × 11mm L – Steel

  • Torque: 49 in-lbf (5.5 Nm) – 1 pc

• Rear shock eye bolt:

  • 8mm W × 28mm L – Steel

  • Torque: 180 in-lbf (20 Nm) – 1 pc

Additional Components

• Geometry adjust flip chip

• All required spacers

• Refer to frame schematic for exact placement

OEM Compatibility

• 2022 S-Works Turbo Levo SL LTD

• 2023 S-Works Turbo Levo SL 2 Carbon

• 2023 S-Works Turbo Levo SL 2 LTD

• 2023 Turbo Levo SL 2 Comp Carbon

• 2023 Turbo Levo SL 2 Expert Carbon

• 2023 Turbo Levo SL 2 Pro Carbon

• 2024 S-Works Turbo Levo SL 2 Carbon

• 2024 Turbo Levo SL 2 Comp Carbon

• 2024 Turbo Levo SL 2 Expert Carbon

• 2024 Turbo Levo SL 2 Pro Carbon

• 2025 S-Works Turbo Levo SL 2

• 2025 S-Works Turbo Levo SL 2 LTD – FOX DHX Live Valve Neo

• 2025 Turbo Levo SL 2 Comp

• 2025 Turbo Levo SL 2 Expert

• 2025 Turbo Levo SL 2 Pro

• 2025 Turbo Levo SL 2 Öhlins Coil

A complete OEM-spec hardware solution for restoring suspension integrity, alignment, and geometry adjustment on Turbo Levo SL Gen 2 Carbon frames.
