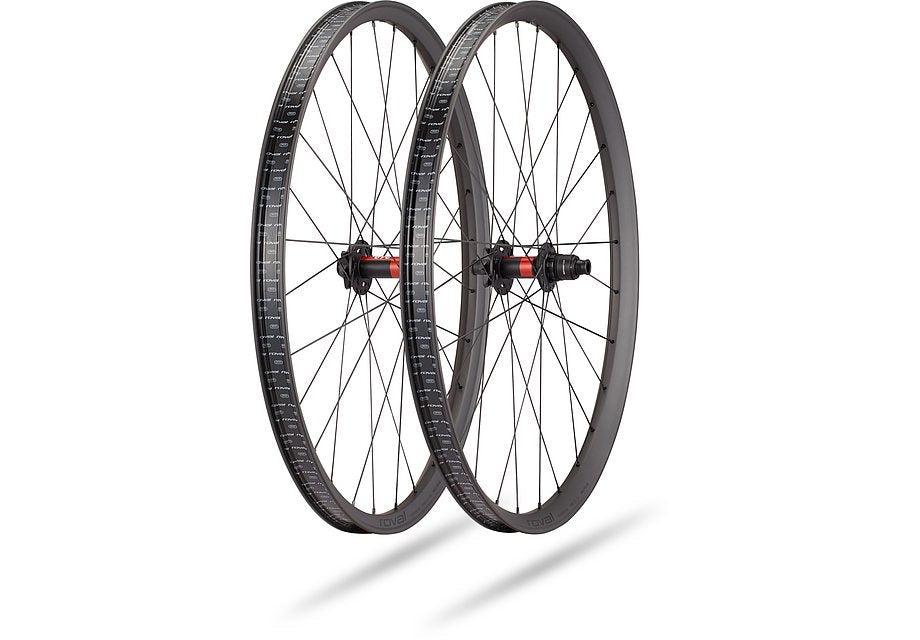

Roval Traverse HD 240 Hub 6B Carbon Wheelset

Overview

The 2026 Roval Traverse HD 240 is built for riders who demand maximum strength, precision handling, and pinch-flat resistance on aggressive terrain. Designed for enduro racing, bike park laps, and hard-charging trail riding, this carbon wheelset blends impact durability with control-enhancing compliance.

With a DT Swiss 240 hub featuring Ratchet EXP 36t internals and Roval’s reinforced asymmetric carbon rim profile, the Traverse HD delivers confident tracking, fast engagement, and long-term reliability in severe terrain.

Built for Severe Terrain

• Strongest Roval carbon trail rim to date

• Front and rear specific carbon layups

• Asymmetric rim design with offset spoke drilling

• Zero bead hook design (hookless)

• Compatible with tire inserts

The optimized "Flat Top" bead profile requires 85% more force to pinch flat compared to traditional round bead rims—virtually eliminating snake bites.

Precision & Engagement

• DT Swiss 240 hubs

• Ratchet EXP 36t internals (10° engagement)

• J-bend spoke configuration

• Hand-built construction

High torsional stiffness keeps the wheel tracking precisely through high-speed corners while maintaining grip in rough terrain.

Roval ThreadBed Valve System

The integrated ThreadBed Valve eliminates compression nuts and air loss from rim flex while simplifying tubeless setup and reducing sealant clogs.

Rim Specifications

• Material: Carbon

• Depth: 24mm

• External Width: 40mm

• Internal Width: 30mm

• Bead Width: 5mm

• Design: Asymmetric, hookless

• Brake Type: Disc (6-Bolt)

• Tire Compatibility: 2.3"–2.6"

• Max Pressure: 40 PSI

Hub Specifications

• Hub Model: DT Swiss 240

• Axle Spacing: 110x15mm (Front), 148x12mm (Rear)

• Freehub: SRAM XD (convertible)

• Bearings: DT Swiss sealed steel cartridge

• Engagement: 36t Ratchet EXP

Weight

• Wheelset: 1,706g

• Front: 768g

• Rear: 938g

(Includes tubeless tape and valve)

Included

• Tubeless rim tape installed

• 37mm threaded tubeless valve stems

• Spare spoke and nipple kit

• 31mm DT endcaps

Warranty

• Lifetime warranty (registration required within 90 days)

• 2-Year No-Fault Crash Replacement (USA only, registration required)

• System weight limit: 275lbs / 125kg

Color

Satin Carbon / Gloss Black

Intended Use

• Enduro racing

• Aggressive trail riding

• Bike park

• Technical terrain

Why It Matters

The Traverse HD 240 wheelset is engineered for riders pushing the limits. With reinforced carbon construction, advanced bead protection, and premium DT Swiss internals, it delivers durability and control where it matters most—when the terrain gets rough.
