Specialized Enduro Carbon Suspension Pivot Hardware Kit
Factory OEM | Complete Pivot Bolts & Spacers | 2020–2025 Enduro | S194200052
The Specialized Factory Replacement Suspension Pivot Hardware Kit is a genuine OEM bolt-and-spacer set for compatible 2020–2025 Specialized Enduro Carbon frames.
Originally specified for the 2020 Enduro FSR platform, this comprehensive kit includes the main pivot hardware, linkage pivot bolts and nuts, Horst-link hardware, shock-eye mounting hardware, and the associated pivot spacers required for a full suspension pivot hardware service.
Available from Stage 21 Bikes, your trusted source for hard-to-find Specialized OEM replacement parts.
Key Features
- Genuine Specialized factory OEM suspension hardware
- Designed for compatible 2020–2025 Enduro Carbon frames
- Complete suspension pivot bolt and spacer kit
- Includes main pivot axle and wedge
- Includes upper, mid, and lower linkage hardware
- Includes Horst-link pivot bolts
- Includes front and rear shock-eye mounting hardware
- Combination of alloy and steel fasteners
- Includes all associated pivot spacers
- Specialized MPN S194200052

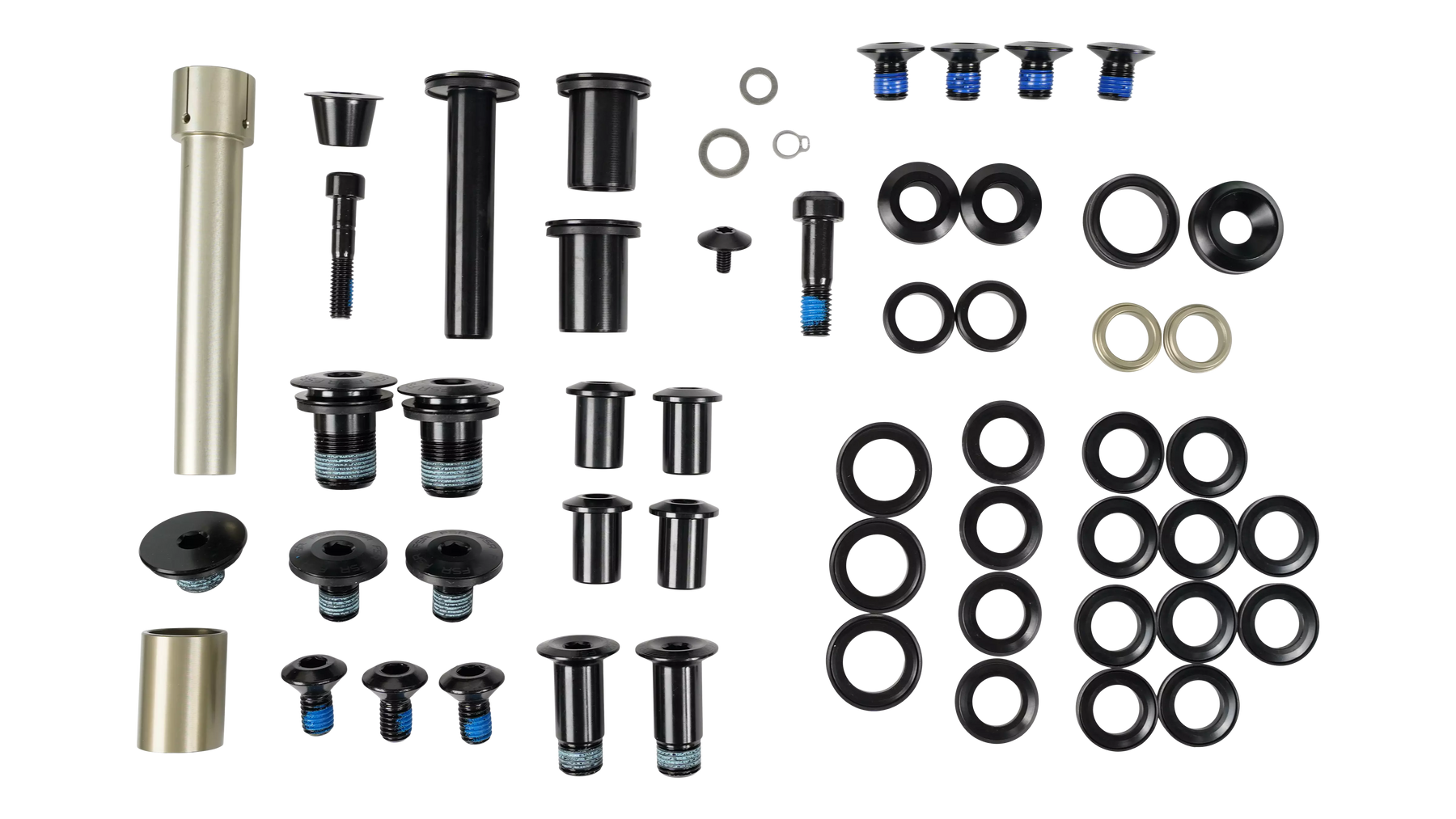

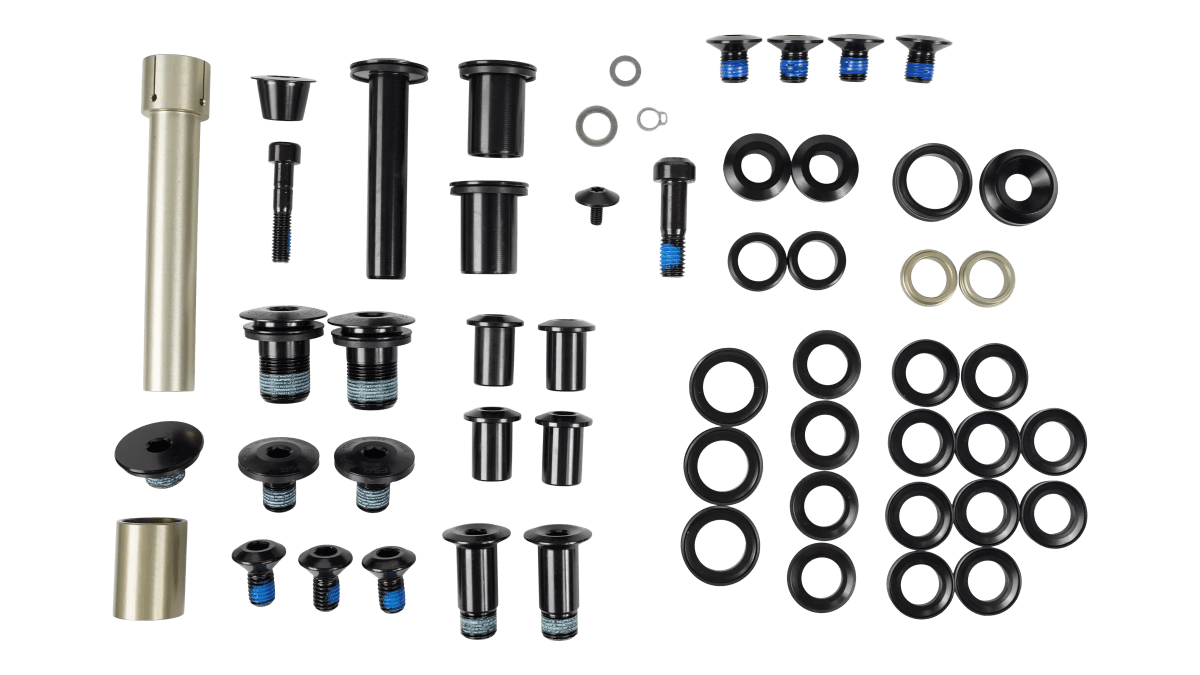

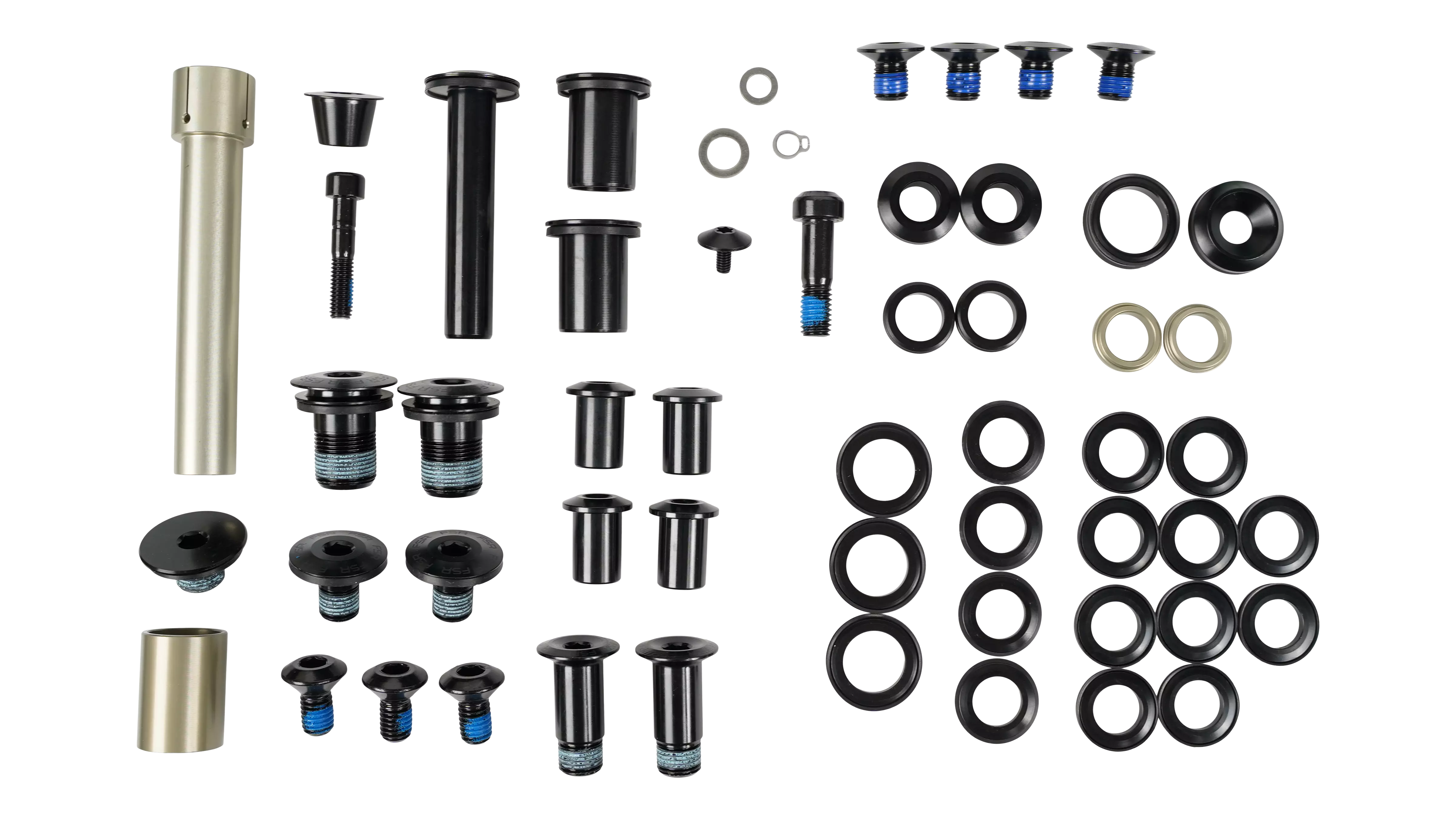

Kit Includes
| Component | Specification | Material | Qty. |
|---|---|---|---|
| Main Pivot Non-Drive-Side Bolt | M12 × 1 × 18.5mm | Alloy | 1 |
| Main Pivot Drive-Side Bolt | M6 × 1 × 30mm | Steel | 1 |
| Main Pivot Axle | 99.4mm Length | Alloy | 1 |
| Main Pivot Drive-Side Wedge | — | Alloy | 1 |
| Mid Link to Lower Link / Rear Shock Eye Bolt | M8 × 1.25 × 16mm | Steel | 1 |
| Mid Link to Lower Link / Rear Shock Eye Nut-Axle | M8 × 1.25 × 61mm | Alloy | 1 |
| Upper Link to Mid Link / Seatstay Pivot Bolts | M9 × 1 × 14mm | Alloy | 4 |
| Upper Link to Mid Link / Seatstay Pivot Nuts | M9 × 1 × 17.5mm | Alloy | 4 |
| Upper Link to Seat Tube Pivot Bolts | M15 × 1 × 20mm | Alloy | 2 |
| Horst Link Pivot Bolts | M11 × 1 × 30mm | Alloy | 2 |
| Forward Shock Eye Bolts | M10 × 1 × 14mm | Alloy | 2 |
| Rearward Shock Eye Bolt | M8 × 1.25 × 29mm | Steel | 1 |
| Pivot Spacers | Complete Set | Various | Included |
Specifications
| Specification | Details |
|---|---|
| Brand | Specialized |
| Component | Suspension Pivot Hardware Kit |
| Application | Enduro Carbon |
| Model Years | 2020–2025 |
| Hardware | Pivot Bolts, Nuts, Axles, Wedge & Spacers |
| Materials | Alloy & Steel |
| Geo-Adjust Flip-Chip | Sold Separately |
| MPN | S194200052 |
Important Separate Part
The Geo-Adjust Flip-Chip is not included with this kit.
Sold separately as:
Specialized Geo-Adjust Flip-Chip – S189900096
OEM Compatibility
2025
- S-Works Enduro Frameset
- Enduro Pro
- Enduro Comp
2024
- S-Works Enduro Frameset
- Enduro Expert
- Enduro Comp
2023
- S-Works Enduro Frameset
- Enduro Expert
- Enduro Comp
2022
- S-Works Enduro LTD
- S-Works Enduro Frameset
- S-Works Enduro
- Enduro LTD
- Enduro Frameset
- Enduro Expert
- Enduro Comp
2021
- S-Works Enduro
- S-Works Enduro Frameset
- Enduro Frameset
- Enduro Expert
- Enduro Comp
2020
- S-Works Enduro Frameset
- S-Works Enduro
- Enduro Expert
- Enduro Elite
Installation Notes
- This kit includes numerous pivot fasteners with different diameters, thread pitches, lengths, and materials.
- Hardware should be installed in the exact factory locations shown in the applicable Specialized Enduro suspension schematic.
- The included pivot spacers should also be installed according to the factory schematic.
- Do not interchange alloy and steel fasteners between locations.
- Suspension pivot and shock mounting hardware should be tightened to the applicable Specialized service torque specifications.
- Inspect bearings and linkage components during installation and replace worn parts as required.
Compatibility Notes
- Designed for compatible 2020–2025 Specialized Enduro Carbon models.
- This kit is intended as a complete suspension pivot hardware service kit rather than an individual bolt replacement.
- Pivot bearings are not listed as included.
- The Geo-Adjust Flip-Chip S189900096 is sold separately.
- Verify Specialized MPN S194200052 against the frame or service documentation before ordering.
Complete Factory Pivot Hardware Service
Suspension linkage hardware is subjected to repeated impact loads, articulation, and frame movement. Worn, damaged, or incorrect hardware can affect pivot alignment and suspension performance.
Genuine Specialized S194200052 provides the factory-specified combination of pivot bolts, axles, nuts, wedge hardware, shock-eye fasteners, and spacers needed to service compatible 2020–2025 Enduro Carbon frames.
