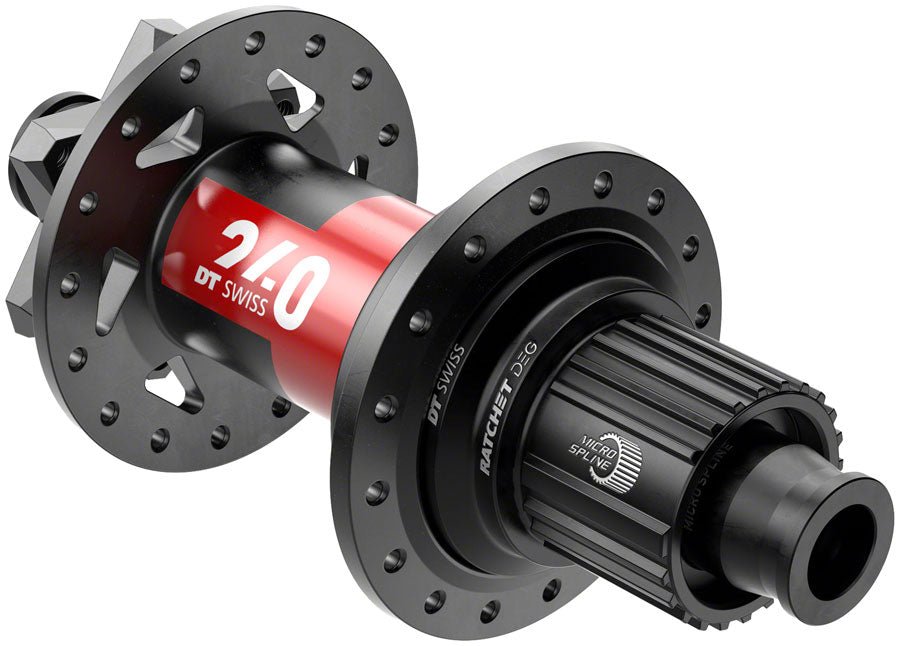

DT Swiss 240 DEG Rear Hub - 12 x 148mm 6-Bolt Micro Spline BLK/Red 28H 90pt
Quantity:
Pickup available at Stage 21 Bikes
Usually ready in 24 hours
DT Swiss 240 DEG Rear Hub - 12 x 148mm 6-Bolt Micro Spline BLK/Red 28H 90pt
Stage 21 Bikes
Pickup available, usually ready in 24 hours
23582 Moulton Parkway
#111
Laguna Woods CA 92637
United States
Choose options
Quantity:
Quantity:
The Ratchet DEG System was designed by taking a different angle than the common high engagement freehub systems to deliver a smaller engagement angle and maximized reliability. The simultaneous full engagement of the ratchets provides a larger contact patch than pawl hubs and thus a more balanced load distribution resulting in higher reliability. Two enlarged ratchets with 90 teeth offer the smallest engagement angle ever made in the DT Swiss portfolio. On the trail this transmits into a different angle in the backlash. The small idle distance at the cranks allows for more direct acceleration like out of corners as well as the possibility to adjust the pedal position faster like when overcoming obstacles on a technical uphill trail.Achieving a different engagement angle from what DT Swiss has done to date required a major adaptation to the drive side of the hub. The Ratchet DEG system and its new hub body allow the installation of size-optimized 90-tooth ratchets at 4 degrees Made of steel the DEG ratchets are bigger than all the previous DT Swiss ratchets and aim to transmit the power of even the strongest riders for a long time and across a large contact surface The innovative construction of the 240 DEG hub allows bearing replacement without special tools Approved for use with ebikes (max. 32Km/h or max. 250W)
| Rear Axle | 12mm Thru x 148mm |
| Cassette Body Type | Shimano Micro Spline |
| Color | Black/Red |
| Skewer Included | No |
| Bearing Type | Sealed Cartridge |
| Designed for ebike | Yes |
| Defined Color | Black |
| Spoke Interface | J-Bend |
| keyword search | Suggested Order |
| Hub Drilling | 28 |
| Hub/Brake Compatibility | 6-Bolt Disc |
| Axle Size | 12 X 148Mm |
