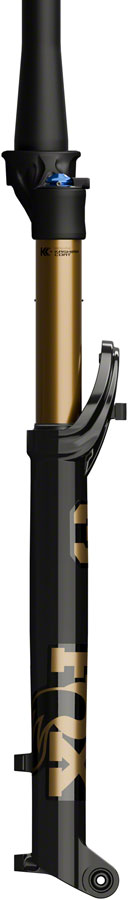

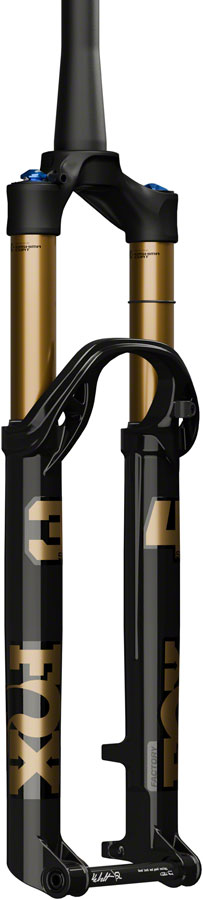

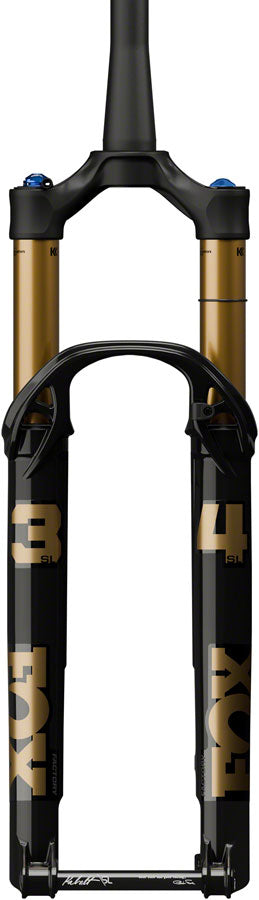

FOX 34 SL Factory Suspension Fork 29" 120mm GRIP SL Push-Lock Shiny Black

FOX 34 SL Factory Suspension Fork

29" | 120mm Travel | GRIP SL Push-Lock | Kashima | 910-21-367

The FOX 34 SL Factory is a lightweight 29er suspension fork built for modern XC and downcountry bikes that demand more travel, stiffness, and tire clearance without excessive weight.

This Factory Series version features Kashima-coated 34mm stanchions and the lightweight GRIP SL Push-Lock damper, providing remote-operated Open, Medium, and Firm compression modes for efficient climbing, fast transitions, and controlled descending.

Key Features

• Full-width 34mm chassis

• 120mm travel

• Lightweight Factory Series construction

• Kashima-coated upper tubes

• GRIP SL Push-Lock remote-operated damper

• Open, Medium, and Firm compression settings

• Remote sold separately

• Generative design-aided arch and crown

• 20mm increased bushing overlap compared with 34 SC

• Longer air spring with increased negative volume

• Double-butted damper-side stanchion

• Inboard Lower Leg Bypass Channels

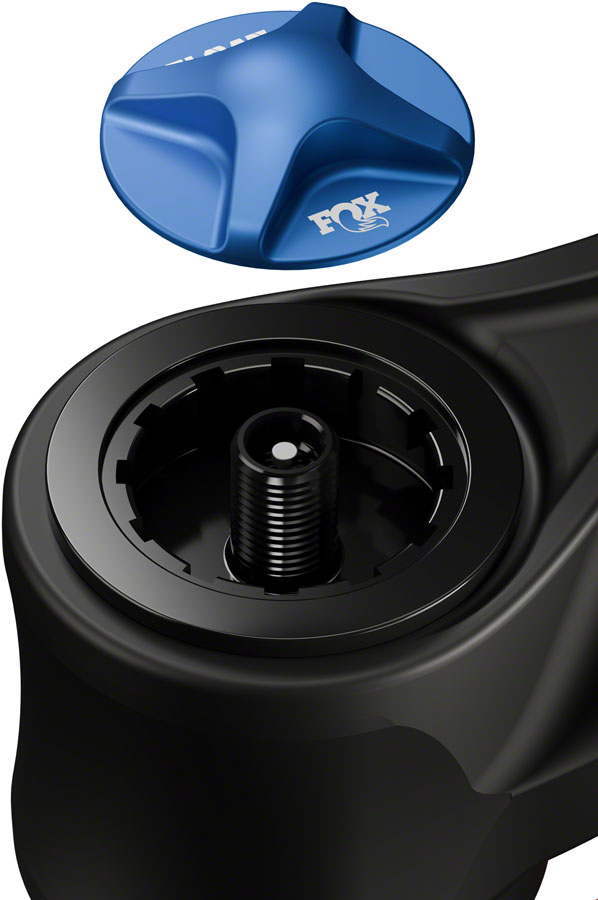

• Air spring top cap accepts a cassette tool for volume adjustment

• FOX part number 910-21-367

Specifications

Chassis & Suspension Design

Compared with the FOX 34 SC, the 34 SL uses a broader chassis layout with an aggressive arch and crown design engineered for increased stiffness and additional travel.

FOX specifies:

• 17% increase in stiffness

• 10mm increase in travel

• Only 3% increase in weight

• 20mm more bushing overlap for increased stiffness and reduced friction

• No increase in axle-to-crown length from the additional bushing overlap

The longer air spring and increased negative volume are designed to combine a supple initial stroke with supportive mid- and end-stroke performance.

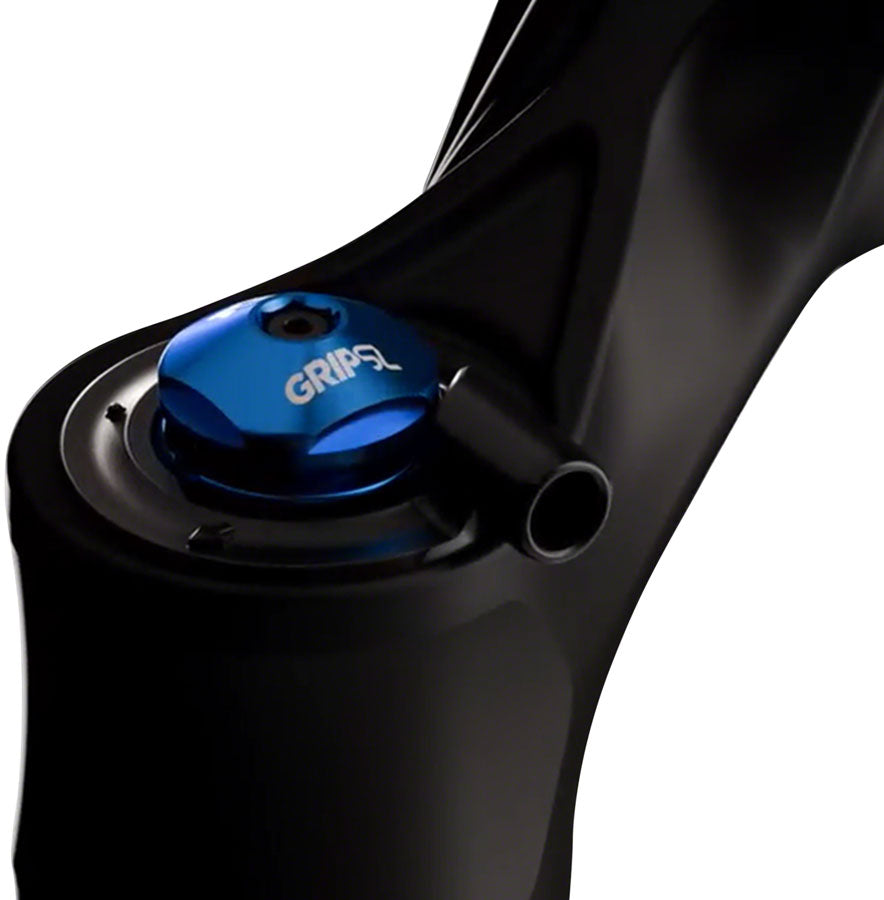

GRIP SL Push-Lock Damper

The lightweight GRIP SL Push-Lock damper is designed specifically for short-travel XC applications and provides three remotely controlled compression settings:

• Open

• Medium

• Firm

Remote control is sold separately.

Compatibility Notes

• Designed for 29" wheels.

• Uses 15 × 110mm Boost front axle spacing.

• Requires a compatible tapered steerer frame/headset.

• Brake interface is Post Mount 180.

• Maximum listed tire width is 63.5mm.

• Confirm axle, steerer, offset, brake mount, travel, and axle-to-crown requirements before ordering.

• Verify FOX part number 910-21-367 for exact configuration.

The FOX 34 SL Factory GRIP SL Push-Lock 29" fork combines low weight, increased chassis stiffness, 120mm travel, and remote-controlled compression for modern XC and downcountry bikes.
