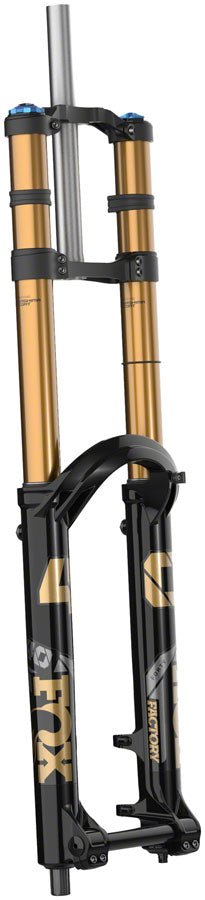

Fox Shox 40 Factory Fork (MY26) 27.5" 48r 203 Grip X2 >
Pickup currently unavailable at Stage 21 Bikes
Fox Shox 40 Factory Fork (MY26) 27.5" 48r 203 Grip X2 >
Stage 21 Bikes
Pickup currently unavailable
23582 Moulton Parkway
#111
Laguna Woods CA 92637
United States
Choose options
Target locked on the top step of the podium and developed in the crucible of World Cup competition the 40 is the definitive DH race fork. FOX's GRIP X2 is the most tunable supportive and smoothest descent-focused damper they've created ensuring the 40 stays planted in the hot seatGRIP X2 is the most tunable supportive and smoothest descent-focused damper FOX has created Riders reap the benefits of sitting higher in the travel while tires stay glued to the ground cornering with increased traction and experience reduced fatigue Lower leg bleeders allow atmospheric pressure equalization at the push of a button and the bypass channels increase volume to alleviate pressure ramping as the fork moves through its travel for better fork performance by increasing small bump sensitivity and responsiveness The lower leg arch design of the 40 maximizes strength and steering stiffness for downhill performance while adding no unnecessary weight Fitted with the proven and reliable FLOAT EVOL air spring Floating thru axle allows perfect chassis alignment and reduces unwanted friction between the upper and lower fork legs providing much smoother suspension movement throughout the entire range of travel Kashima Coating on upper tubes for added durability
| Steerer Type | Straight |
| Lockout Switch | Crown |
| Brake Type | Post Mount 203 |
| Negative Spring | Air |
| Travel (mm) | 203 |
| Offset | 48 |
| Axle to Crown Length | 585.6 |
| Front Axle | 20mm Thru x 110mm Boost |
| Maximum Tire Width | 63 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Shiny Black |
| Crown Race | 30 |
| Wheel Size | 27.5" |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Air |
| keyword search | FOX MY25 |
| Stanchion Diameter | 40 |
| Steerer Tube Length (mm) | 272 |
