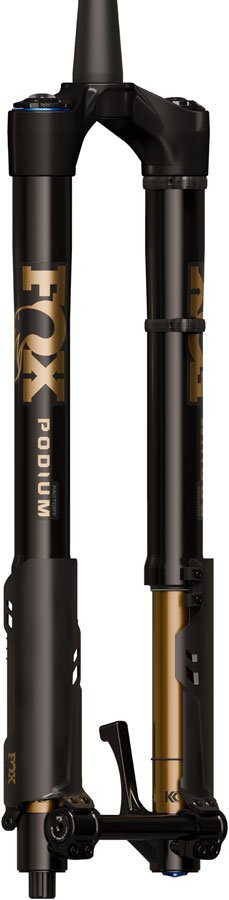

New FOX Podium Inverted Fork 29in 170mm 20TA X110 44mm Offset GRIP X2 Black Gold

Engineered for unforgiving descents technical race lines and the world's most demanding riders FOX introduces Factory Podium Inverted a new benchmark in single crown fork performance. Delivering exceptional fore-aft rigidity ultra-smooth travel and DH-style confidence Podium brings an unfair advantage to enduro racers and all-mountain riders alike. Podium is designed to be ridden like a downhill fork. No barriers. No hesitation. Complete confidence that your front wheel will hold the line no matter how fast—or how big—you push it. All this while keeping your bike in a familiar range of travel and geometry in a single crown package. Fox designed this inverted fork to get the absolute maximum performance out of the industry leading GRIP X2 damper with every possible gain for smoothness in its travel and confidence-inducing fore-aft rigidity in the chassis. Welcome to the Unfair Advantage. Welcome to Podium.

To take full advantage of a damper’s capabilities FOX engineers pursued the optimal design to provide ultra-low friction under load by turning the traditional fork design on its head with an inverted chassis providing unmatched damping sensitivity when combined with the award-winning Grip X2 damper

At the core of Factory Podium Inverted is uncompromising fore-aft stiffness made possible by oversized 47mm upper tubes and a generatively-designed crown structure allowing riders to hold precise lines with total confidence—even at downhill speeds

To further increase torsional stiffness FOX replaced the standard 15mm axle with a steel 20 x 110mm Boost DH axle distributing forces more evenly across the lower leg interface

175mm of bushing overlap is 32% more than the 38 and even 7% more than the FOX 40 to deliver an unbeatable chassis stiffness and reduced friction under heavy loads

The FLOAT EVOL GlideCore air spring designed with built-in lateral and axial compliance allows the spring to flex with the fork under high loads reducing binding and stiction for a smoother ride feel improved small bump sensitivity and better control when the terrain gets wild

Specially tuned GRIP X2 damper known for its four-way adjustability and race-proven control offers enhanced compression damping to match the fork’s reduced friction and slightly softened rebound to balance lower unsprung mass resulting in a damping curve designed for aggressive descending enduro competition and eMTB domination

Full oil immersion keeps seals constantly lubricated while gravity helps shed contamination and reduce friction

Kashima Coating on lower tubes for added durability

Steerer Type	Tapered
Lockout Switch	Crown
Brake Type	Post Mount 200
Negative Spring	Air
Travel (mm)	170
Offset	44
Axle to Crown Length	587
Front Axle	20mm Thru x 110mm Boost
Maximum Tire Width	66
S.H.I.S. Stem Clamp Diameter	28.6
Color	Black
Crown Race	40
Weight	2695
Wheel Size	29"
External Adjustments	Rebound Damping
Defined Color	Black
Positive Spring	Air
keyword search	FOX MY26
Stanchion Diameter	36
Steerer Tube Length (mm)	264
Travel Length	170Mm
Crown Size	68HT
