Cannondale Hollowgram Crank Arm Removal Tool

Cannondale Hollowgram Crank Arm Removal Tool

BB30 | KT013 | Two-Piece Extraction Tool

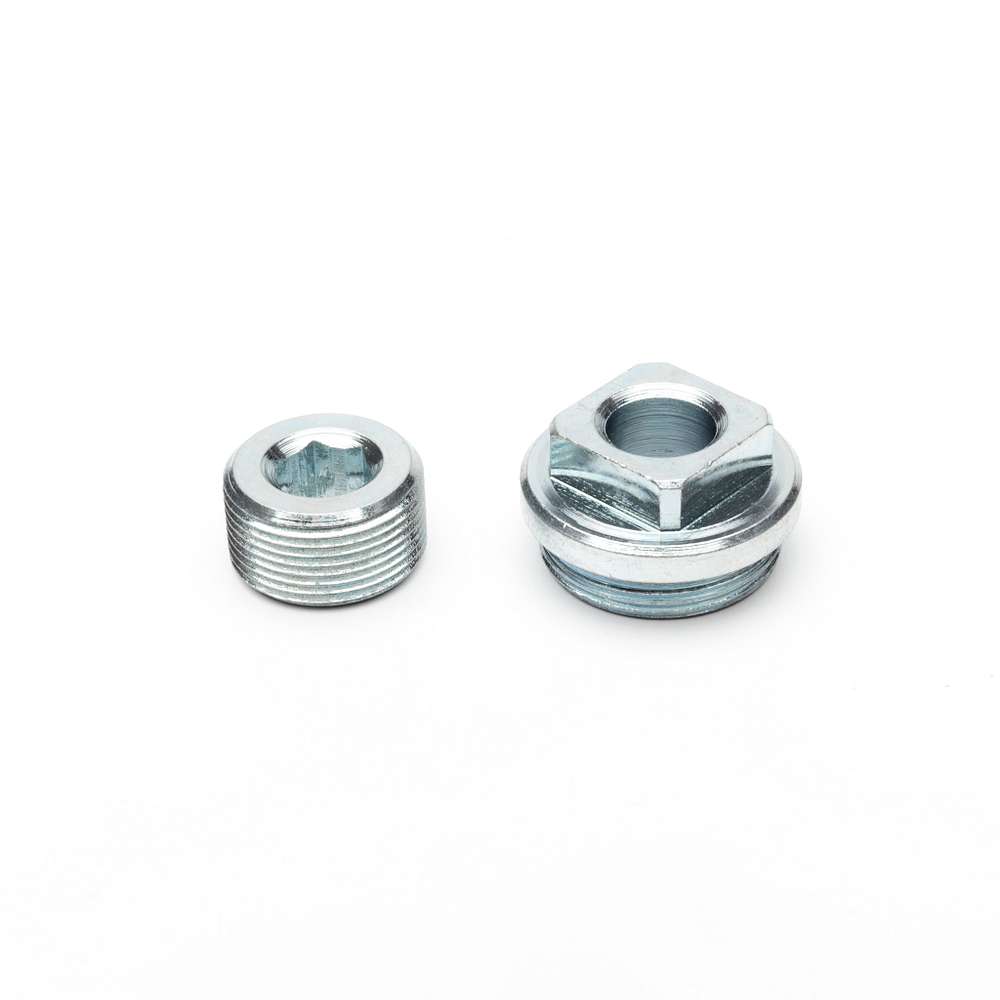

The Cannondale Hollowgram Crank Arm Removal Tool (KT013) is a precision two-piece extraction tool designed specifically for removing Cannondale Hollowgram and BB30 crankarms. Engineered for safe and controlled removal, it uses the spindle and crankarm threads to gently pull the arm free without damage.

Essential for servicing Cannondale System Integrated cranksets.

Designed for Hollowgram & BB30 Systems

• Required tool for removing Cannondale Hollowgram crankarms
• Compatible with BB30 spindle systems
• Designed for System Integrated cranksets

Two-Piece Extraction Design

• Inner tool threads into BB30 spindle
• Outer tool threads into crankarm
• Controlled separation of crankarm from spindle
• Prevents damage to crank or spindle threads

Safe & Controlled Removal

• Uses existing crank and spindle threads for leverage
• Eliminates prying or impact removal methods
• Ensures precise and repeatable service

Easy to Use

1. Remove crank bolt and washer
2. Thread inner tool into BB30 spindle (8mm hex required)
3. Thread outer tool into crankarm
4. Tighten outer piece
5. Use 8mm hex to slowly extract crankarm

Specifications

• Product: Hollowgram Crank Arm Removal Tool
• Compatibility: Cannondale Hollowgram / BB30 cranksets
• Design: Two-piece extraction tool
• Tool Requirement: 8mm hex wrench (not included)
• MPN: KT013

Ideal For

✔ Cannondale crank service
✔ BB30 crank removal
✔ Bike shop service tools
✔ Advanced home mechanics

Why Choose the Cannondale KT013 Tool?

• Required for Hollowgram crank removal
• Safe, controlled extraction process
• Prevents damage to crank and spindle
• OEM Cannondale service tool

The Cannondale Hollowgram Crank Arm Removal Tool (KT013) is the correct and safest way to remove Hollowgram crankarms — ensuring professional-level service without risking component damage.
