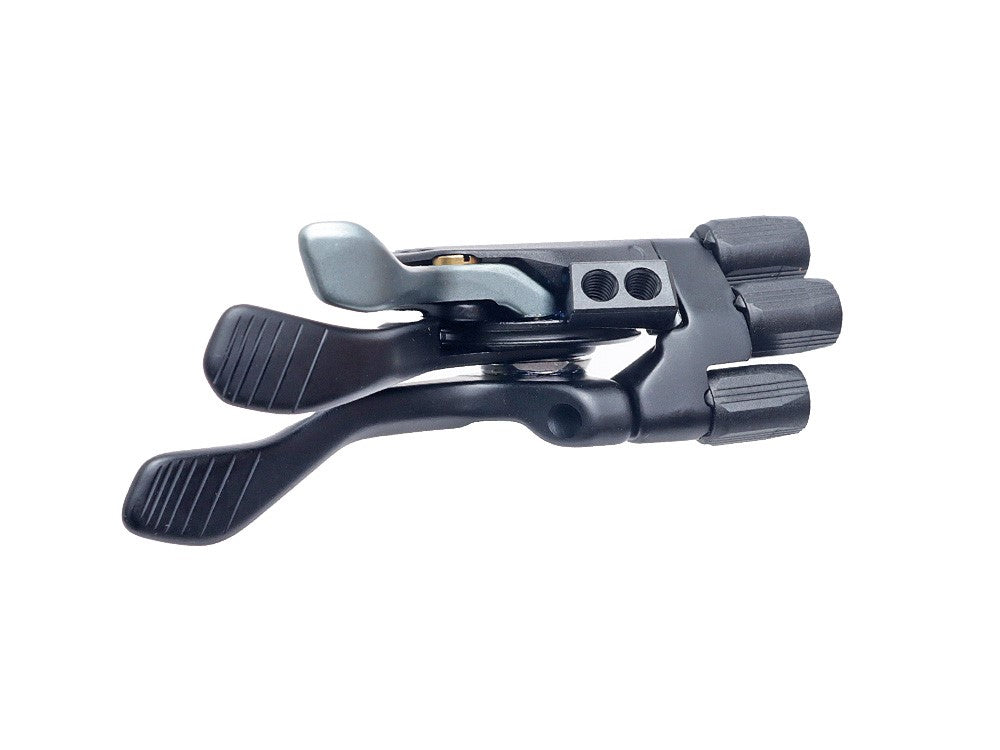

Scott TwinLoc 2 Downclamp + Seatpost Remote Lever

SCOTT remote control Twinloc Down Clamp for suspension fork, shock and seat post

TwinLoc system – a heirloom technology for Scott. This system is built around a custom ‘Nude’ rear shock (made by Fox, RockShox or X-Fusion), which along with the fork, is joined via a cable to a remote lever at the handlebar. This 3-position handlebar remote provides the rider with three distinct modes.

More technology on the bike also means more levers and buttons. The Scott remote control brings order to your cockpit. With this, suspension forks and dampers installed on Scott bikes from model year 2022 can be blocked and reactivated together at the push of a lever. A height adjustment of Vario supports is also integrated.
The cable recovery path of the lever is factory configured to a 3 position lockout with 7+7mm. However, a 2-pos lockout with 10mm pull-in travel is also possible or you can use spring elements that require 17mm.

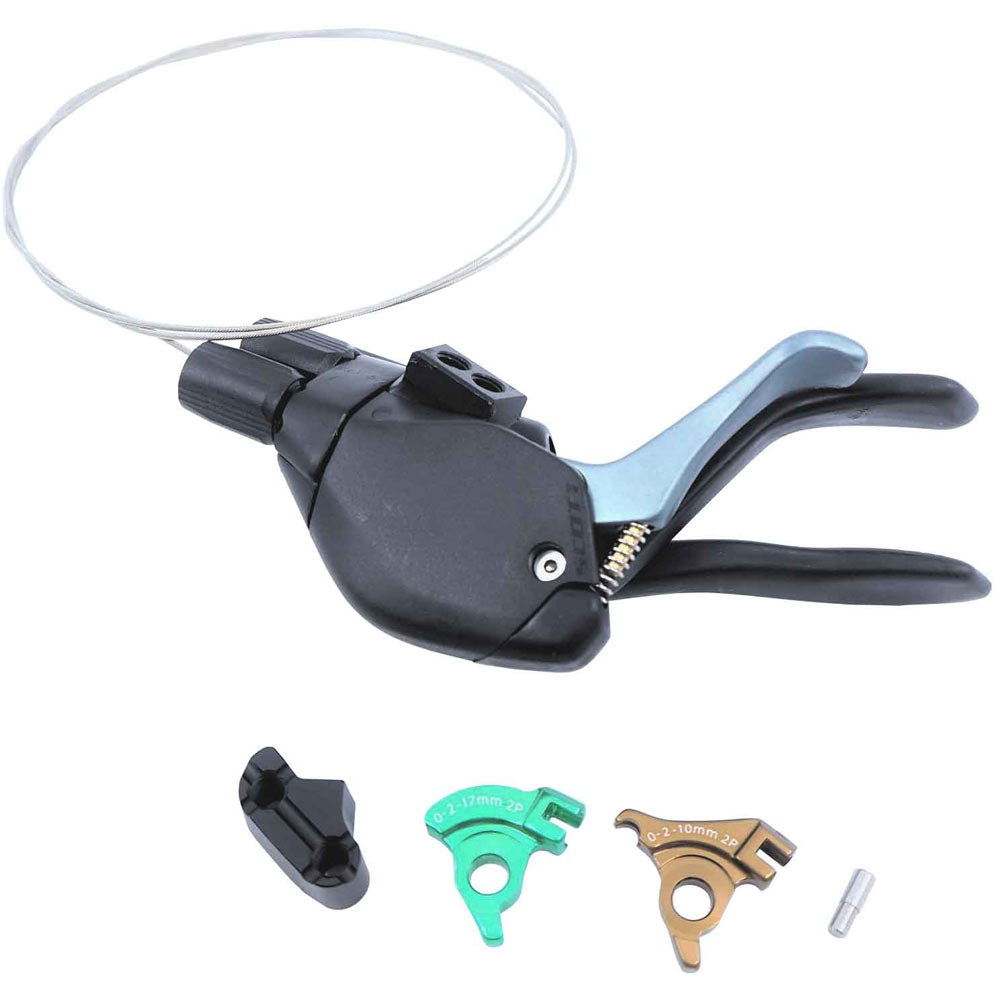

The pull-in path can be adjusted to different forks using the deflections included in the scope of delivery. The lever switches to a pure suspension lockout function without having to convert the dropper remote. All necessary parts are included.

• Modes: Descend – Both fork and shock are wide open / Traction Control – Rear shock limited in travel, compression damping increased in both fork and shock / Lockout – Both fork and shock are locked out
• TwinLoc w/ seat dropper lever activates the dropper post
• Genuine Scott replacement Twinloc Remote Lever
• Suitable for Scott bikes with a 1x drivetrain
• Integrated Twinloc / Seatpost Dropper
• Compatible with Fox Nude 3 rear shocks and forks with mechanical lockout
• Scott MPN 290009
