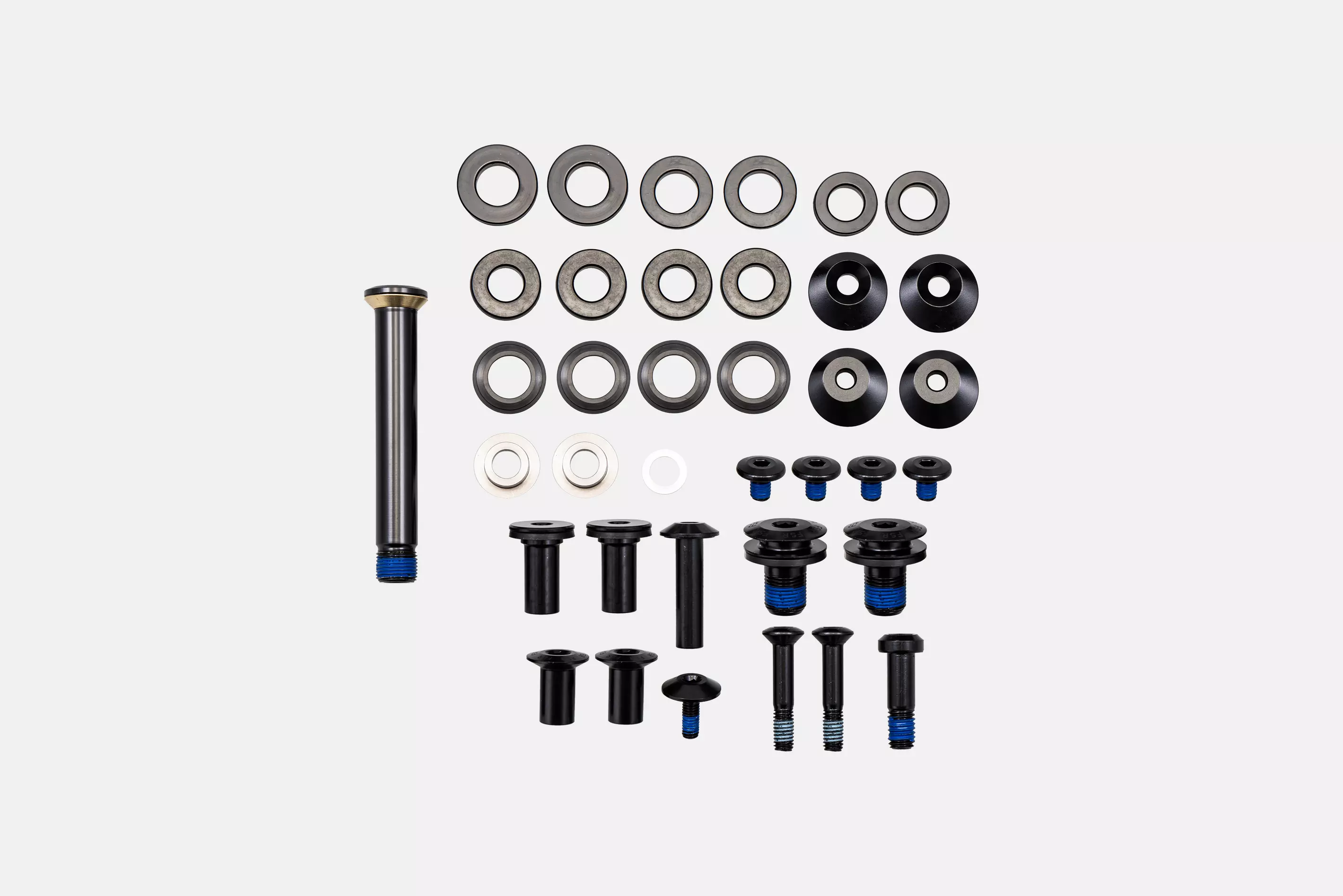

Specialized 2025+ Stumpjumper Carbon Suspension Pivot Bolt & Spacer Kit
Specialized 2025+ Stumpjumper Carbon Suspension Pivot Bolt & Spacer Kit
Stage 21 Bikes
23582 Moulton Parkway
#111
Laguna Woods CA 92637
United States
Factory Replacement Suspension pivot bolt kit for 2025 Stumpjumper S-Works & 15 Carbon bikes with all bolts and spacers.
• Main Pivot (Chainstay) Driveside Bolt: M12x1.0 x 88mm L - Alloy - Torque: 177 in-lbf (20Nm) - 1 pcs.
• Seatstay Horst Link Pivot Bolt: M6X1.0 x 32.5mm L - Steel - Torque: 89 in-lbf (10 Nm) - 2 pcs.
• Shock Link to Seat Tube Pivot Bolt: M12x1.0 x 17mm L - Alloy - Torque 177 in-lbf (20Nm) - 2 pcs.
• Shock Link to Shock Extension Pivot Axle: 10mm OD x 23mm L - Steel - Torque: 106.2in-lbf (12 Nm) - 2 pcs.
• Shock Link to Shock Extension Pivot Bolt: M6x1.0 x 8mm L - Steel - Torque: 106.2 in-lbf (12 Nm) - 2 pcs.
• Shock Link to Seatstay Pivot Axle: 10mm W x 19mm L - Steel - Torque: 106.2 in-lbf (12Nm) - 2 pcs.
• Shock Link to Seatstay Pivot Bolt: M6x1.0 x 8mm L - Steel - Torque: 106.2 in-lbf (12 Nm) - 2 pcs.
• Forward Shock Eye Bolt: M5x8.0 pcs. x 13.45mm - Steel - Torque: 49 in-lbf (5.5 Nm) - 1
• Forward Shock Eye Bolt: M5x8.0 pcs. x 13.45mm - Steel - Torque: 49 in-lbf (5.5 Nm) - 1
• Rear Shock Bolt: M8x1.25 x 27mm W - Steel - Torque 177 in-lbf (20 Nm) - 1 pcs.
