Specialized Epic 8 Rear Suspension Pivot Hardware Kit with Spacers

Specialized Factory Replacement Suspension Pivot Bolt Kit – Epic 8 (MY24+)

This Specialized factory replacement suspension pivot bolt kit includes all required bolts, axles, and spacers needed to service the rear suspension linkage on Epic 8 model bikes. Manufactured to exact OEM specifications, this kit ensures correct torque values, proper bearing preload, and long-term suspension durability.

Ideal for full linkage overhauls, crash repairs, or routine maintenance.

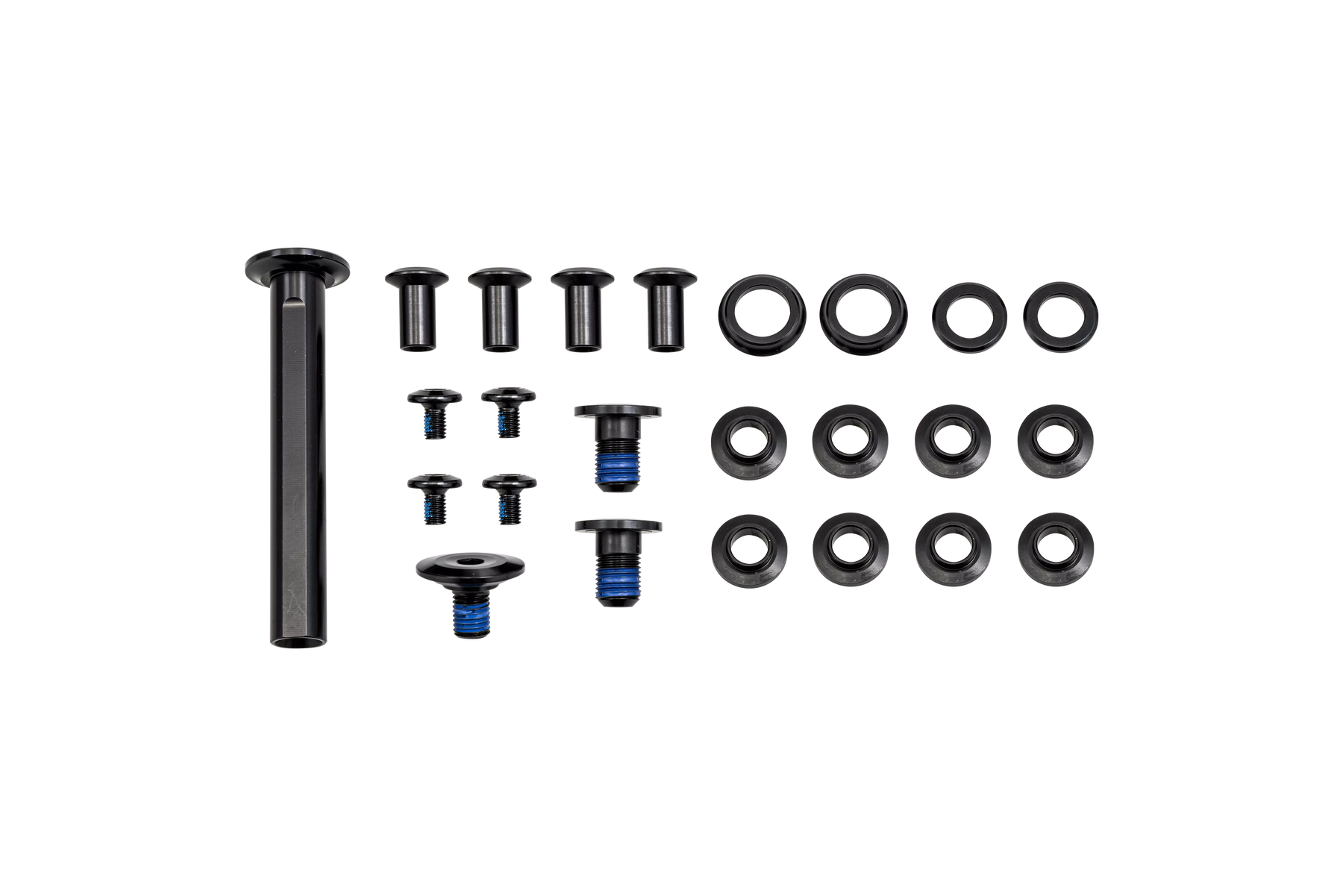

Kit Contents

• Main Pivot Axle: 12mm W × 81mm L – Alloy – 1 pc

• Main Pivot Bolt: 8mm W × 12.2mm L – Alloy

  • Torque: 89 in-lbf (10 Nm) – 1 pc

• Main Pivot Spacers: 12.1mm ID × 19.5mm OD × 3mm W – Alloy – 2 pcs

• Shock Link → Seat Tube Pivot Bolts:

  • 10mm W × 16mm L – Alloy

  • Torque: 89 in-lbf (10 Nm) – 2 pcs

• Shock Link → Seat Tube Pivot Spacers:

  • 10.1mm ID × 16.5mm OD × 2mm W – Alloy – 2 pcs

• Shock Link → Shock Extension Pivot Axles:

  • 8mm W × 17.23mm L – Alloy – 2 pcs

• Shock Link → Shock Extension Pivot Bolts:

  • 5mm W × 8mm L – Alloy

  • Torque: 53 in-lbf (6 Nm) – 2 pcs

• Shock Link → Shock Extension Pivot Spacers:

  • 8mm ID × 16.5mm OD × 2mm W – Alloy – 4 pcs

• Shock Link → Seatstay Pivot Axles:

  • 8mm W × 17.23mm L – Alloy – 2 pcs

• Shock Link → Seatstay Pivot Bolts:

  • 5mm W × 8mm L – Alloy

  • Torque: 53 in-lbf (6 Nm) – 2 pcs

OEM Compatibility

2026

• S-Works Epic 8 Frameset – RockShox SIDLuxe Ultimate

• S-Works Epic 8 EVO – Shimano XTR Di2 / FOX Factory

• S-Works Epic 8 EVO – SRAM XX SL AXS / RockShox Ultimate

• S-Works Epic 8 – Warranty Frame

• S-Works Epic 8 – SRAM XX SL AXS / RockShox Ultimate Flight Attendant

• Epic 8 Pro EVO Frameset – FOX FLOAT Factory

• Epic 8 Pro – SRAM X0 AXS / RockShox Ultimate Flight Attendant

• Epic 8 Expert – Shimano XT Di2 / RockShox Select+

• Epic 8 Expert – SRAM GX AXS / RockShox Select+

• Epic 8 EVO Pro – SRAM X0 AXS / FOX Factory

• Epic 8 EVO Expert – Shimano XT Di2 / FOX Performance Elite

• Epic 8 EVO Expert – SRAM GX AXS / FOX Performance Elite

• Epic 8 EVO Comp – SRAM S-1000 AXS / FOX Performance

• Epic 8 Comp – SRAM S-1000 AXS / RockShox Select

2025

• Epic 8 Pro – Warranty Frame

• Epic 8 Pro – SRAM X0 AXS / RockShox Ultimate

• Epic 8 EVO Expert – SRAM GX AXS / FOX Performance Elite

• Epic 8 EVO Comp – SRAM S-1000 AXS / FOX Performance

• Epic 8 Comp – SRAM S-1000 AXS / RockShox Select

2024

• S-Works Epic 8 Frameset – RockShox SIDLuxe Ultimate

• S-Works Epic 8 – Warranty Frame

• S-Works Epic 8 – SRAM XX SL AXS / RockShox Ultimate Flight Attendant

• Epic 8 Pro – Warranty Frame

• Epic 8 Pro – SRAM X0 AXS / RockShox Ultimate

• Epic 8 Expert – SRAM GX AXS / RockShox Select+

• Epic 8 EVO Pro Frameset – FOX FLOAT Factory

• Epic 8 EVO Pro – SRAM X0 AXS / FOX Factory

• Epic 8 EVO Comp – SRAM GX Eagle / FOX Performance

• Epic 8 Comp – SRAM GX Eagle / RockShox Select

Why Use the OEM Pivot Bolt Kit?

• Restores factory suspension alignment and torque accuracy

• Prevents bearing damage from worn or stretched hardware

• Essential for full suspension service or frame rebuilds

• Ensures quiet, smooth, and reliable rear suspension performance

A genuine Specialized OEM suspension hardware kit, engineered specifically for Epic 8 bikes to maintain race-level performance and long-term reliability.
