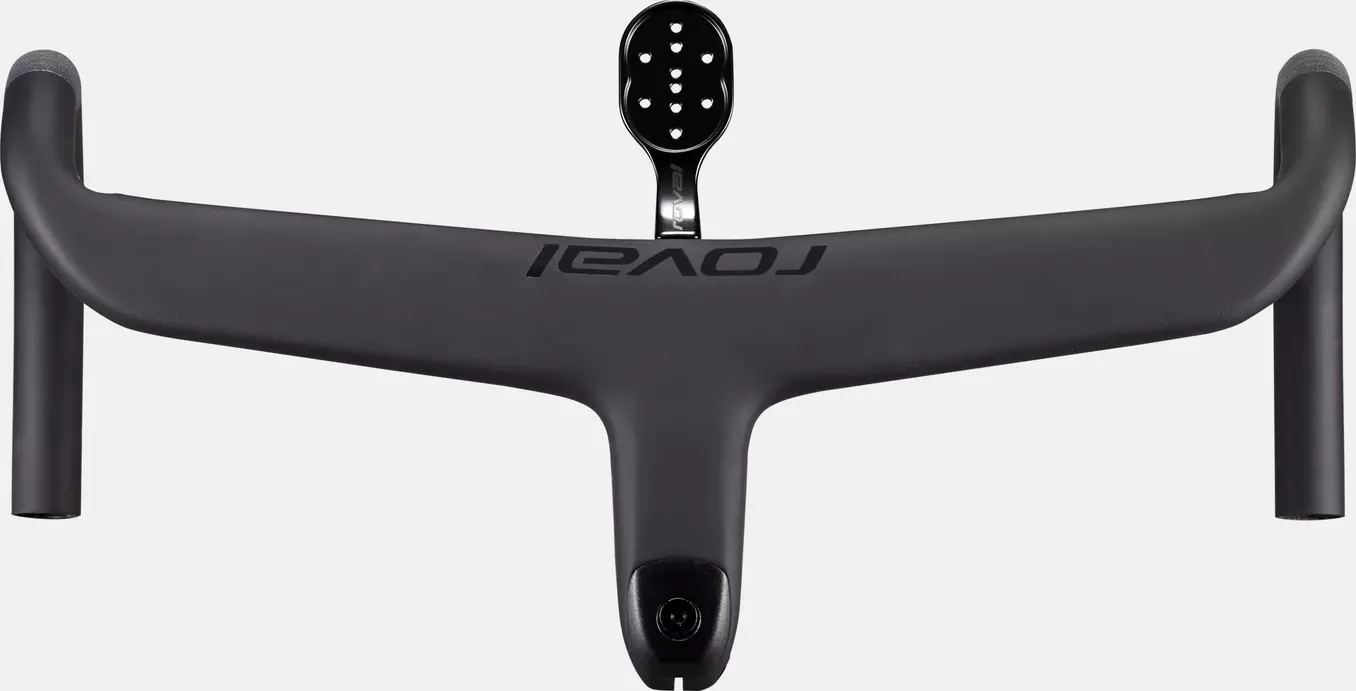

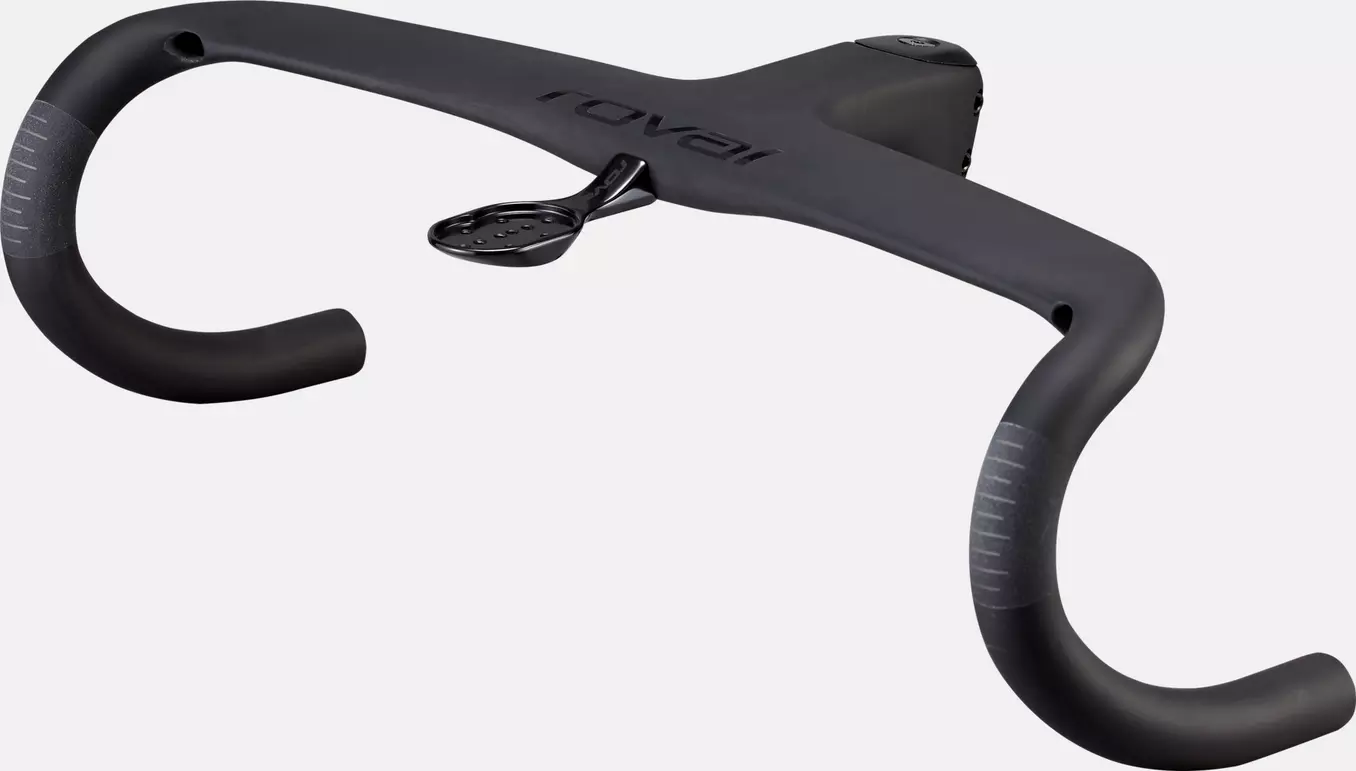

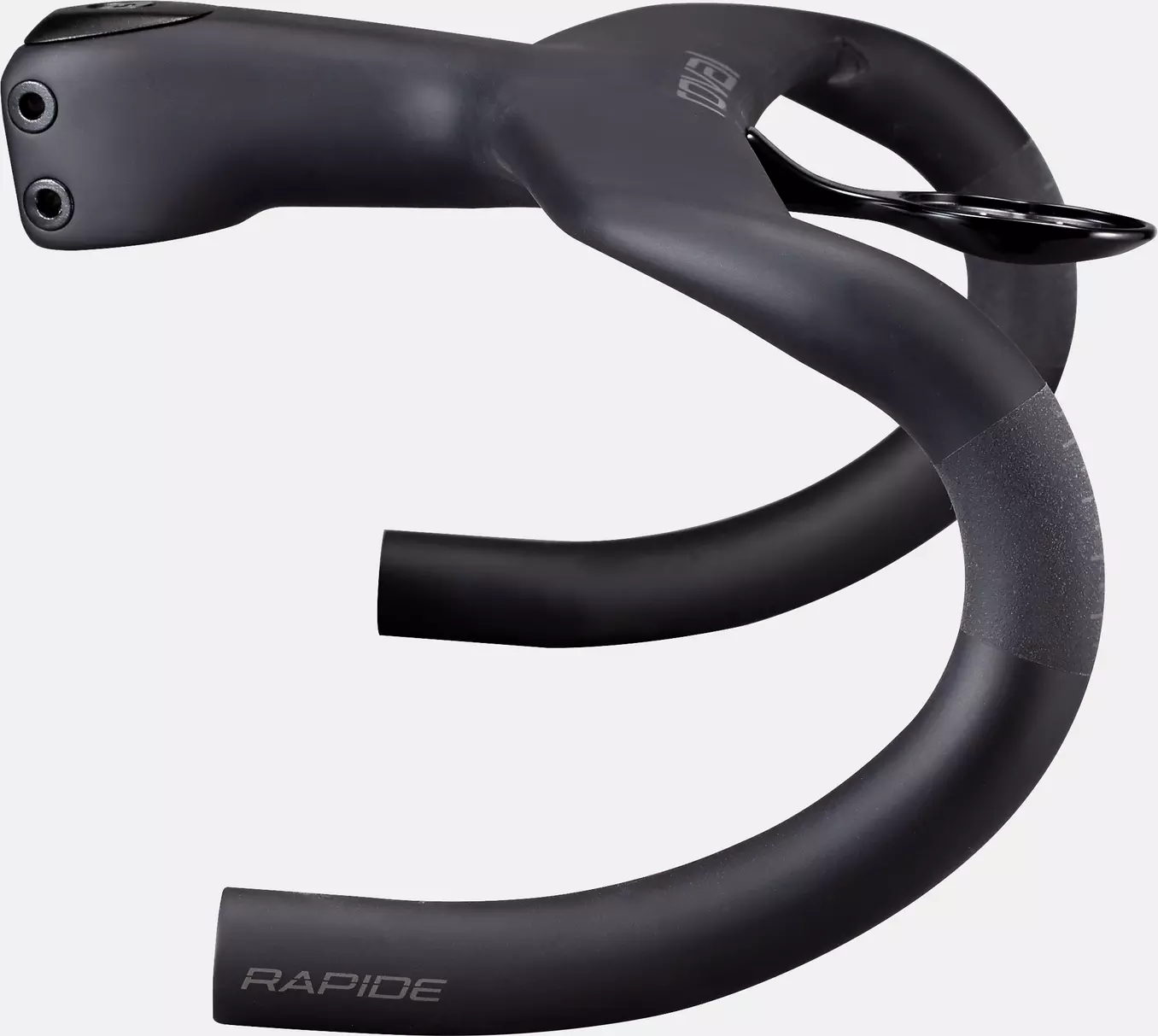

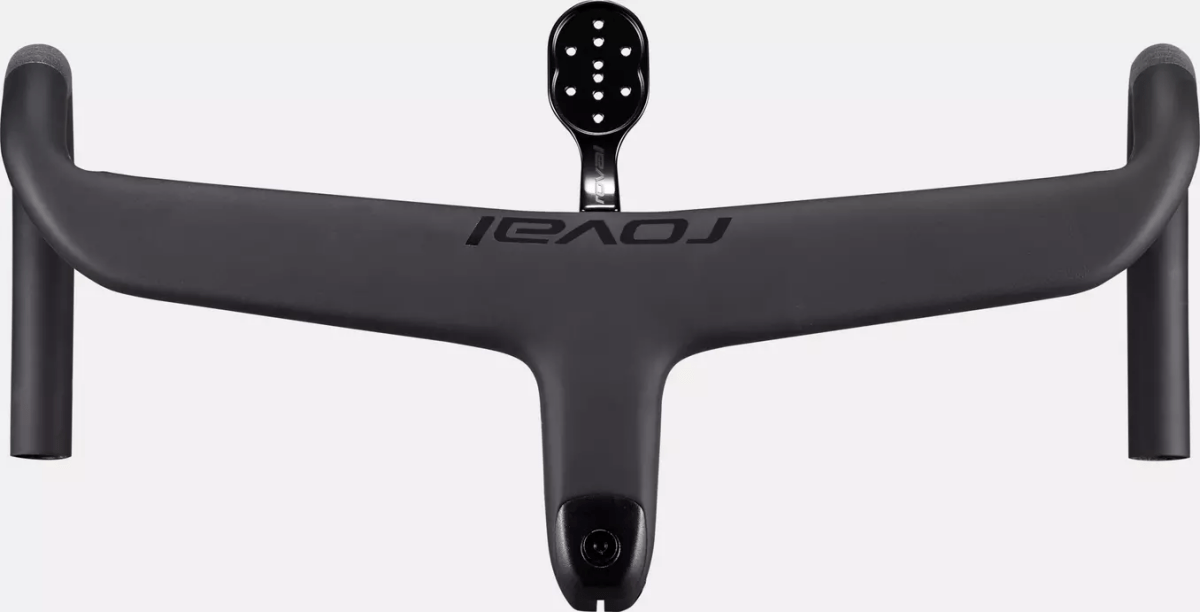

Specialized Roval Rapide One Piece Bar Stem Cockpit - 400x100mm

Specialized Roval Rapide One-Piece Cockpit – 400mm x 100mm

Aero. Integrated. Race-Proven.

The Roval Rapide One-Piece Cockpit is the fastest leading edge Specialized has ever made. By eliminating the traditional stem/bar hardware junction, Roval engineers created a single, uninterrupted airfoil shape that saves 4 wattsover the two-piece Rapide bar and Tarmac SL7 stem combination.

At race speeds, 4 watts equals a 32cm advantage in a 250m sprint — the difference between winning and throwing the bike at the line.

AERODYNAMIC ADVANTAGE

• Single airfoil leading edge

• Saves 4 watts vs traditional aero setups

• Optimized for clean-air performance

• Developed in the Win Tunnel and validated at World Tour speeds

Designed for solo breakaways, full-gas sprints, and everything in between.

LIGHT & STIFF

By removing the stem hardware cluster, the Rapide Cockpit is:

• 50g lighter than the two-piece Rapide + SL7 stem combo

• Constructed from Premium High Modulus Carbon Fiber

• Engineered for elite sprint stiffness

• Higher stiffness-to-weight ratio than any previous two-piece Roval system

Weight: 310g (100x420 reference)
(400x100mm model similar weight class)

FIT WITHOUT COMPROMISE

One-piece systems traditionally limit fit — not here.

• Designed alongside Retül fit experts

• 15 size combinations available

• Sculpted tops-to-drops radius for wrist clearance

• 4° flare for control and sprint leverage

This model:
✔ 400mm width
✔ 100mm stem length
✔ -6° stem angle

Compatibility & Build Notes

IMPORTANT INSTALL REQUIREMENT:
You must have at least 40mm of steerer tube above the last headset spacer for proper cockpit installation.

Cable Routing Compatibility:
✔ Shimano (Mechanical & Di2)
✔ SRAM (Mechanical & AXS)
✔ Campagnolo
✔ Internal / Electronic compatible

Specifications

• Material: High Modulus Carbon Fiber

• Stem Bolts: Titanium

• Width: 400mm (center-to-center)

• Stem Length: 100mm

• Drop: 127mm

• Reach: 75mm

• Flare: 4°

• Stem Angle: -6°

• Bar Clamp Diameter: 31.8mm

• Steerer Clamp Diameter: 1-1/8”

• Steerer Clamp Height: 40mm

• System Weight Limit: 275 lbs / 125 kg

Included

✔ Roval bolt-on computer mount (S219900058)

Optional Add-On:
• Tarmac SL7 headset transition spacer (S232500001)

Ideal For

✔ Tarmac SL7 builds
✔ High-end aero road bikes
✔ Race-focused builds
✔ Riders chasing marginal gains
✔ Sprint specialists & breakaway riders

Why Choose the Rapide Cockpit?

• 4-watt aerodynamic advantage
• Fully integrated, clean leading edge
• Lightweight high-mod carbon construction
• Race-proven stiffness
• Retül-developed fit geometry
• World Tour–validated performance

The Roval Rapide One-Piece Cockpit isn’t just lighter and faster — it’s engineered to win.
