Specialized Stumpjumper EVO Carbon Suspension Pivot Bolt Kit '21-'24
Specialized Stumpjumper EVO Carbon Suspension Pivot Bolt Kit '21-'24
Stage 21 Bikes
23582 Moulton Parkway
#111
Laguna Woods CA 92637
United States

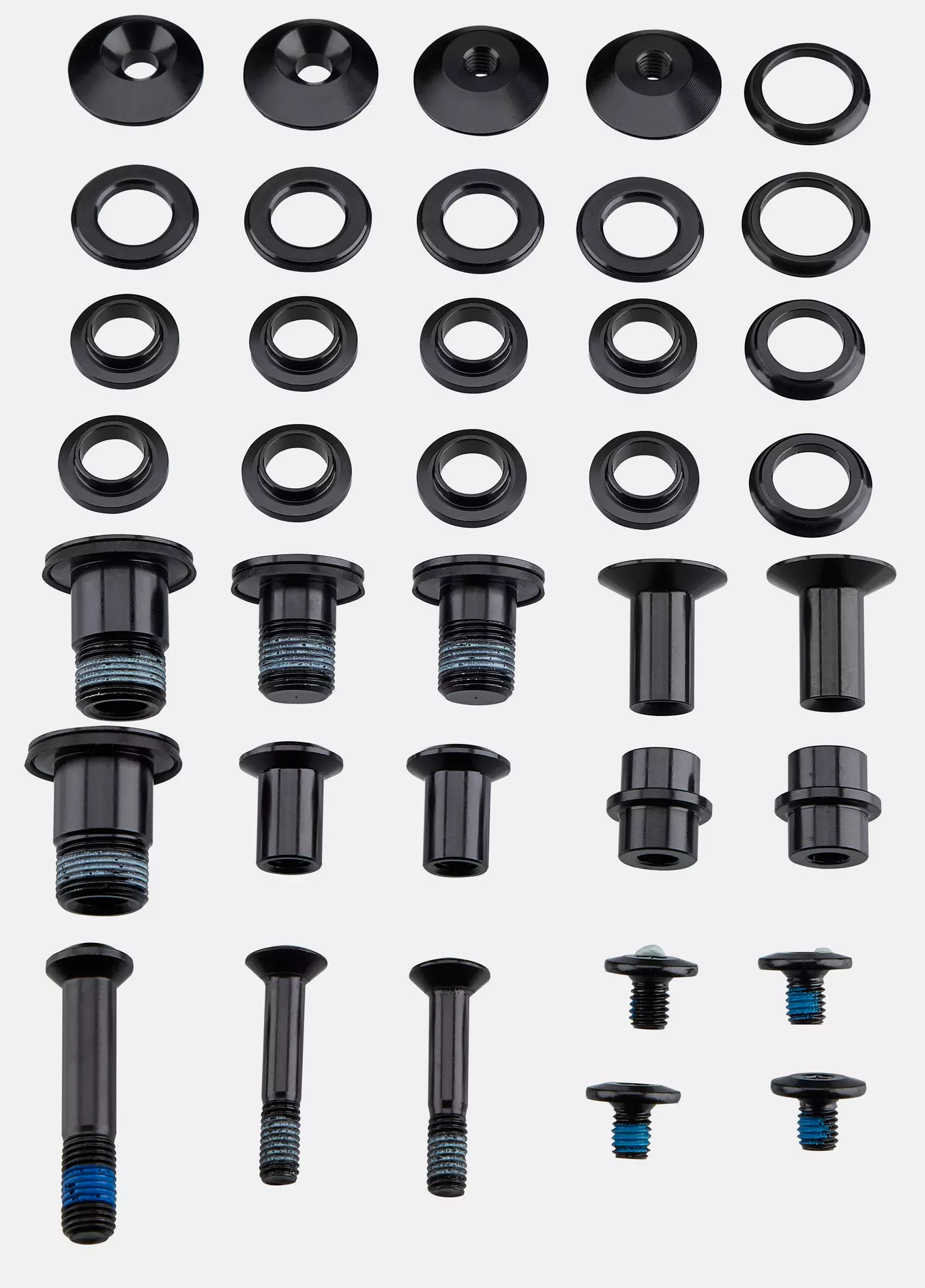

Suspension pivot bolt kit for 2021 - 2024 Stumpjumper EVO Carbon bikes with all bolts and spacers
• Main Pivot (Chainstay) Driveside Bolt: Reverse Thread - 15mm W x 22mm L - Alloy -
Torque: 210 in-lbf (24 Nm) - 1 pcs.
• Main Pivot (Chainstay) Non-Driveside Bolt: 15mm W x 22mm L - Alloy - Torque: 210
in-lbf (24 Nm) - 1 pcs.
• Seatstay Horst Link Pivot Bolt: 6mm W x 32.5mm L - Steel - Torque: 90 in-lbf (10 Nm) -
2 pcs.
• Shock Link to Seat Tube Pivot Bolt: 12mm W x 17mm L - Alloy - Torque 180 in-lbf (20
Nm) - 2 pcs.
• Shock Link to Shock Extension Pivot Axle: 10mm W x 14mm L - Steel - Torque: 60 in-lbf
(7 Nm) - 2 pcs.
• Shock Link to Shock Extension Pivot Bolt: 6mm W x 8mm L - Steel - Torque: 60 in-lbf (7
Nm) - 2 pcs.
• Shock Link to Seatstay Pivot Axle: 10mm W x 17.5mm L - Steel - Torque: 60 in-lbf (7
Nm) - 2 pcs.
• Forward Shock Eye Bolt: 8mm W x 42mm - Steel - Torque: 90 in-lbf (10 Nm) - 1 pcs.
• Forward Shock Eye Bolt: 8mm W x 42mm - Steel - Torque: 90 in-lbf (10 Nm) - 1 pcs.
• This kit also includes all axle and pivot spacers. Refer to schematic for details.
