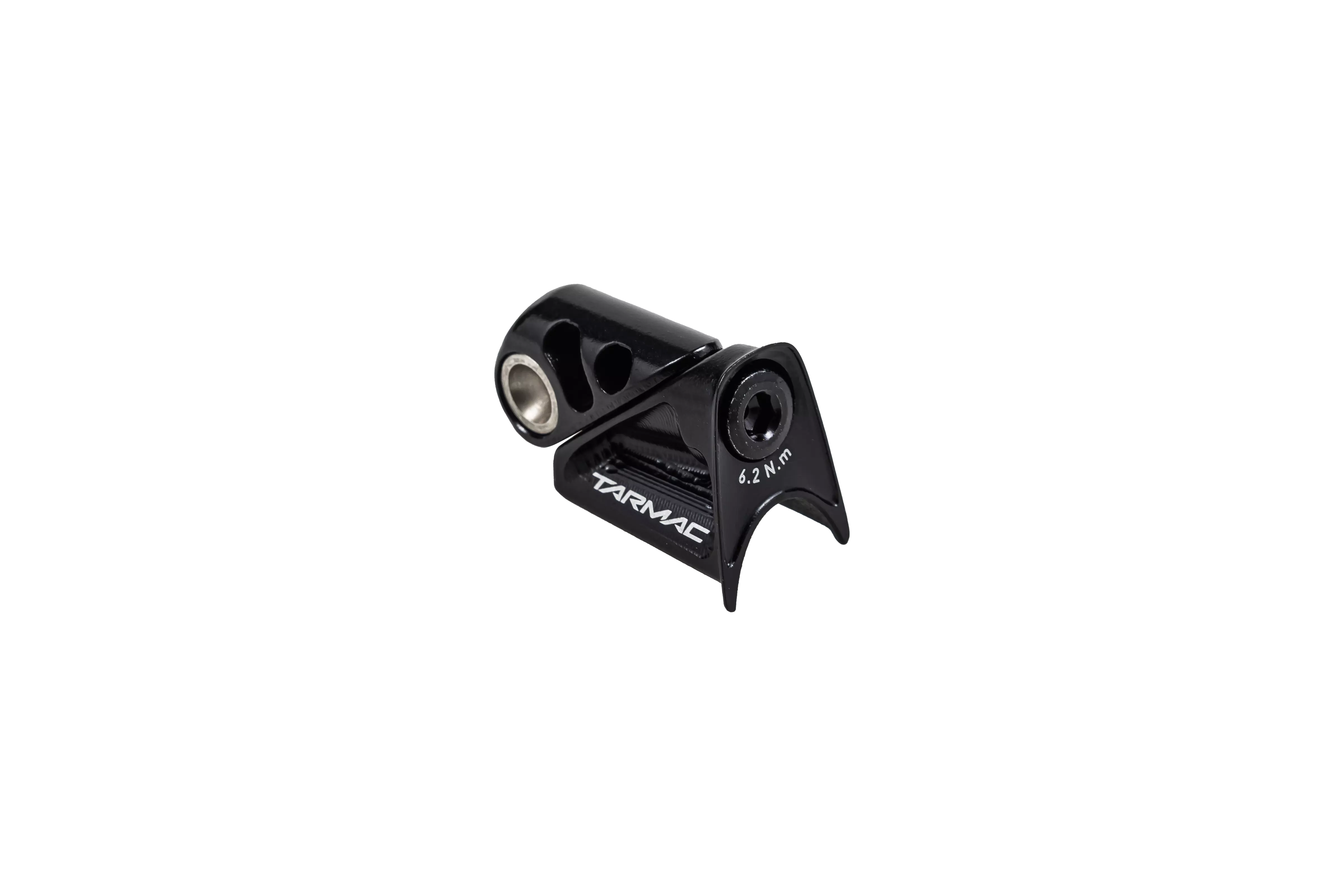

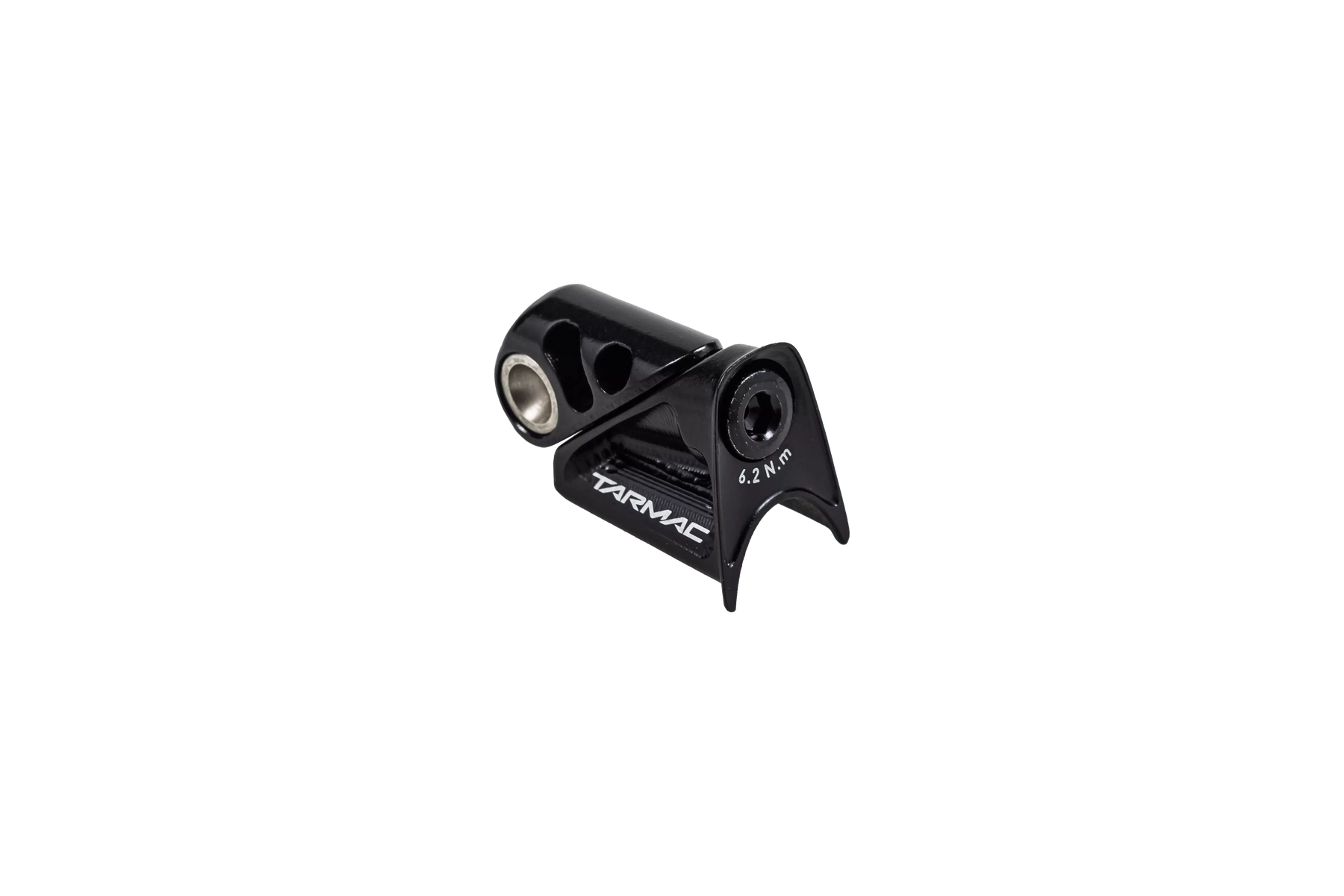

Specialized Seatpost Wedge Assembly
Factory OEM | Tarmac SL8 / SL9 | S224700012
The Specialized Factory Replacement Seatpost Wedge Assembly is a genuine OEM internal clamp used to secure the proprietary aero seatpost inside compatible Specialized frames.
Originally designed for the Tarmac SL8, this wedge assembly is also listed for select Tarmac SL9 and Crux 5applications.
Available from Stage 21 Bikes, your trusted source for hard-to-find Specialized OEM replacement parts.
Key Features
-
Genuine Specialized factory OEM replacement
-
Internal seatpost wedge design
-
Secures the proprietary aero seatpost inside the frame
-
Steel mounting bolt
-
Maximum torque: 6.2 Nm / 55 in-lbf
-
Specialized MPN S224700012
Specifications
| Specification | Details |
|---|---|
| Brand | Specialized |
| Component | Internal Seatpost Wedge Assembly |
| Primary Application | Tarmac SL8 / SL9 |
| Bolt Material | Steel |
| Maximum Torque | 6.2 Nm / 55 in-lbf |
| MPN | S224700012 |
Related Part
The rubber seatpost wedge grommet is sold separately:
Specialized Rubber Grommet – S234700001
OEM Compatibility
Used on select Specialized models including:
-
Tarmac SL8 / S-Works Tarmac SL8 – select 2024–2026 models and framesets
-
Tarmac SL9 / S-Works Tarmac SL9 – select 2027 models and framesets
-
Crux 5 / S-Works Crux 5 – select 2027 models and framesets
OEM applications include Comp, Expert, Pro, S-Level, S-Works, Frameset, LTD, team-replica, and special-edition configurations.
Compatibility Notes
-
Originally designed for the Tarmac SL8 internal seatpost system.
-
OEM use extends to select Tarmac SL9 and Crux 5 applications.
-
Maximum installation torque: 6.2 Nm / 55 in-lbf.
-
Rubber grommet S234700001 is sold separately.
-
Seatpost and other frame hardware are not included unless otherwise specified.
-
Verify frame application and Specialized MPN S224700012 before ordering.
The Specialized Seatpost Wedge Assembly S224700012 provides the factory-correct internal clamping hardware for compatible Tarmac SL8, Tarmac SL9, and Crux 5 frames.
