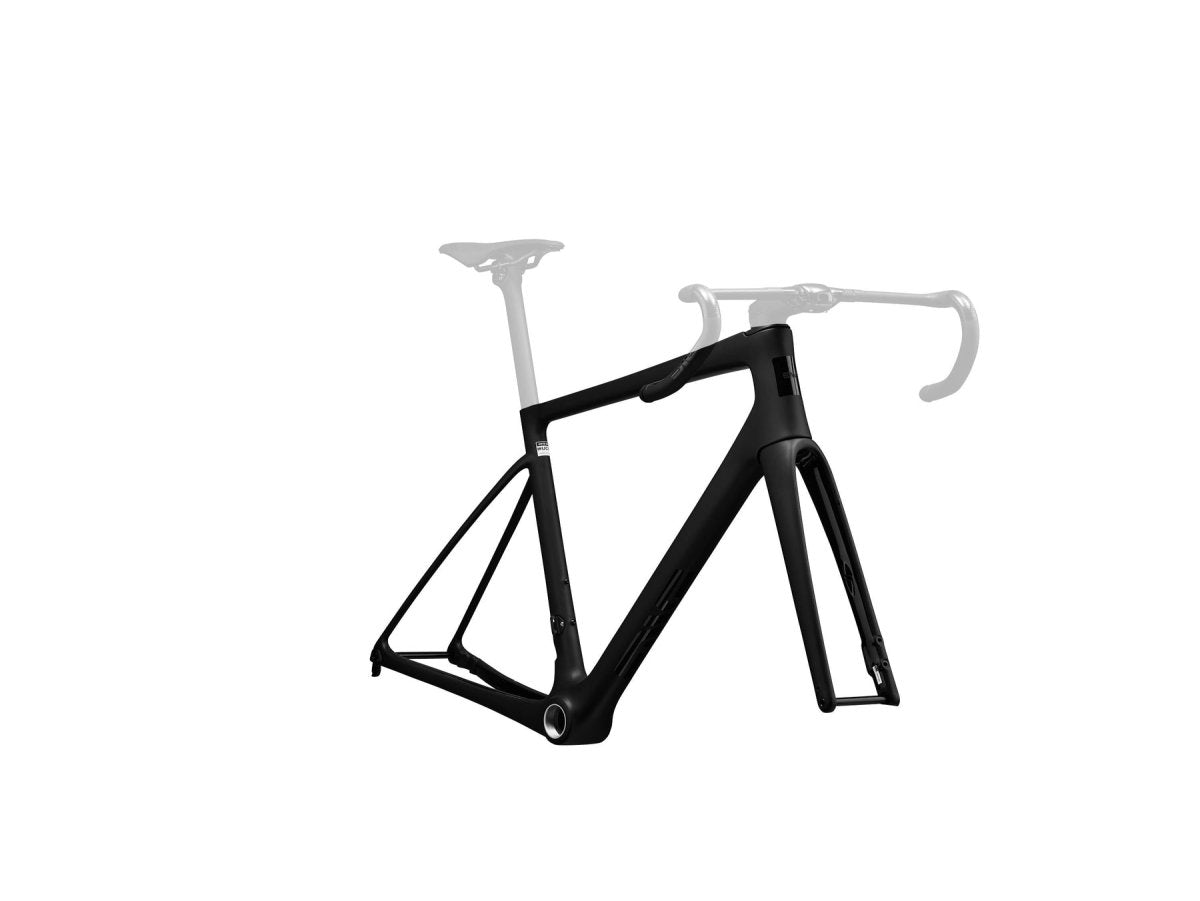

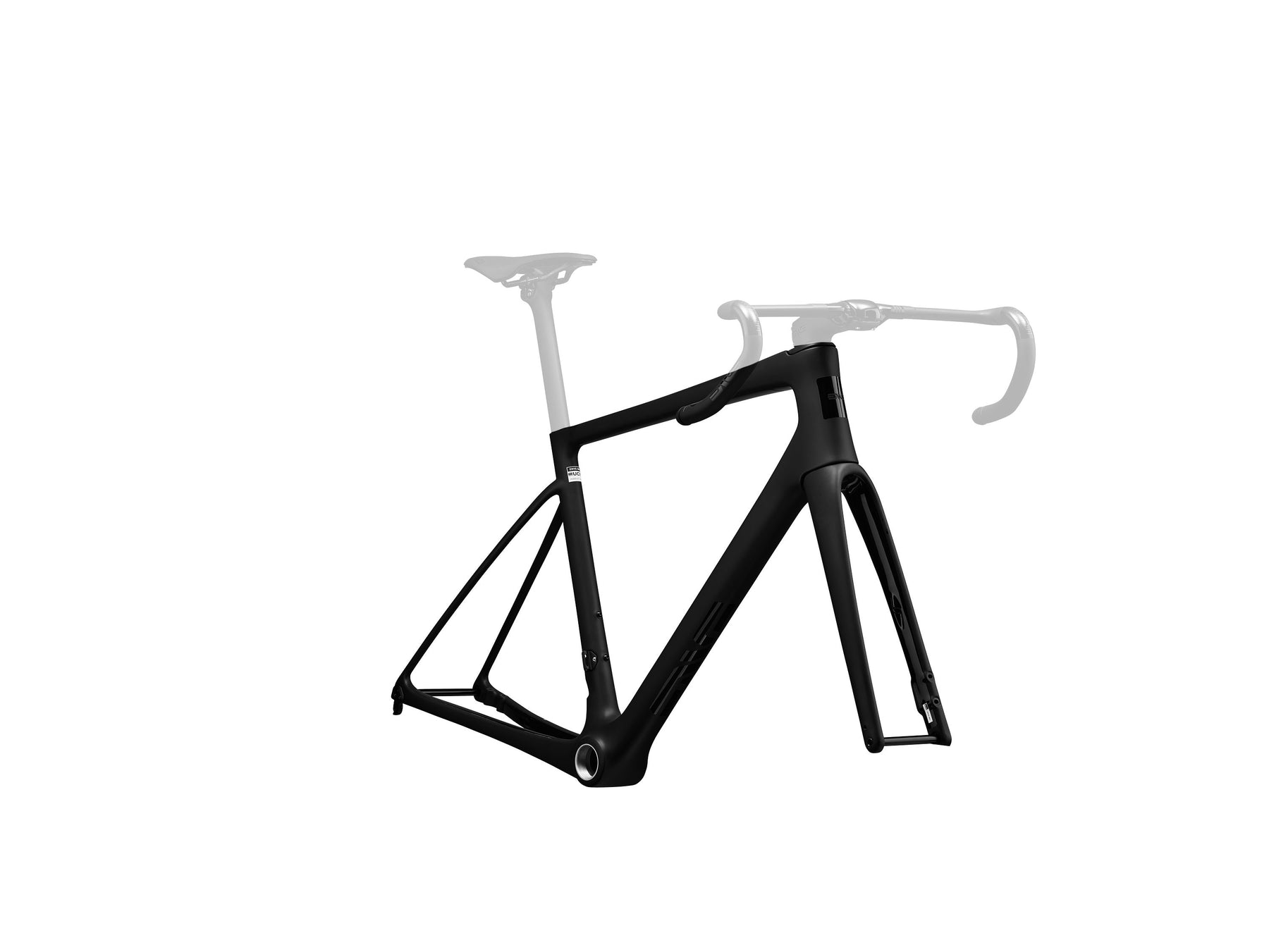

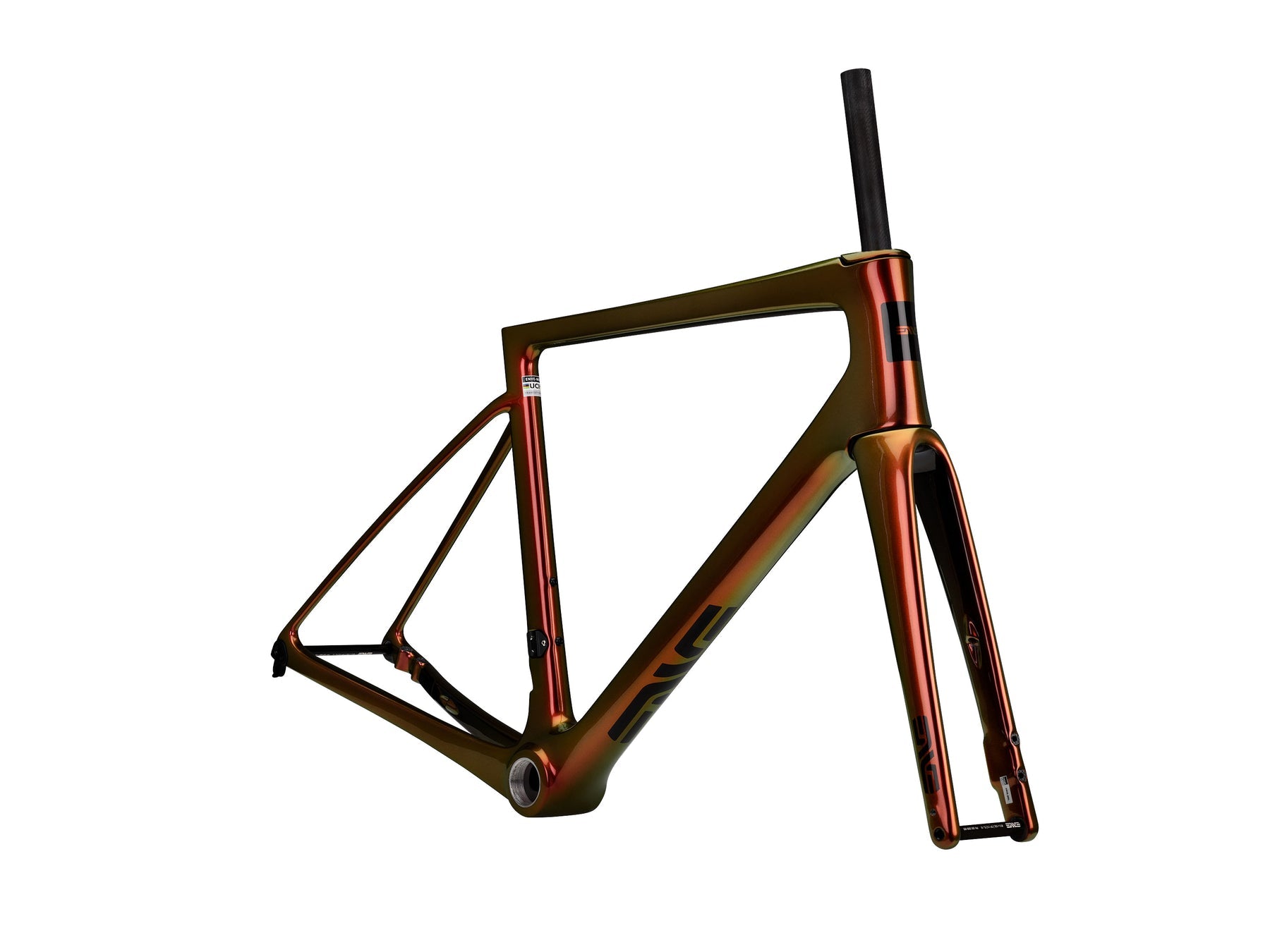

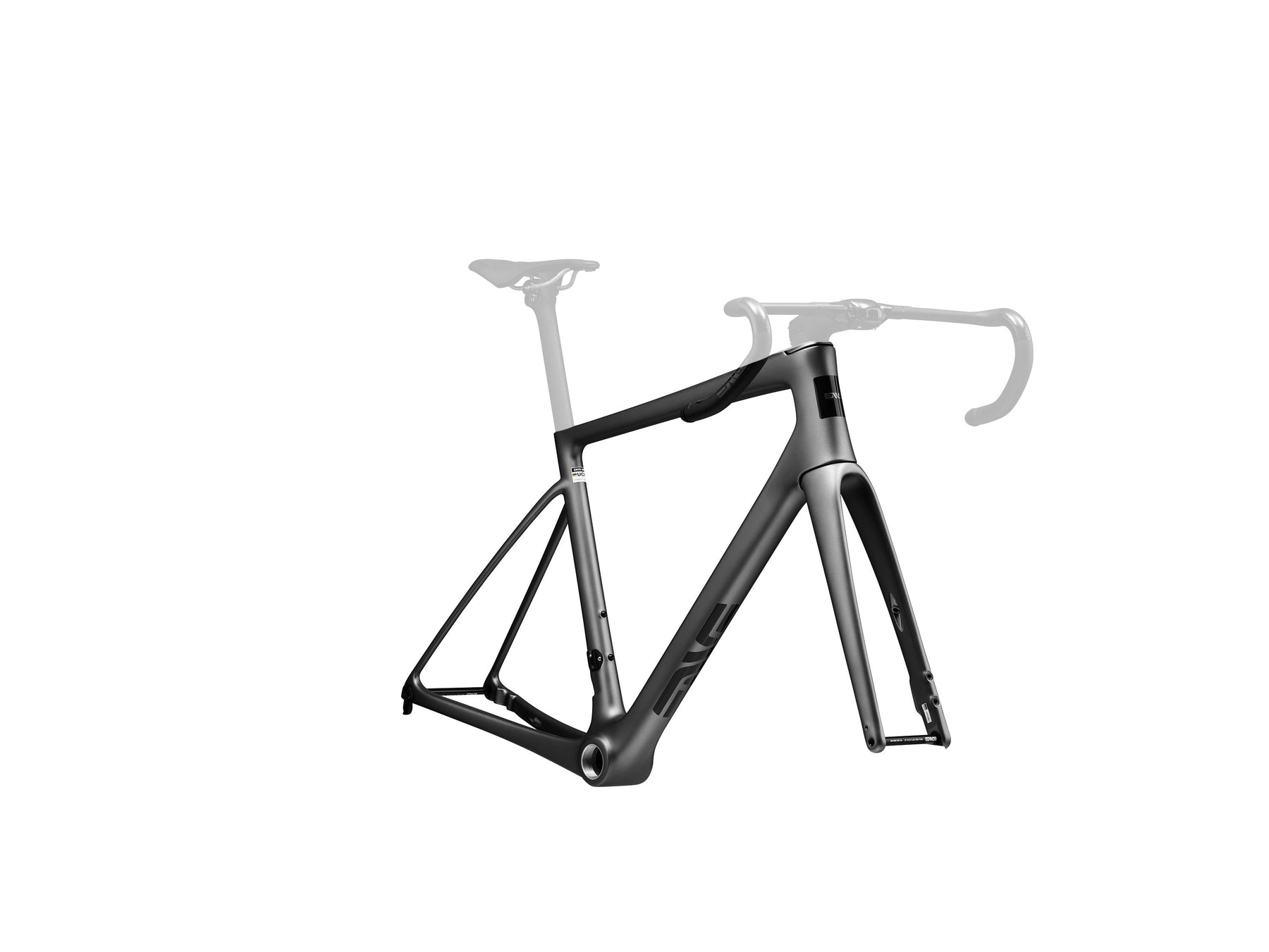

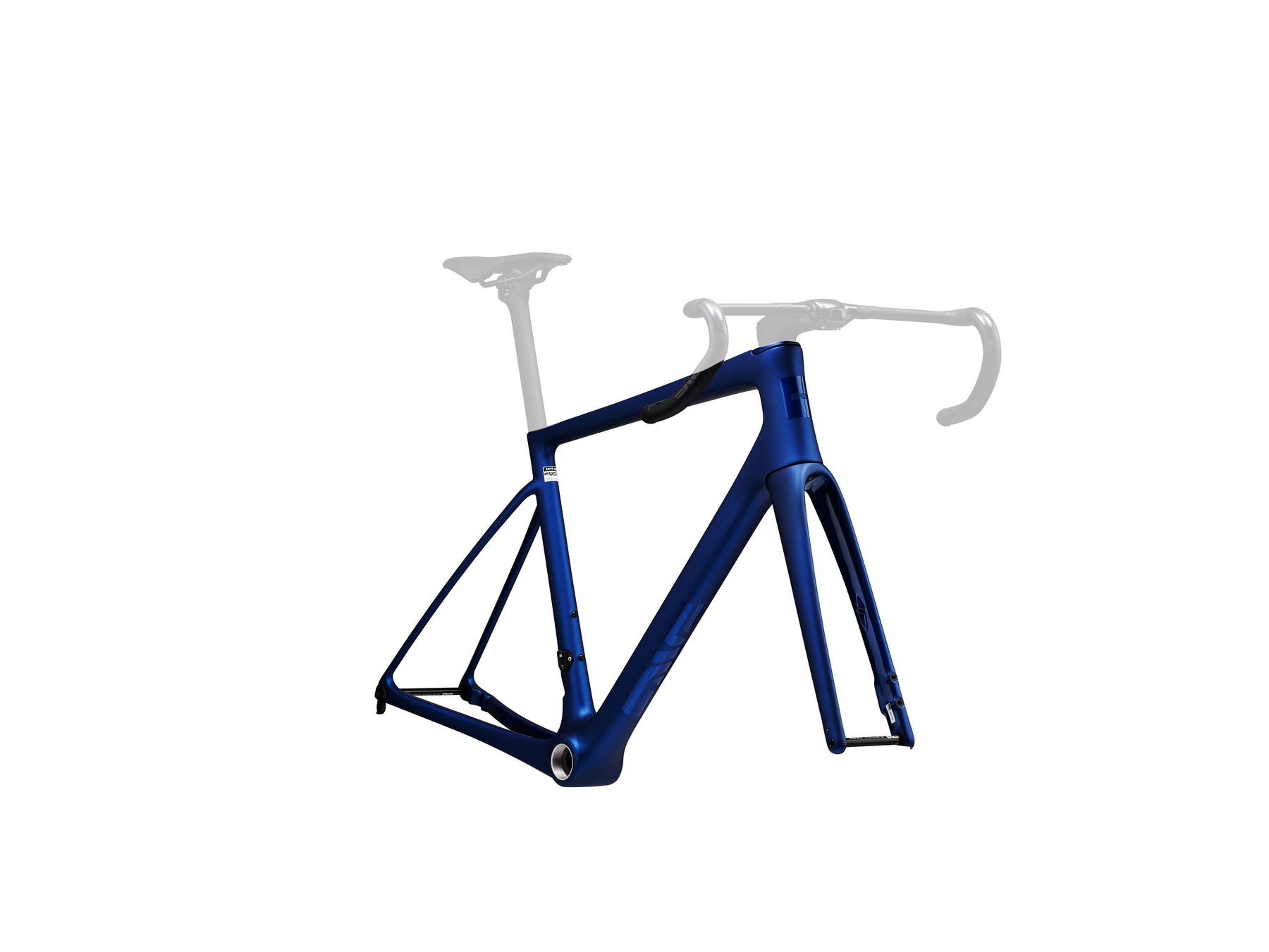

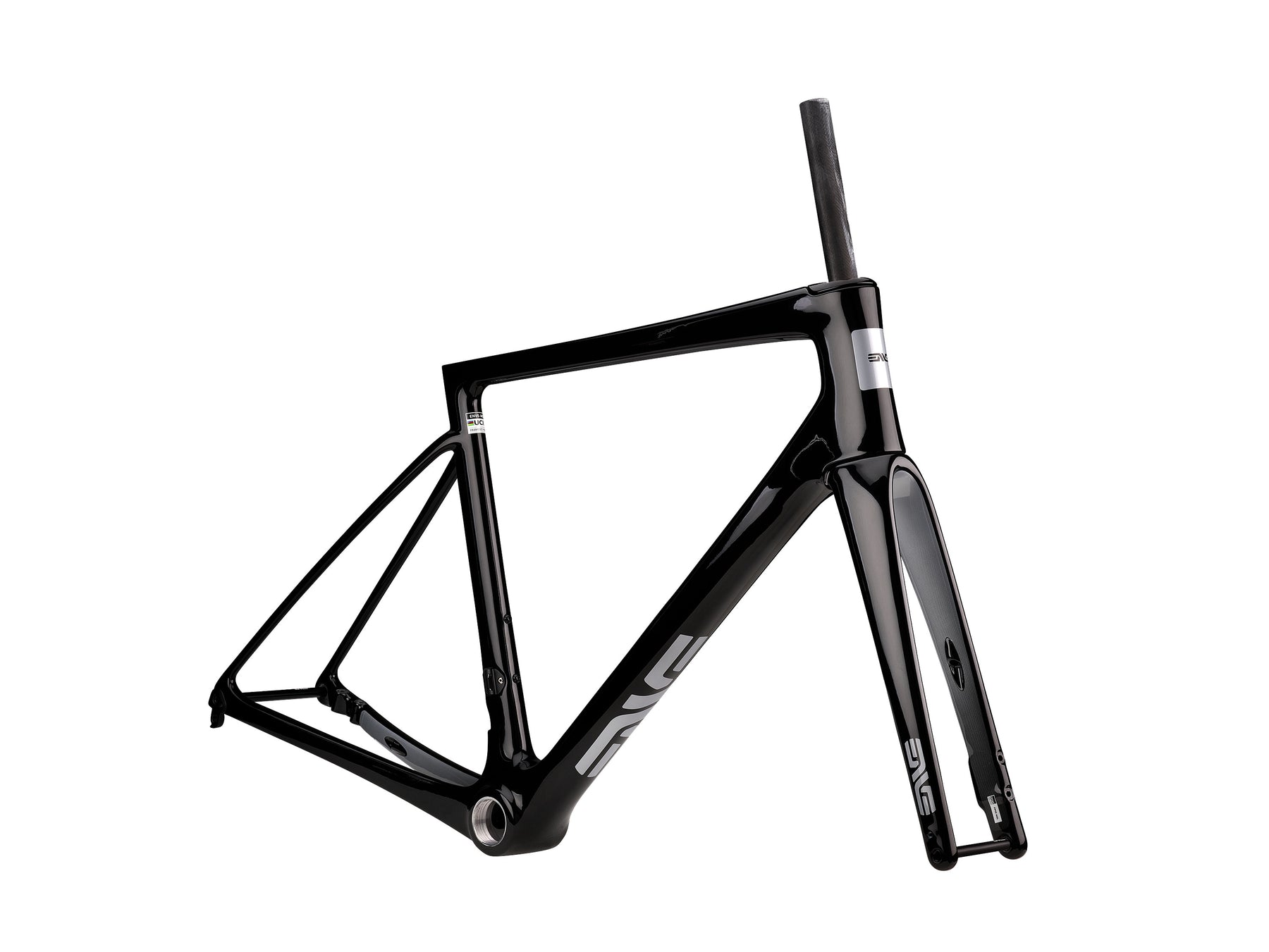

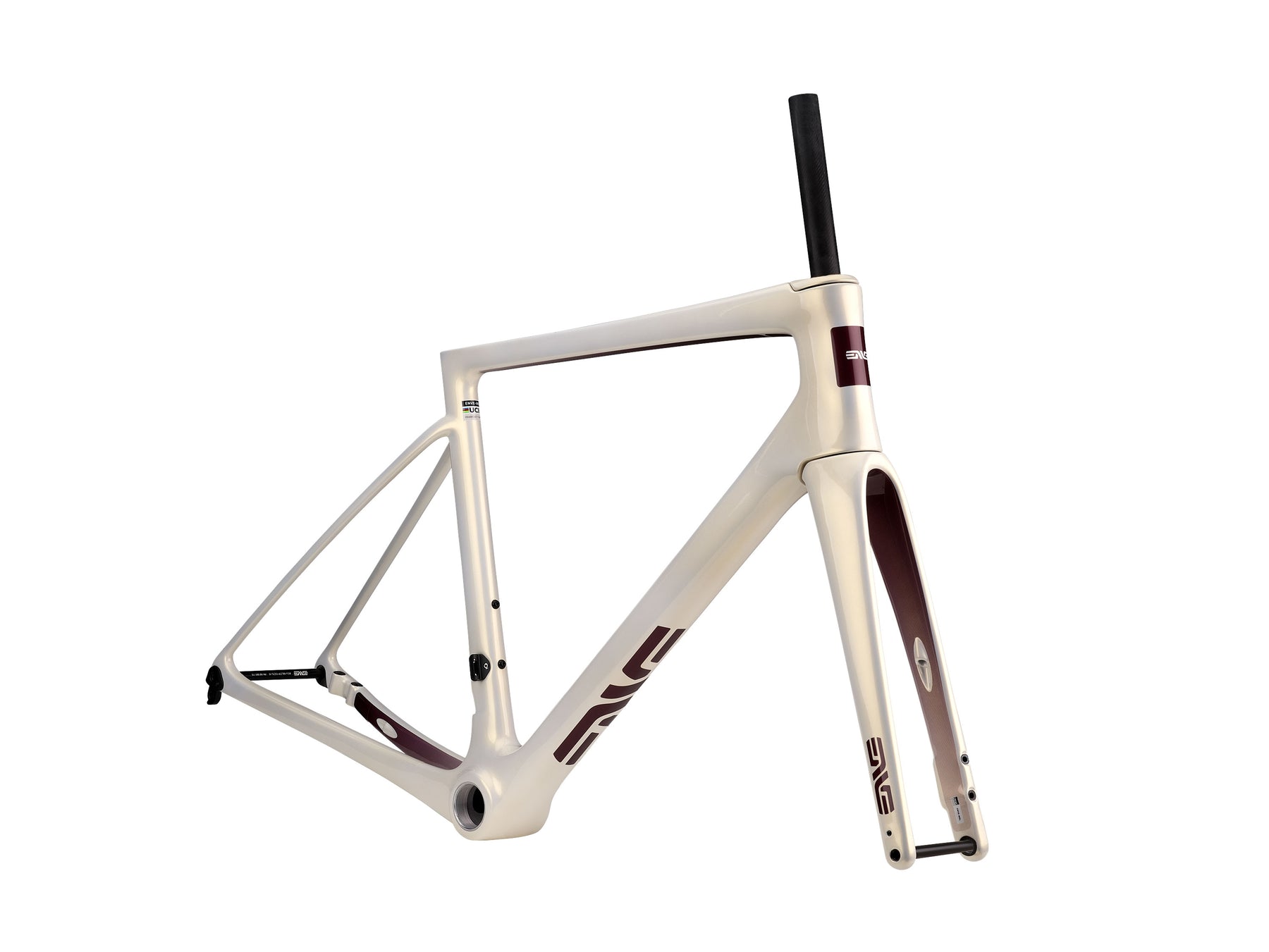

ENVE Melee Road Disc Frameset

REAL-WORLD FAST™

Developed in CFD and the wind tunnel, the Melee features refined tube shapes that have been tuned to complement ENVE’s SES™ rim shapes and deliver aerodynamic performance that is ready to battle with the fastest bikes on the road. Full front-end integration contributes to the Melee’s slippery design.

Real-World Fast™ Defined:

• Balanced for aero efficiency and weight savings
• Tube shapes complement SES rim shapes
• Integrated Front-End hides wires and brake
• Wind tunnel tested for performance at 32 kph/20 mph and 48 kph/30 mph

INTEGRATED FOR SPEED

The Integrated Front-End routes wires and hoses through the bar, stem, and headset where they’re secured using ENVE’s anti-rattle frame finishing kit. This allows internally routed hoses and wires to remain silent, out of sight, and out of the wind. Featuring the two-piece Integrated Aero Stem and SES AR Handlebar, the Melee capitalizes on the conveniences of a two-piece handlebar and stem while maximizing the aerodynamic benefits of the streamlined design.

PERSONALIZE YOUR CHASSIS

An ENVE Chassis is the canvas upon which you can build your dream bike. The Melee is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.

INTEGRATED AERO STEM

ENVE's new Integrated Aero Stem debuts with the Melee. This stem takes design cues from the Aero Road Stem but allows cables, wires, and brake hoses to pass from the handlebar into the head tube. The -7 degree stem is available in 80, 90, 100, 110, 120, and 130 mm lengths. Compatible with the ENVE x K-Edge Aero Stem accessory and computer mount.

AERO SEATPOST

The Melee features an all-new aero seatpost with a Kamm tail design and ENVE's patented twin-bolt saddle rail clamp design. Available in straight or 20 mm setback and compatible with 7x7, 7x9, and 7x10 mm saddle rails.

MATERIAL OPTIMIZED DESIGN (M.O.D.)

We are carbon experts, artisans of our craft, using the best material for the application and making the products that we want to ride. At ENVE, we design and build to the strengths of carbon fiber. This means running continuous fibers throughout the frame and fork, tapering the laminate, and removing excess material to save weight. Carbon fiber is layered and oriented to achieve zone-specific performance requirements like impact toughness, stiffness and compliance. M.O.D. is giving you everything you need, and nothing that you don’t to perform when the rubber hits the road.

VERSATILITY

With geometry optimized around 27 to 32 mm tires, the Melee dials up the versatility with the ability to fit up to 35 mm tires, allowing you to tune your Melee to meet the needs of the day.

At the foundation of performance are bike fit and geometry. If those two fundamentals are not established, all the engineering wizardry won’t save your ride. You need a sound fit and refined geometry to give you the confidence and comfort needed to tap into your bike’s performance. Offered in seven sizes with five fork rakes, the Melee has your ideal fit in mind – like no other race bike on the market.

To determine which size works best for you, we highly recommend using Enve's Bike Fit Calculator. We use it with ever custom build.

SPECS

• Frame Material: ENVE M.O.D Carbon
• Fork Material: ENVE M.O.D Carbon
• Target Application: Road Race/Performance
• Sizes (cm): 47, 50, 52, 54, 56, 58, 60
• Fork Rake: 55, 51, 47, 43, 39
• Frame Size/Fork Rake: 47cm/55, 50cm/51, 52cm/47, 54cm/47,
  56cm/43, 58cm/43, 60cm/39
• Frame Weight: 850g +/- 2% (Size 56, Painted, No Hardware)
• Headset: ENVE Integrated IS52/IS52 Internal Drop-InHeadset Bearing1.5″ IS52 Upper and Lower
• Seat Post Diameter: ENVE Aero
• BB Type: T47 Inboard Bearing
• Brake Mount: Flat Mount
• Front Axle: 12×100 (Total Length: 122, TP:1.5, TL:15)
• Rear Axle: 12×142 (Total Length: 168, TP:1.0, TL:14)
• Minimum Tire Size: 25c
• Optimal Tire Size: 27c-32c
• Maximum Listed Tire Clearance: 35c
• Frame Routing: Internal
