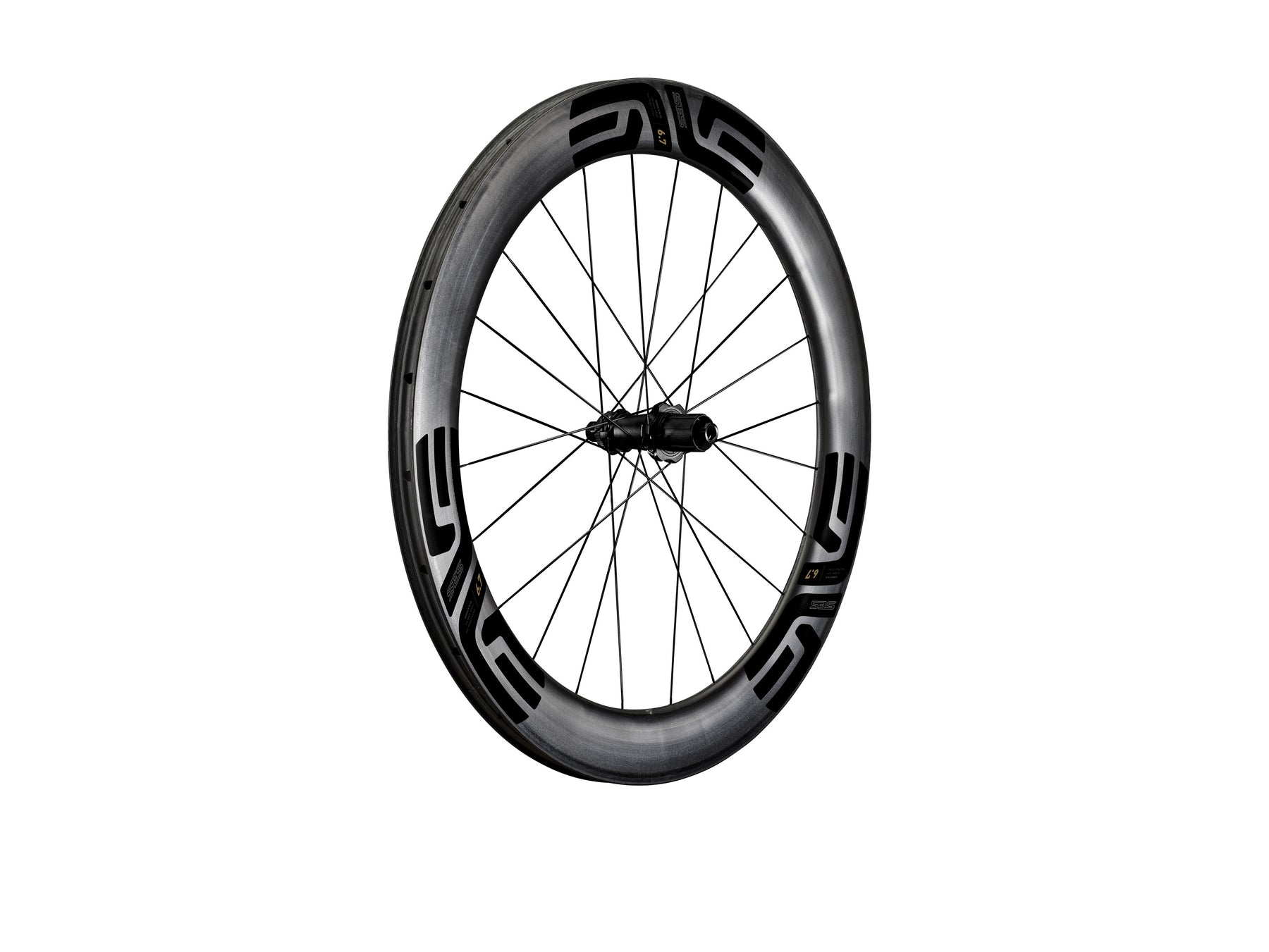

Enve SES 6.7 - Rear - InnerDrive Hub

Striking the ultimate balance between weight savings, stability, aerodynamics, and rolling efficiency, the SES 6.7 defines Real-World Fast and raises the bar for modern aero wheel performance. Grams of rim, versus grams of drag, make the SES 6.7 the outright fastest wheel on the road.

Once a rim goes beyond the 70mm depth, aero efficiency rapidly tapers off and the additional weight quickly begins to neutralize the marginal aero gains that the deeper rim provides. These are the learnings from more than a decade pursuing the ultimate Real-World Fast aero wheelset.

Letting our experience, CFD, and the wind tunnel guide us, we landed on the sweet spot of aerodynamics, weight, and stability to create a wheelset thatgoes head-to-head in the wind tunnel with the very best time trial and triathlon wheels on the market. Couple that with an impressively light sub-1500 gram weight, superior stability, along with a high-volume design, and you end up with a wheelset that defines Real World-Fast.

The SES 6.7 has been aerodynamically optimized around a labeled 27mm tire since data shows unequivocally that in real-world riding conditions, a higher volume tire provides more speed, confidence, and control. As such, we developed the SES 27 tire to be the high-volume race tire for the modern road cyclist. Featuring a 23mm internal rim width, the SES 6.7 can be paired with a 25mm tire, but for those wanting to decrease rolling resistance and maximize speed, a 27mm-28mm tire is the optimal labeled tire width.

Like the rest of the SES wheel line, the SES 6.7 has been optimized for road tubeless performance and features a hookless bead design that allows for the precise rim dimensions required to achieve the best tubeless performance. To further improve tubeless tire and rim reliability, this aerodynamic carbon fiber wheelset features ENVE’s patent pending Wide Hookless Bead, a design element at the leading edge of the rim that provides a more forgiving surface, that when impacted, will reduce the likelihood of pinch-flatting a tubeless tire.

Due to the refined and lightweight construction of the SES 6.7 and its sidewalls, this wheel is not suitable for off-road/gravel applications.

REAL-WORLD FAST

ENVE’s aero wheel development program is driven by our Real-World Fast mantra. This means that each wheel is developed under consideration of airflow efficiency, crosswind stability, handling, weight, tire integration, and much more. The result is a refined collection of wheels that are purpose built to be best-in-class and provide the maximum speed and efficiency benefit available for their intended discipline application.

Over time, the SES 4.5 has redefined the bar by which all other aero wheels are judged. Faster than nearly all our competitor’s deeper wheels, while also being lighter, and more confidence inspiring in gusting crosswinds, the SES 4.5 is the ENVE house favorite for a reason. If you’re a speedfreak looking for the perfect race wheelset, look no further.

THE SES DIFFERENCE

There’s a simple reason why SES wheels consistently score “best in test” in nearly any third-party aero test. We’re committed to sweating the small stuff and chasing the marginal gains that others will not.

In-frame development and ride testing have taught us that unique rim shapes and constructions between the front and back wheels optimize efficiency and the ride experience.

• Front wheels are designed to maximize crosswind stability. A rider's stability on the bike, especially in time trial and triathlon, is critical for aero efficiency and overall performance.
• Rear wheels are designed to recapture air flow as it passes from the front of the bike to the back, which maximizes drag reduction.

Aerodynamically optimized around modern high-volume tubeless tires.

• The all-new SES lineup was developed around the ENVE SES 27mm tire.

Tested at 20 mph (32 kph) and 30 mph (48 kph). Our SES promise of Real-World Fast isn’t limited only to cycling’s elite.

Weighted Average Drag - All wind angles are not created equally. Anemometer data shows that most of your ride time will be spent in wind at less than 12 degrees yaw. Weighted average drag is a tool that helps a rider understand the aero efficiency of a wheelset in real-world wind and riding conditions.

TUBELESS OPTIMIZED

Greater speed, comfort, grip and puncture resistance – what’s not to like about road tubeless? With the selection of a high performance tire at the right pressure, you can achieve lower rolling resistance and more speed. Tubeless also allows you to run much lower tire pressures for far greater comfort, traction, and efficiency, especially over poor road surfaces and gravel, all without sacrificing speed. The potential for pinch flats and, with sealant, debris punctures is all but eliminated.

Tubeless represents the pinnacle of road wheel and tire performance, and the hookless bead design plays a significant role. A hookless rim design allows for machined metal tooling to establish a precise and consistent bead seat diameter that meets the defined requirement by ETRTO. That precision fitment between the tubeless tire bead and the rim’s bead seat ensures air and tire retention.

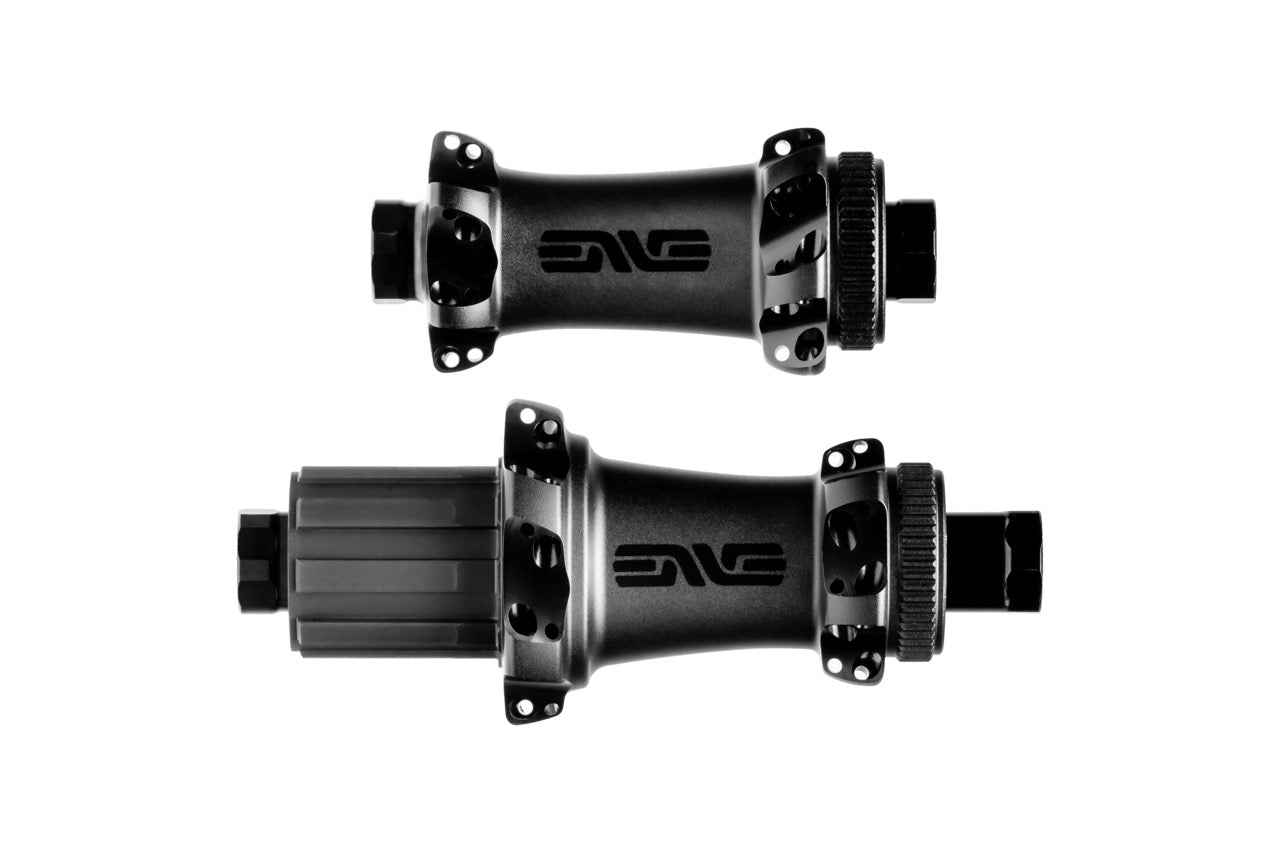

INNERDRIVE PREMIUM ROAD HUB

Featured in all SES and G Series wheels is the ENVE Premium Straight Pull hub, an all-new, 100% ENVE drive mechanism. Oversized steel ratchets are positioned inboard and over the bearings, reducing stress on the axle and bearings while ensuring positive and reliable engagement. Key benefits of the INNERDRIVE™ Premium hub include:

• Weight Savings: The new ENVE INNERDRIVE™ Premium straight pull hub offering delivers 60 grams of weight savings over ENVE’s previous generation hub offering.
• Four Engagement Options: Interchangeable ratchets allow riders to tune their rides for their personal performance needs. Whether it be maximizing efficiency, response, or reliability, we have a solution. Ratchet options include: 40 tooth, 60t, 80t, 100t.
• Consistent Spoke Lengths: The all-new straight-pull hubshell allows for the use of a single spoke length for any given rim diameter, creating an easy user experience for service and maintenance.
• Anti-twist Spoke Hole: To further improve the quality of the wheel build, spoke tension consistency, and to prevent spoke damage during wheel build, an anti-twist feature has been included to prevent the spoke from twisting during wheel build or while riding.
• Silent Spoke Crossings: The straight-pull hubshell puts space between each spoke ensuring that your ENVE wheelset cannot experience spoke creak.

What could be considered the nucleus of an SES wheel, the ENVE Premium Road Hub brings efficiency, longevity, and simplicity to every wheelset. From hub flange geometry to bearing longevity to Perfect PreloadTM, every design detail comes from more than a decade of pairing ENVE carbon rims with the leading hubs on the market. Key benefits of the ENVE Premium Road Hub are:

• Hub Shell Geometry: The hub’s flange diameters, spacing, and spoke hole lacing pattern assists in maximizing torsional stiffness, spoke tangency, and power transfer.
• Lightweight: Cold-forged and machined 6061 alloy for durable lightweight performance. Weight: Front 126 grams, Rear 256 grams
• Premium Grade Stainless Steel Bearings: The bearings selected are premium grade and custom-made for ENVE. Full stainless steel races promise that riders living near the coast, or riding in wet or humid environments, will not experience corroded bearings, races, or external surfaces.
• Perfect PreloadTM: Our system ensures perfect bearing preload from the factory via a tuned wave washer installed on the axle. The result is a maintenance free design that promises longer bearing life, and improved rolling efficiency over the lifespan of the hub.

PRODUCT DETAILS

• When speed matters most
• 1457g wheelset weight (+/- 2%)
• Inner rim width: 23mm
• Aero optimized tire size: 27mm-28mm (Labeled)
• Minimum labeled tire size: 25mm
• For Use With Tubeless Tires Only

BUILD SPECS

Hub Offering - ENVE INNERDRIVE™ Premium Straight-Pull
Spacing - Front: 12x100 | Rear: 12x142
Wheelsize - 700c
Brake Type - Disc Brake Centerlock (lockrings not included)

                                                     Front    Rear    Set
Rim Weight                                  430g    449g    879g
ENVE INNERDRIVE Premium    661g    796g    1457g
