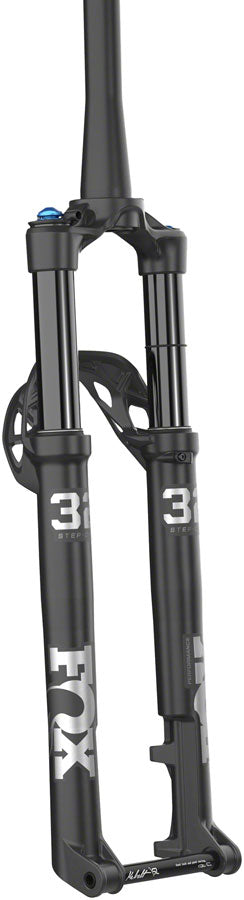

FOX 32 Step-Cast Performance Suspension Fork - 29", 100mm, 15x110mm - GRIP Damper - PTL
Pickup currently unavailable at Stage 21 Bikes
FOX 32 Step-Cast Performance Suspension Fork - 29", 100mm, 15x110mm - GRIP Damper - PTL
Stage 21 Bikes
Pickup currently unavailable
23582 Moulton Parkway
#111
Laguna Woods CA 92637
United States
Competition drives innovation, and as cross-country athletes and course designers push the boundaries of lightweight components, 32 Step-Cast Performance rises to meet the demand. The crown is designed to increase stiffness to the same level as the trail-proven 34. The distinct shape of the Step-Cast chassis uses a narrow stance to save weight and the step design makes room for the spokes and brake rotor.
- GRIP Push-Lock damper features 3-position settings for easy set up and firm mode for pedaling efficiency (Remote sold separately)
- The rear arch matrix was generatively designed to increase stiffness by 40% while minimizing weight
- Premium 7000 series aluminum crown supports angled upper tubes, rathan than relying on extra material to achieve overall rake and steering stiffness
- Kabolt SL thru-axle drops an additional 12g over the standard Kabolt axle by eliminating the weight of an axle nut and decreasing the flange diameter
- Fitted with the proven and reliable FLOAT EVOL air spring
- Black anodized upper tubes for added durability
- Positive Spring: Air
- Wheel Size: 29"
- Brake Type: Post Mount 160
- External Adjustments: High Speed Compression Damping , Low Speed Compression Damping , Rebound Damping
- Crown Race: 40
- Negative Spring: Air
- Stanchion Diameter: 32
- Front Axle: 15mm Thru x 110mm
- Steerer Type: Tapered
- Offset: 44
- Maximum Tire Width: 58
- Steerer Tube Length (mm): 264
- keyword search: FOX Model Year 26 , FOX MY26
- Color: Matte Black
- S.H.I.S. Stem Clamp Diameter: 28.6
- Travel (mm): 100
- Axle to Crown Length: 503.7
- Lockout Switch: Remote
- Defined Color: Black
