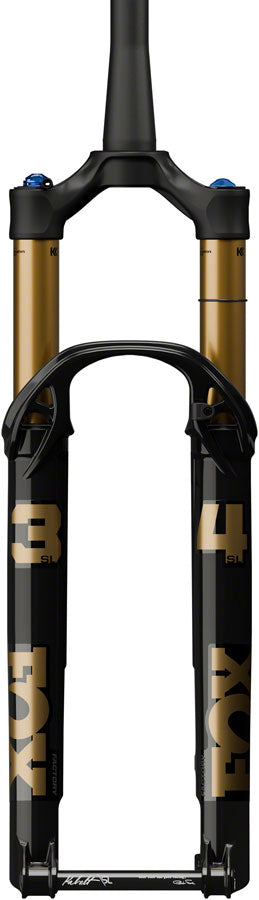

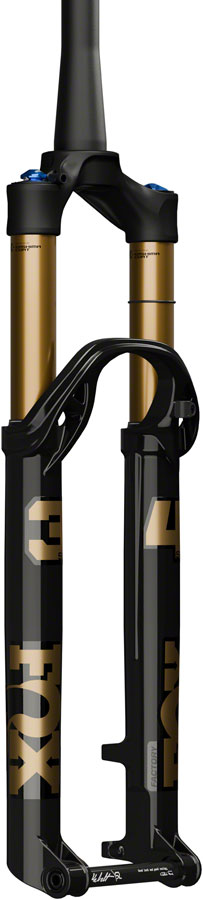

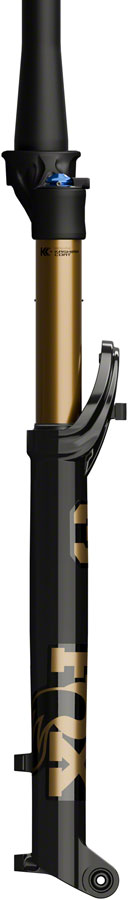

FOX 34 SL Factory Suspension Fork
29" | 120mm Travel | GRIP SL Push-Lock | Kashima | 910-21-367
The FOX 34 SL Factory is a lightweight 29er suspension fork built for modern XC and downcountry bikes that demand more travel, stiffness, and tire clearance without excessive weight.
This Factory Series version features Kashima-coated 34mm stanchions and the lightweight GRIP SL Push-Lock damper, providing remote-operated Open, Medium, and Firm compression modes for efficient climbing, fast transitions, and controlled descending.
Key Features
-
Full-width 34mm chassis
-
120mm travel
-
Lightweight Factory Series construction
-
Kashima-coated upper tubes
-
GRIP SL Push-Lock remote-operated damper
-
Open, Medium, and Firm compression settings
-
Remote sold separately
-
Generative design-aided arch and crown
-
20mm increased bushing overlap compared with 34 SC
-
Longer air spring with increased negative volume
-
Double-butted damper-side stanchion
-
Inboard Lower Leg Bypass Channels
-

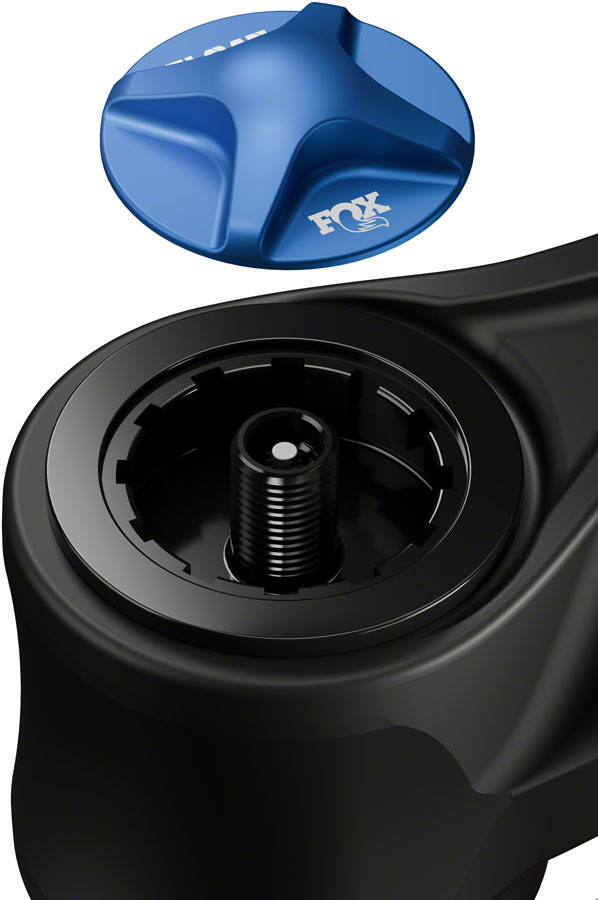

Air spring top cap accepts a cassette tool for volume adjustment
-
FOX part number 910-21-367
Specifications
| Specification | Details |
|---|---|
| Brand | FOX |
| Model | 34 SL Factory |
| Wheel Size | 29" |
| Travel | 120mm |
| Damper | GRIP SL Push-Lock |
| Lockout / Compression Control | Remote |
| Compression Positions | Open / Medium / Firm |
| Positive Spring | Air |
| Negative Spring | Air |
| Stanchion Diameter | 34mm |
| Stanchion Finish | Kashima Coat |
| Front Axle | 15 × 110mm Boost Thru-Axle |
| Steerer | Tapered |
| Stem Clamp Diameter | 28.6mm |
| Crown Race | 40mm |
| Offset | 44mm |
| Brake Mount | Post Mount 180 |
| Maximum Tire Width | 63.5mm |
| Axle-to-Crown | 540.5mm |
| External Adjustments | High-Speed Compression, Low-Speed Compression, Rebound |
| Color | Gloss / Shiny Black |
| Defined Color | Black |
| FOX Part Number | 910-21-367 |
Chassis & Suspension Design
Compared with the FOX 34 SC, the 34 SL uses a broader chassis layout with an aggressive arch and crown design engineered for increased stiffness and additional travel.
FOX specifies:
-
17% increase in stiffness
-
10mm increase in travel
-
Only 3% increase in weight
-
20mm more bushing overlap for increased stiffness and reduced friction
-
No increase in axle-to-crown length from the additional bushing overlap
The longer air spring and increased negative volume are designed to combine a supple initial stroke with supportive mid- and end-stroke performance.

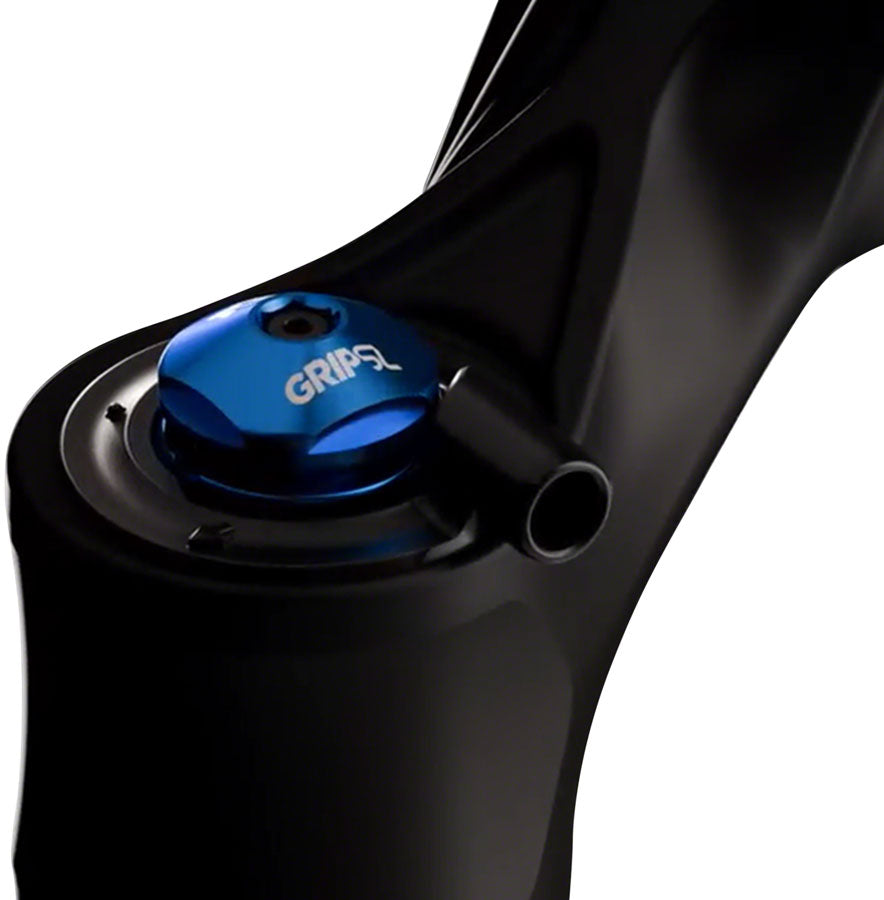

GRIP SL Push-Lock Damper
The lightweight GRIP SL Push-Lock damper is designed specifically for short-travel XC applications and provides three remotely controlled compression settings:
-
Open
-
Medium
-
Firm
Remote control is sold separately.
Compatibility Notes
-
Designed for 29" wheels.
-
Uses 15 × 110mm Boost front axle spacing.
-
Requires a compatible tapered steerer frame/headset.
-
Brake interface is Post Mount 180.
-
Maximum listed tire width is 63.5mm.
-
Confirm axle, steerer, offset, brake mount, travel, and axle-to-crown requirements before ordering.
-
Verify FOX part number 910-21-367 for exact configuration.
The FOX 34 SL Factory GRIP SL Push-Lock 29" fork combines low weight, increased chassis stiffness, 120mm travel, and remote-controlled compression for modern XC and downcountry bikes.
