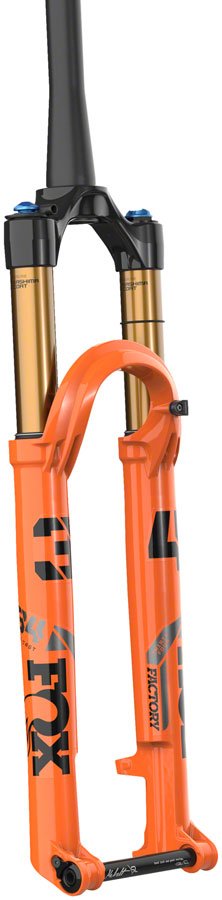

FOX 34 Step-Cast Factory Suspension Fork - 29", 120 mm

The lightest 34 ever, the 34 Step-Cast is designed from the ground up to deliver uncompromising XC race performance with class leading tunability, chassis stiffness and strength. This fork features an incredibly light and short travel-specific GRIP SL Damper that not only saves weight, but provides an unparalleled ride feel in its class.

• Features an incredibly light and short travel-specific GRIP SL Damper that not only saves weight, but provides an unparalleled ride feel in its class
• Riders experience a supple stroke with an optimized pedal-to-bump efficiency, as well as a smooth blowoff force in lockout mode to reduce rider fatigue
• The lower leg arch design pairs perfectly with modern trail bikes, where head tube profiles have grown larger and fork offsets shorter
• The 34 SC’s arch juts forward to provide ample headtube clearance at full compression and the lower leg shape optimizes stiffness with the absolute minimal amount of material
• Three on-the-fly compression damping positions: Open, Medium, Firm
• Fitted with the proven and reliable FLOAT EVOL air spring
• Positive Spring: Air
• Wheel Size: 29"
• Brake Type: Post Mount 160
• External Adjustments: High Speed Compression Damping , Low Speed Compression Damping , Rebound Damping
• Crown Race: 40
• Negative Spring: Air
• Stanchion Diameter: 34
• Front Axle: 15mm Thru x 110mm
• Steerer Type: Tapered
• Offset: 44
• Maximum Tire Width: 66
• Steerer Tube Length (mm): 264
• keyword search: FOX Model Year 25 , FOX MY25
• Color: Shiny Orange
• S.H.I.S. Stem Clamp Diameter: 28.6
• Travel (mm): 120
• Axle to Crown Length: 530
• Lockout Switch: Remote
• Defined Color: Orange
