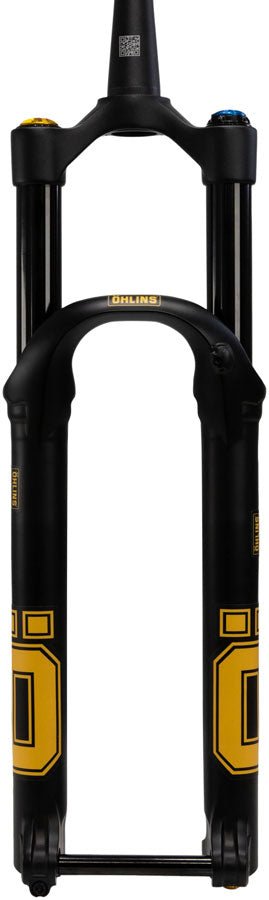

Ohlins RXF34 m.2 Suspension Fork - 29" 130mm 15mm x 110mm 44mm Offset OTX18 Damper Air Spring BLK
Quantity:
Pickup available at Stage 21 Bikes
Usually ready in 24 hours
Ohlins RXF34 m.2 Suspension Fork - 29" 130mm 15mm x 110mm 44mm Offset OTX18 Damper Air Spring BLK
Stage 21 Bikes
Pickup available, usually ready in 24 hours
23582 Moulton Parkway
#111
Laguna Woods CA 92637
United States
Choose options
Quantity:
Designed for riders who cover lots of ground—FAST. The new fork replaces the original RXF34 and offers a short-travel 120-130mm setup optimized for lightweight 29er trail bikes. Weighing in at just 1698g the fork boasts a brand new air spring and damper adapted for the demands of the emerging riding style while still carrying all the hallmarks of Öhlins’ race-proven performance suspension seen from its long-travel single-crown cousins—the RXF36 m.2 & RXF38 m.2. The RXF34 m.2 uses the newly designed OTX18 damper which purpose-built for lightweight trail bikes. The new damper is paired with a robust yet lightweight air spring that features a positive and self-adjusting negative chamber. With a flex pattern tailored for lightweight trail riding the RXF34 m.2’s super-stiff chassis delivers point-and-shoot precision steering.OTX18 damper shares several key components with its bigger TTX18 brother but weighs 27% less and is optimized for faster and more fluid trail riding striking the optimal balance between traction control weight and stiffness Trail-optimized OTX18 damper offers impressive adjustability for fine-tuning with fifteen clicks of low-speed compression and rebound adjustment alongside three for tweaks to high-speed compression Lightweight air spring features a positive chamber that allows riders to tune the spring curve according to their needs using Öhlins’ easy-to-use volume spacer system Negative chamber of the lightweight air spring has been designed for fast trail riding and provides a plush initial feel and superb small bump sensitivity while the spring’s surface and seals also minimize friction and breakaway force to enhance the fork’s smooth ride feel Race-proven chassis design has been achieved via a closed-end outer tube design to increase stiffness impact resistance and the volume of the lower legs to give the rider more power to fine-tune performance to their liking for greater confidence and control 15mm x 110mm boost floating thru-axle axle design to minimize friction eMTB approved
| Steerer Type | Tapered |
| Lockout Switch | Crown |
| Brake Type | Post Mount 180 |
| Negative Spring | Air |
| Travel (mm) | 130 |
| Offset | 44 |
| Axle to Crown Length | 541 |
| Front Axle | 15mm Thru x 110mm |
| Maximum Tire Width | 66 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Black |
| Crown Race | 40 |
| Wheel Size | 29" |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Air |
| Stanchion Diameter | 34 |
