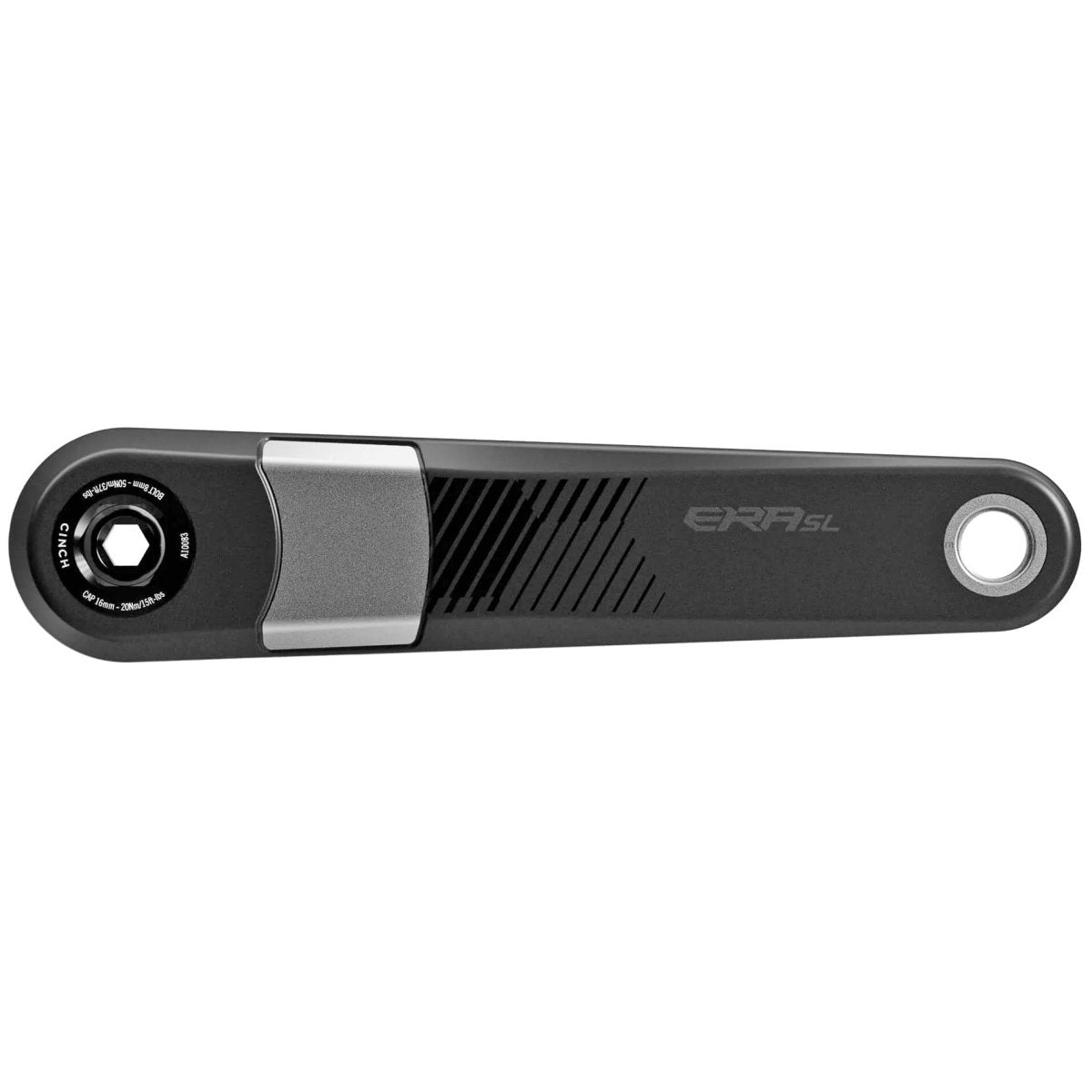

Race Face Era SL Crank Arms No BB 136 BB 165mm Stealth
Pickup currently unavailable at Stage 21 Bikes
Race Face Era SL Crank Arms No BB 136 BB 165mm Stealth
Stage 21 Bikes
Pickup currently unavailable
23582 Moulton Parkway
#111
Laguna Woods CA 92637
United States
Choose options
- Superlight version of the revolutionary Era crank, approved for bikes up to 140mm
- - Same layup and proprietary insert bonding tech as the Era
- - All unnecessary body material eliminated, maintaining strength
- - Pedal and drive side spindle inserts minimized
- - Spindle integrated with non-drive crank arm, eliminating non-drive crank bolt
- - Steel wear plate sized down to focus on highest wear areas
- - Versatile Cinch system offers interchangeable spiders, limitless ring combinations, swappable width 30mm alloy spindles, and full compatibility across all relevant frame standards
- - 136mm wide spindle: 52mm chainline on bikes with Boost 148mm rear spacing (optional: use Shimano 12sp ring for 55mm chainline with 136mm spindle)
- - Bottom bracket cups, spanner, and chainrings sold separately
- - Designed, tested and manufactured in Race Face's Canadian facility
- - 170mm Q-factor
- - 347g (170mm)
| Model | Era SL |
| Length | 165mm |
| Direct Mount/BCD | Cinch |
| Configuration | 1x |
| Spindle Interface | 30mm |
| BB Shell Width | 73mm |
| Chainline | 52/55mm |
| Material | Carbon |
| Color | Stealth |
