Specialized Demo FSR (F1) Replacement Suspension Pivot Bolt and Specer Kit

Specialized Demo FSR F1 Replacement Suspension Pivot Bolt & Specer Kit

$165.00
MPN: S190500002
Quantity:
Only 1 unit left
Pickup available at Stage 21 Bikes Please note that orders placed with local pickup will be charged California sales tax.

Specialized Demo FSR F1 Replacement Suspension Pivot Bolt & Specer Kit

Stage 21 Bikes

Pickup available, please note that orders placed with local pickup will be charged california sales tax.

23582 Moulton Parkway
#111
Laguna Woods CA 92637
United States

+19497163363

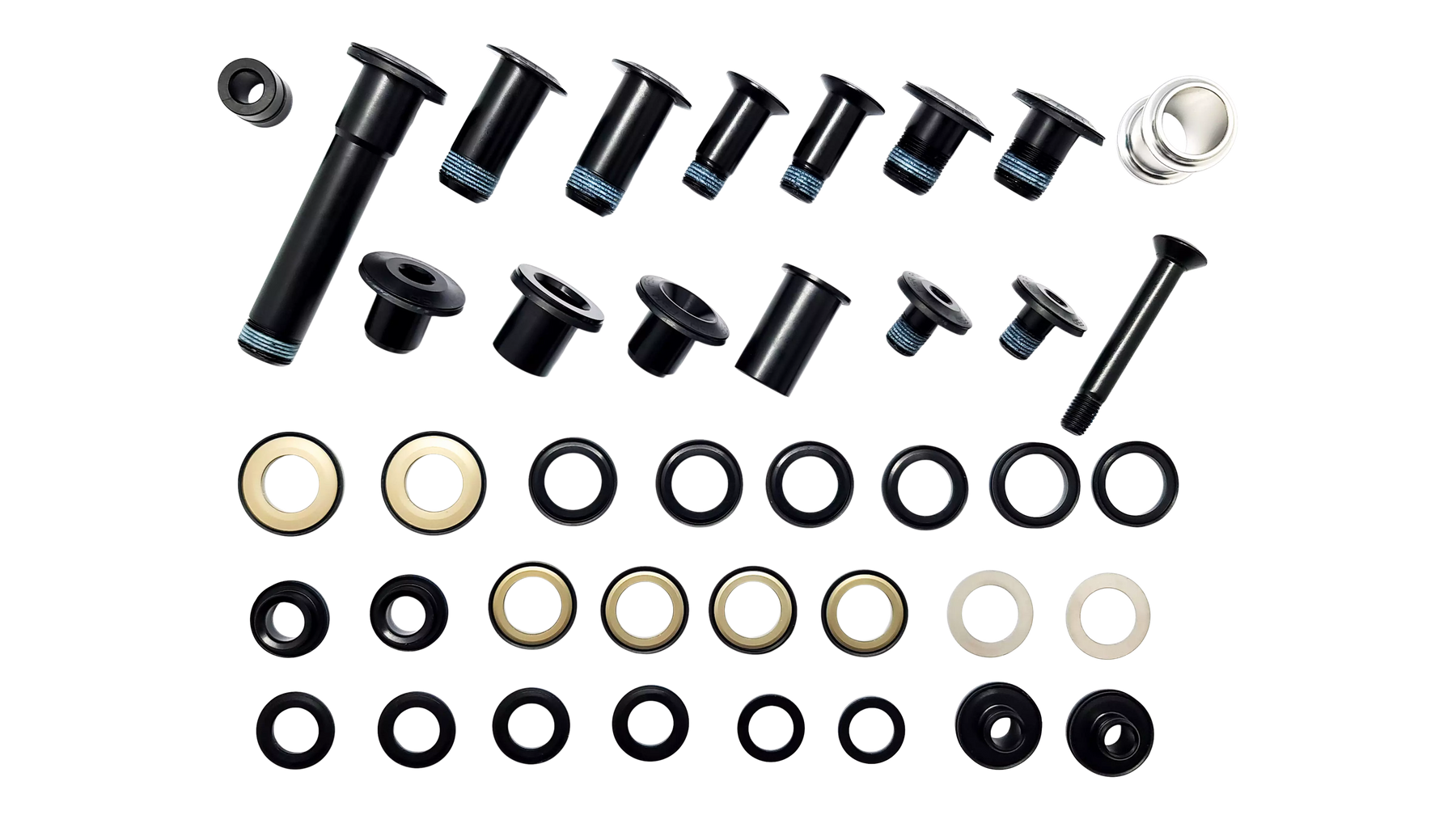

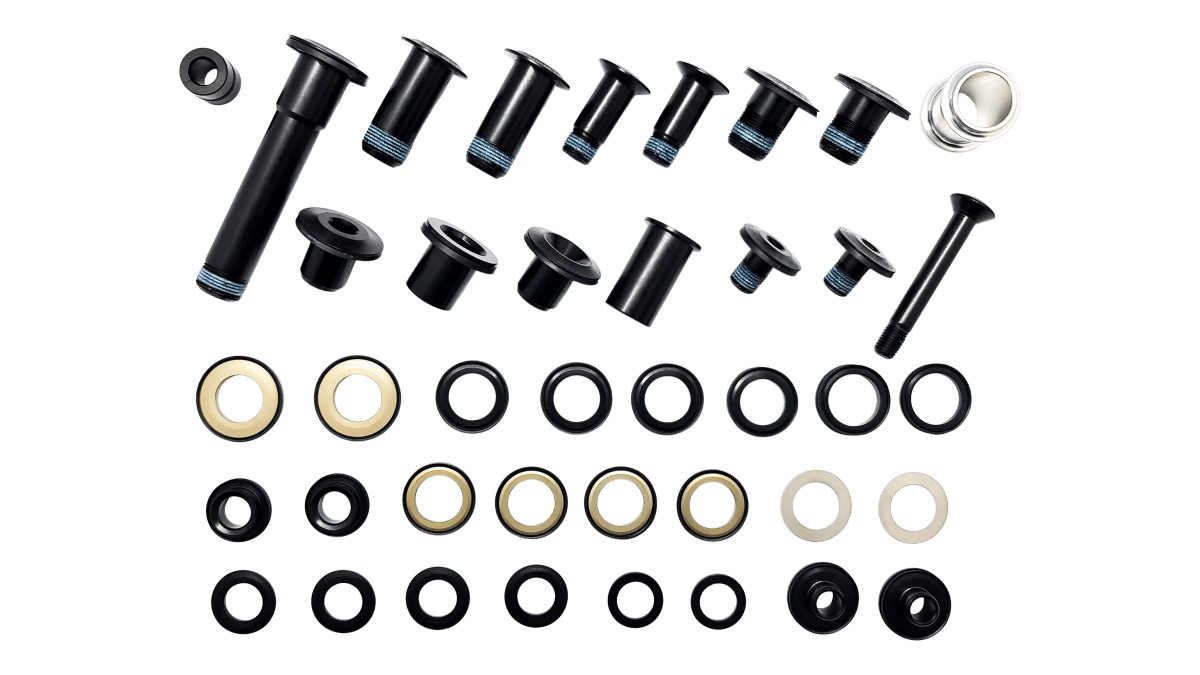

Suspension pivot bolt kit for 2019 Demo FSR (F1) bikes with all bolts and spacers

• Main Pivot Axle: 17/15mm W x 80.3mm L - Steel - Torque: 240 in-lbf (27.1 Nm) - 1 pcs.

• Upper Link to Seat Tube Pivot Bolt: 15mm W x 21mm L - Alloy - Torque: 200 in-lbf (22.5Nm) - 2 pcs.

• Seatstay Horst Link Pivot Bolt: 12mm W x 30mm L - Alloy - Torque 180 in-lbf (20.3 Nm) - 1 pcs.

• Upper Link to Seatstay Pivot Bolt: 15mm W x 35.7mm L - Alloy - Torque: 200 in-lbf (22.5 Nm) - 2 pcs.

• Forward Shock Eye Bolt: 10mm W x 15mm L - Alloy - Torque: 180 in-lbf (20.3 Nm) - 2pcs.

• Lower Link to Mid Link Pivot (Lower Shock Eye) Bolt: 8mm W x 53mm L - Alloy - Torque: 200 in-lbf (22.5 Nm) - 1 pcs.

• This kit also includes all axle and pivot spacers.

Demo Model Years: 2019-2025
