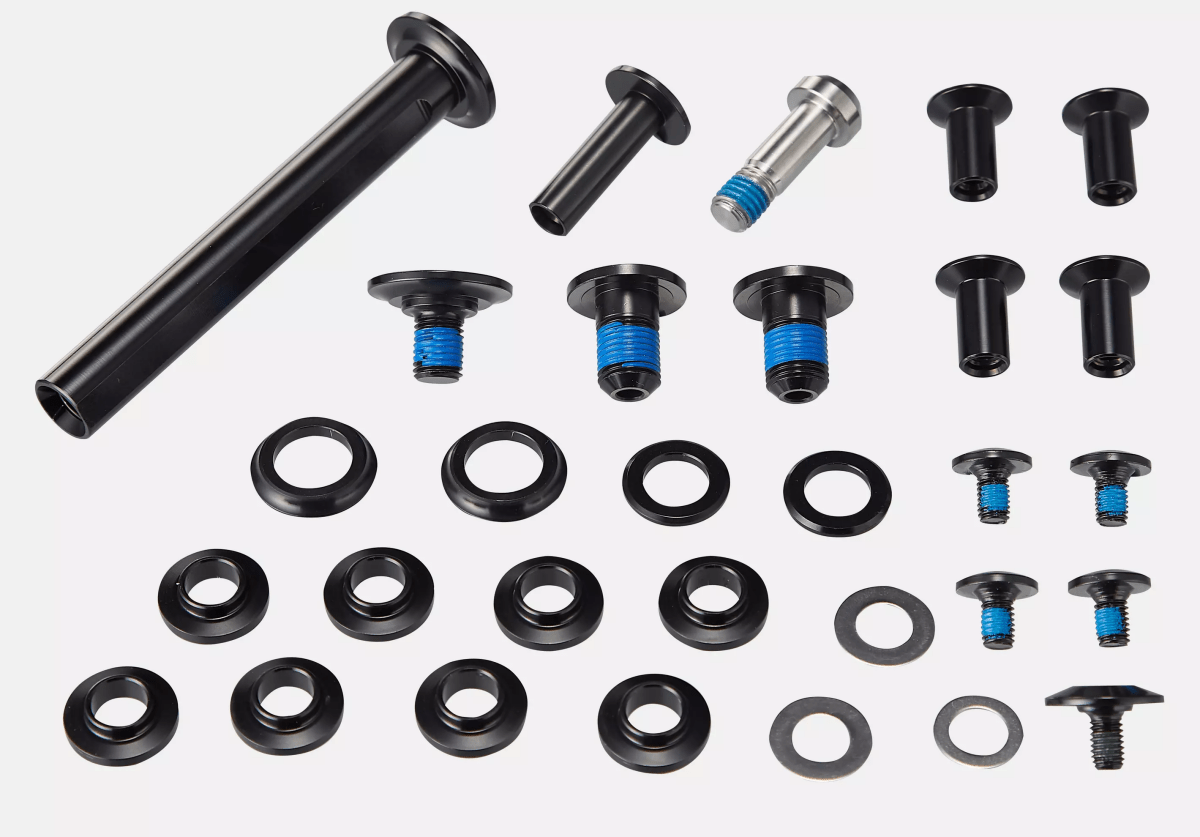

Specialized Epic / Epic EVO Replacement Suspension Pivot Bolt Kit – 2021–2023

Specialized Factory Replacement Suspension Pivot Bolt Kit – Epic / Epic EVO (2021–2023)

This factory replacement suspension pivot bolt kit includes all required bolts, axles, spacers, and washers for servicing the suspension pivots on Specialized Epic and Epic EVO bikes. Designed to OEM specifications, it restores proper alignment, torque retention, and suspension performance.

Kit Contents & Specifications

Main Pivot

• Main pivot axle: 12mm W × 86mm L – Alloy (1 pc)

• Main pivot bolt: 8mm W × 12.2mm L – Alloy

  • Torque: 89 in-lbf (10 Nm) – (1 pc)

• Main pivot spacers:

  • 12.1mm ID × 19.5mm OD × 3mm W – Alloy (2 pcs)

Shock Link to Seat Tube

• Pivot bolts: 10mm W × 16mm L – Alloy

  • Torque: 89 in-lbf (10 Nm) – (2 pcs)

• Pivot spacers:

  • 10.1mm ID × 16.5mm OD × 2mm W – Alloy (2 pcs)

Shock Link to Shock Extension

• Pivot axles: 8mm W × 17.23mm L – Alloy (2 pcs)

• Pivot bolts: 5mm W × 8mm L – Alloy

  • Torque: 53 in-lbf (6 Nm) – (2 pcs)

• Pivot washers:

  • 8mm ID × 16.5mm OD × 2mm W – Alloy (2 pcs)

Shock Link to Seatstay

• Pivot axles: 8mm W × 17.23mm L – Alloy (2 pcs)

• Pivot bolts: 5mm W × 8.6mm L – Alloy

  • Torque: 53 in-lbf (6 Nm) – (2 pcs)

OEM Compatibility

2023

• S-Works Epic EVO LTD – SRAM XX AXS / RockShox Ultimate

• S-Works Epic EVO LTD

• S-Works Epic EVO Frameset

• S-Works Epic EVO – Warranty Frame

• S-Works Epic EVO – SRAM XX1 AXS / RockShox Ultimate

• S-Works Epic EVO

• Epic EVO Pro LTD – SRAM X0 AXS / RockShox Ultimate

• Epic EVO Pro LTD

• Epic EVO Pro – Warranty Frame

• Epic EVO Pro – SRAM X01 AXS / FOX Factory

• Epic EVO Expert

• Epic EVO Comp

• Epic EVO

2022

• S-Works Epic EVO RS

• S-Works Epic EVO Frameset

• S-Works Epic EVO

• Epic EVO Pro

• Epic EVO Expert

• Epic EVO Comp

• Epic EVO

2021

• S-Works Epic EVO Frameset

• S-Works Epic EVO – SRAM XX1 AXS / RockShox Ultimate

• Epic EVO Pro

• Epic EVO Expert

• Epic EVO Comp

• Epic EVO

A complete OEM-spec bolt and spacer kit—ideal for suspension overhauls, replacement of worn hardware, or restoring factory performance on Epic and Epic EVO frames.
