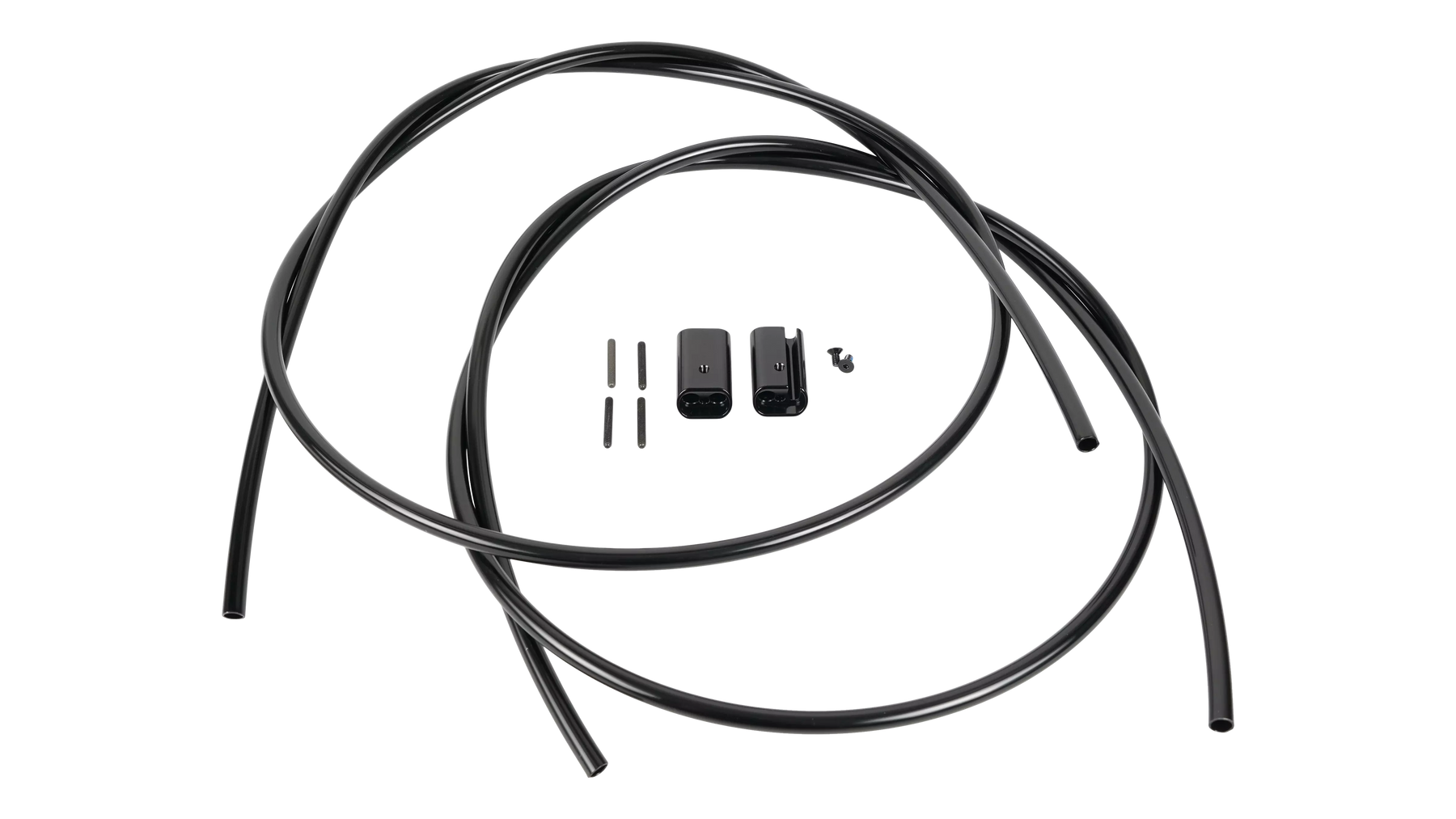

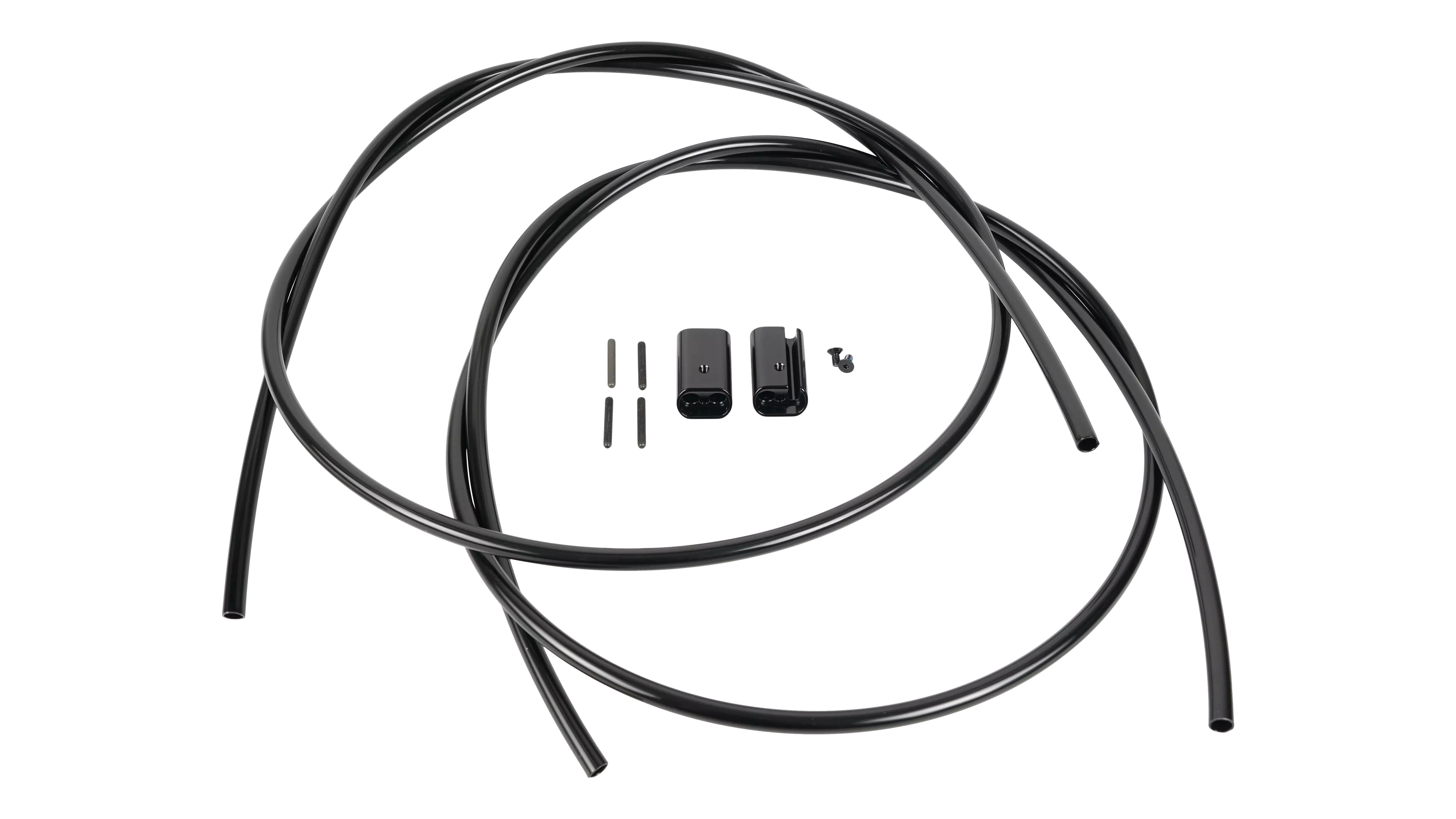

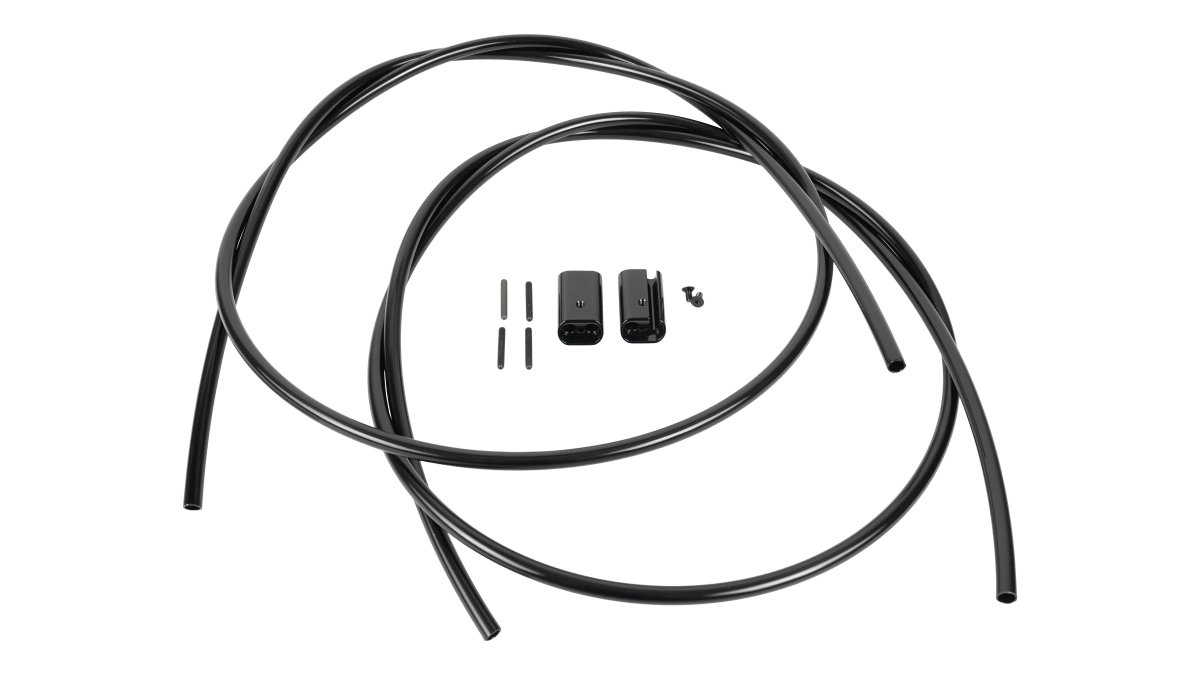

Specialized Internal Cable Routing Headtube Entry Port Kit
Factory OEM | ICR Guide Tubes & Headtube Inserts | S206500008
The Specialized Factory Replacement Internal Cable Routing (ICR) Entry Port Kit is a genuine OEM cable-routing assembly for compatible Specialized carbon frames.
The kit was used on Gen 1 Turbo Levo SL carbon frames and is also specified across select Stumpjumper EVO and Turbo Kenevo SL / Kenevo SL 2 applications. It includes the drive-side and non-drive-side alloy headtube inserts, nylon internal guide tubes, and the mounting and retaining hardware required to restore the original internal cable-routing configuration.
Available from Stage 21 Bikes, your trusted source for hard-to-find Specialized OEM replacement parts.
Key Features
- Genuine Specialized factory OEM replacement kit
- Headtube internal cable routing entry system
- Includes drive-side and non-drive-side alloy inserts
- Machined guide-tube stops for controlled internal routing
- Drive-side insert includes 4mm remote-wire routing channel
- Includes two nylon cable guide tubes
- Includes guide-tube retaining set screws
- Includes headtube insert mounting bolts
- Used across compatible Levo SL, Kenevo SL, and Stumpjumper EVO platforms
- Specialized MPN S206500008
Kit Includes
| Component | Quantity |
|---|---|
| Drive-Side Alloy Headtube Insert | 1 |
| Non-Drive-Side Alloy Headtube Insert | 1 |
| Nylon Guide Tube – 7mm OD × 5.5mm ID | 2 |
| M3 × 0.5 × 20mm Guide-Tube Set Screw | 4 |
| M3 × 0.5 × 6mm Headtube Insert Bolt | 2 |
Specifications
| Specification | Details |
|---|---|
| Brand | Specialized |
| Component | Internal Cable Routing Entry Port Kit |
| Routing Location | Headtube |
| Frame Application | Compatible Carbon Frames |
| Guide Tube OD | 7mm |
| Guide Tube ID | 5.5mm |
| Guide Tube Set Screws | M3 × 0.5 × 20mm |
| Headtube Insert Bolts | M3 × 0.5 × 6mm |
| MPN | S206500008 |
Headtube Insert Details
Drive-Side Insert
- Alloy construction
- Machined stop for one nylon guide tube
- Integrated 4mm routing channel for handlebar remote wiring
Non-Drive-Side Insert
- Alloy construction
- Machined stops for two nylon guide tubes
Nylon Guide Tubes
- Outside Diameter: 7mm
- Inside Diameter: 5.5mm
- Quantity: 2
OEM Compatibility
2026
- Turbo Kenevo SL 2 Expert
- Turbo Kenevo SL 2 Comp
- S-Works Turbo Kenevo SL 2 Frameset
2025
- Turbo Kenevo SL 2 Öhlins Coil
- Turbo Kenevo SL 2 Expert
- Turbo Kenevo SL 2 Comp
- S-Works Turbo Kenevo SL 2 Frameset
2024
- Turbo Kenevo SL 2 Expert
- Turbo Kenevo SL 2 Comp
- Stumpjumper EVO Pro T-Type – SRAM X0 AXS / FOX Factory
- Stumpjumper EVO Expert – SRAM GX AXS / FOX Performance Elite
- S-Works Turbo Kenevo SL Frameset 2
- S-Works Stumpjumper EVO T-Type – SRAM X0 AXS / FOX Factory
- S-Works Stumpjumper EVO Frameset – FOX FLOAT X2 Factory
2023
- Turbo Kenevo SL 2 Expert
- Turbo Kenevo SL 2 Comp
- Stumpjumper EVO Pro – SRAM X01 AXS / FOX Factory
- Stumpjumper EVO LTD – SRAM GX Eagle AXS / RockShox Ultimate
- Stumpjumper EVO Frameset
- Stumpjumper EVO Expert – SRAM GX Eagle AXS / FOX Performance Elite
- Stumpjumper EVO Comp – SRAM GX Eagle / FOX Rhythm
- S-Works Turbo Kenevo SL Frameset 2
- S-Works Turbo Kenevo SL 2
- S-Works Stumpjumper EVO Frameset – FOX FLOAT X Factory
- S-Works Stumpjumper EVO – SRAM XX1 AXS / FOX Factory
2022
- Turbo Kenevo SL Expert
- Turbo Kenevo SL Comp
- Stumpjumper EVO Expert – SRAM X01 / FOX Performance Elite
- Stumpjumper EVO Pro
- Stumpjumper EVO Frameset
- Stumpjumper EVO Expert RS
- Stumpjumper EVO Comp – SRAM GX Eagle / FOX Rhythm
- S-Works Turbo Kenevo SL Frameset
- S-Works Turbo Kenevo SL
- S-Works Stumpjumper EVO Frameset – FOX FLOAT X Factory
- S-Works Stumpjumper EVO
2021
- Turbo Levo SL Expert Carbon
- Turbo Levo SL Comp Carbon
- Stumpjumper EVO Pro
- Stumpjumper EVO LTD
- Stumpjumper EVO Expert
- Stumpjumper EVO Comp
- S-Works Turbo Levo SL Frameset
- S-Works Turbo Levo SL
- S-Works Stumpjumper EVO Frame
- S-Works Stumpjumper EVO
2020
- Turbo Levo SL Expert Carbon
- Turbo Levo SL Comp Carbon
- S-Works Turbo Levo SL Founder's Edition
- S-Works Turbo Levo SL
- S-Works Turbo Levo SL – Warranty Frame
Installation Notes
- The M3 × 0.5 × 20mm set screws secure the nylon guide tubes within the headtube inserts and at the chainstay exit ports.
- The M3 × 0.5 × 6mm bolts secure the alloy headtube inserts to the frame.
- Route the nylon guide tubes according to the original frame configuration and Specialized service documentation.
- Avoid overtightening the small M3 hardware.
Compatibility Notes
- Although originally described for Gen 1 Turbo Levo SL carbon frames, Specialized also lists S206500008 for select Stumpjumper EVO and Turbo Kenevo SL / Kenevo SL 2 applications.
- Compatibility should therefore be confirmed by MPN S206500008, not by model family alone.
- Intended for compatible carbon-frame internal cable routing systems.
- Includes the routing inserts, guide tubes, and specified hardware only.
- Brake hoses, shift housing, remote wiring, and other frame-routing components are not included.
- The unrelated internal catalog text in the 2022 compatibility data has been removed.
Factory-Correct Internal Routing Service
Internal cable-routing hardware is shaped specifically for the frame's entry ports and guide paths. Missing, damaged, or incorrect inserts can lead to poor hose alignment, cable movement, or an improper frame interface.
Genuine Specialized S206500008 provides the correct alloy headtube inserts, nylon routing tubes, and M3 hardware needed to restore the original ICR setup on compatible Specialized frames.
