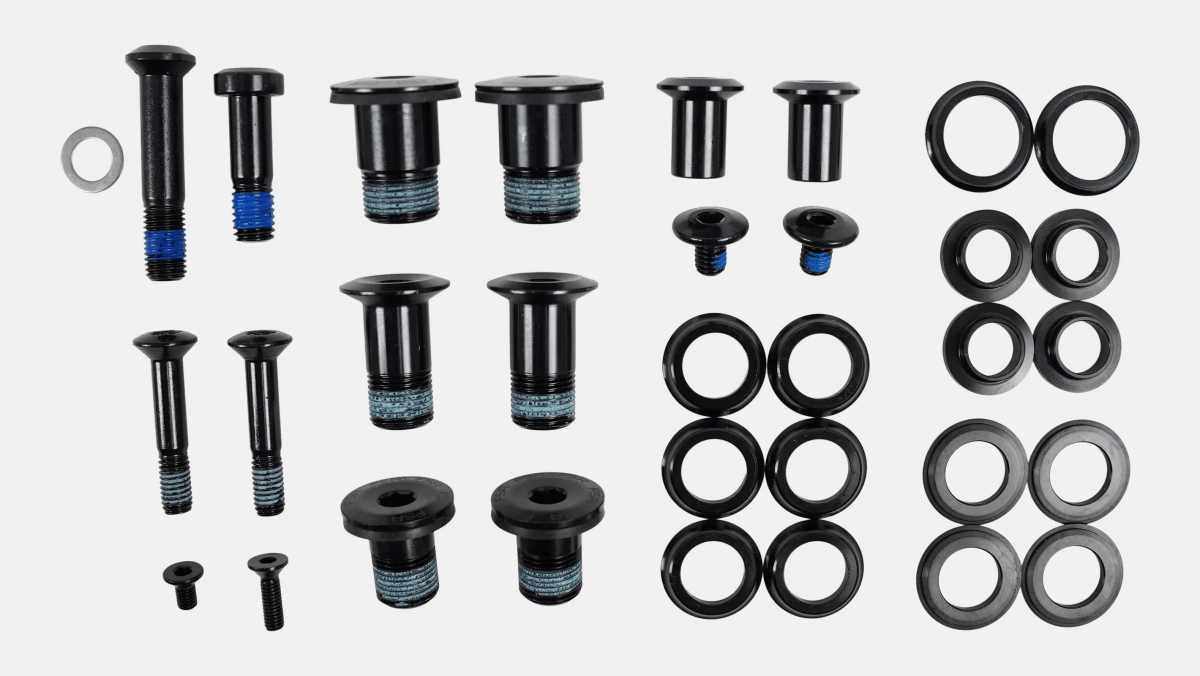

Specialized Stumpjumper Alloy Suspension Pivot Replacement Bolt Kit

Specialized Factory Replacement Suspension Pivot Bolt Kit – Stumpjumper Alloy (2021–2024)

This factory replacement suspension pivot bolt kit includes all required bolts, axles, and pivot spacers for servicing the rear suspension on Specialized Stumpjumper Alloy and Stumpjumper EVO Alloy frames. Manufactured to OEM specifications, it restores proper alignment, torque retention, and suspension performance.

Kit Contents & Torque Specifications

Main Pivot (Chainstay)

• Drive-side bolt:

  • Reverse thread

  • 15mm W × 22mm L – Alloy

  • Torque: 210 in-lbf (24 Nm) – 1 pc

• Non-drive-side bolt:

  • 15mm W × 22mm L – Alloy

  • Torque: 210 in-lbf (24 Nm) – 1 pc

Seatstay / Horst Link

• Seatstay Horst link pivot bolts:

  • 6mm W × 32.5mm L – Steel

  • Torque: 90 in-lbf (10 Nm) – 2 pcs

Shock Link Hardware

• Shock link to seat tube pivot bolts:

  • 12mm W × 17mm L – Alloy

  • Torque: 180 in-lbf (20 Nm) – 2 pcs

• Shock link to shock extension pivot bolts:

  • 6mm W × 8mm L – Steel

  • Torque: 60 in-lbf (7 Nm) – 2 pcs

• Shock link to seatstay pivot bolts:

  • 12mm W × 27mm L – Steel

  • Torque: 180 in-lbf (20 Nm) – 2 pcs

Additional Components

• Includes all required axle and pivot spacers

• Refer to frame schematic for exact placement

Sold Separately

• Rear shock mounting hardware kit: Specialized part S204200032

OEM Compatibility

2024

• Stumpjumper EVO Elite Alloy

• Stumpjumper EVO Comp Alloy

• Stumpjumper EVO Alloy LTD

• Stumpjumper EVO Alloy Frameset

• Stumpjumper Comp Alloy

• Stumpjumper Alloy LTD

• Stumpjumper Alloy

2023

• Stumpjumper EVO Elite Alloy – SRAM GX Eagle / RockShox Ultimate

• Stumpjumper EVO Comp Alloy – SRAM NX Eagle / FOX Rhythm

• Stumpjumper EVO Alloy Frameset

• Stumpjumper Comp Alloy – SRAM NX Eagle / FOX Rhythm

• Stumpjumper Alloy – SRAM SX Eagle / RockShox or X-Fusion

2022

• Stumpjumper EVO Elite Alloy

• Stumpjumper EVO Comp Alloy – SRAM NX Eagle / FOX Rhythm

• Stumpjumper EVO Alloy LTD Frameset

• Stumpjumper EVO Alloy Frameset

• Stumpjumper Comp Alloy – SRAM NX Eagle / FOX Rhythm

• Stumpjumper Alloy – SRAM SX Eagle / RockShox or X-Fusion

2021

• Stumpjumper Comp Alloy

• Stumpjumper Alloy

A complete OEM-spec pivot hardware solution ideal for suspension overhauls or replacing worn hardware on Stumpjumper Alloy and EVO Alloy frames.
