Specialized Stumpjumper EVO Carbon Replacement Suspension Pivot Bolt Kit

Specialized Factory Replacement Suspension Pivot Bolt Kit – Stumpjumper EVO Carbon (2021–2024)

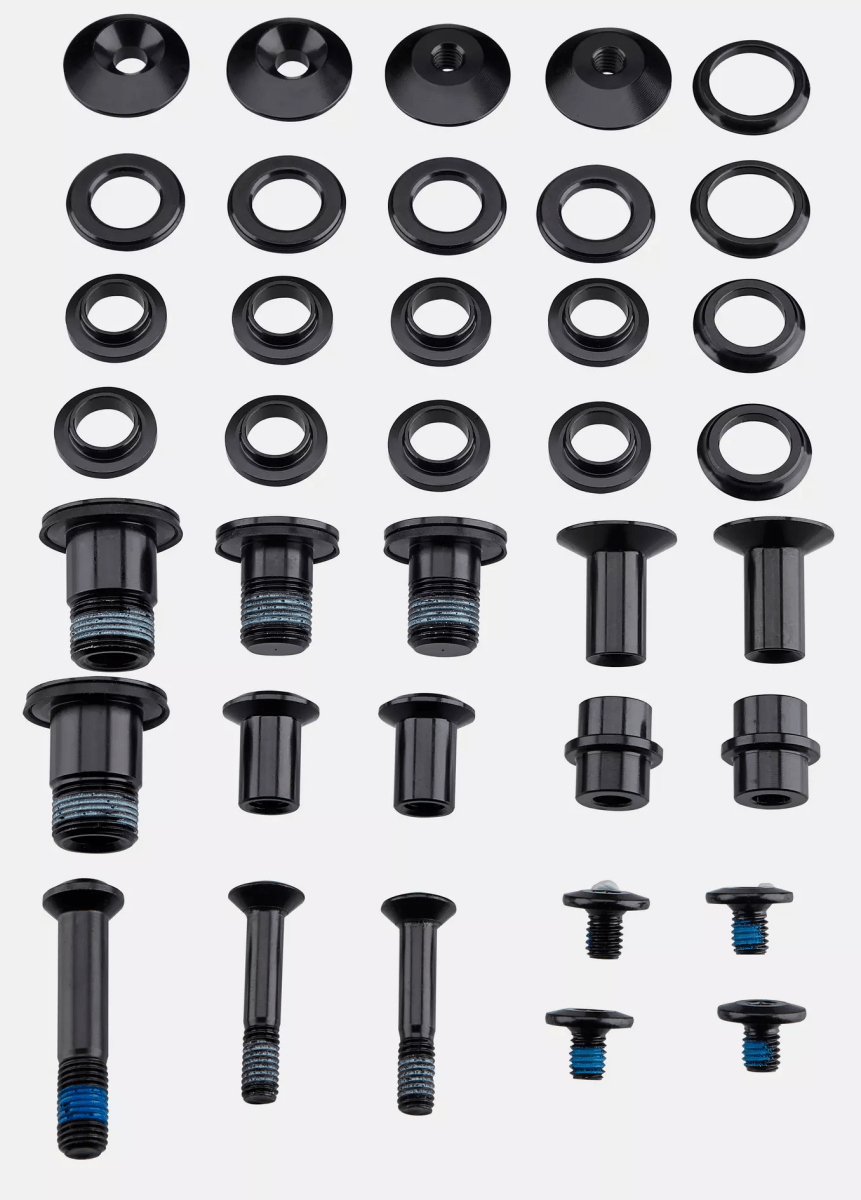

This complete factory replacement suspension pivot bolt kit includes all required bolts, axles, and spacers for servicing the rear suspension on Specialized Stumpjumper EVO Carbon frames. Built to OEM specifications, it restores proper alignment, torque retention, and suspension performance.

Note: Bearings are not included. Refer to the frame schematic for spacer placement.

Kit Contents & Torque Specifications

Main Pivot (Chainstay)

• Drive-side bolt:

  • Reverse thread

  • 15mm W × 22mm L – Alloy

  • Torque: 210 in-lbf (24 Nm) – 1 pc

• Non-drive-side bolt:

  • 15mm W × 22mm L – Alloy

  • Torque: 210 in-lbf (24 Nm) – 1 pc

Seatstay / Horst Link

• Seatstay Horst link pivot bolts:

  • 6mm W × 32.5mm L – Steel

  • Torque: 90 in-lbf (10 Nm) – 2 pcs

Shock Link Hardware

• Shock link to seat tube pivot bolts:

  • 12mm W × 17mm L – Alloy

  • Torque: 180 in-lbf (20 Nm) – 2 pcs

• Shock link to shock extension pivot axles:

  • 10mm W × 14mm L – Steel

  • Torque: 60 in-lbf (7 Nm) – 2 pcs

• Shock link to shock extension pivot bolts:

  • 6mm W × 8mm L – Steel

  • Torque: 60 in-lbf (7 Nm) – 2 pcs

• Shock link to seatstay pivot axles:

  • 10mm W × 17.5mm L – Steel

  • Torque: 60 in-lbf (7 Nm) – 2 pcs

Forward Shock Eye

• Forward shock eye bolt:

  • 8mm W × 42mm L – Steel

  • Torque: 90 in-lbf (10 Nm) – 1 pc

Additional Components

• Includes all required axle and pivot spacers

• Refer to frame schematic for correct installation

OEM Compatibility2024

• Stumpjumper EVO Pro T-Type – SRAM X0 AXS / FOX Factory

• Stumpjumper EVO Expert – SRAM GX AXS / FOX Performance Elite

• S-Works Stumpjumper EVO T-Type – SRAM X0 AXS / FOX Factory

• S-Works Stumpjumper EVO Frameset – FOX FLOAT X2 Factory

• S-Works Stumpjumper EVO – Warranty Frame

2023

• Stumpjumper EVO Pro – SRAM X01 AXS / FOX Factory

• Stumpjumper EVO LTD – SRAM GX Eagle AXS / RockShox Ultimate

• Stumpjumper EVO Frameset

• Stumpjumper EVO Expert – SRAM GX Eagle AXS / FOX Performance Elite

• Stumpjumper EVO Comp – SRAM GX Eagle / FOX Rhythm

• S-Works Stumpjumper EVO Frameset – FOX FLOAT X Factory

• S-Works Stumpjumper EVO – SRAM XX1 AXS / FOX Factory

• S-Works Stumpjumper EVO – Warranty Frame

2022

• Stumpjumper EVO Pro

• Stumpjumper EVO Expert RS

• Stumpjumper EVO Expert – SRAM X01 / FOX Performance Elite

• Stumpjumper EVO Comp – SRAM GX Eagle / FOX Rhythm

• Stumpjumper EVO Frameset

• S-Works Stumpjumper EVO Frameset – FOX FLOAT X Factory

• S-Works Stumpjumper EVO

• S-Works Stumpjumper EVO – Warranty Frame

2021

• Stumpjumper EVO Pro

• Stumpjumper EVO LTD

• Stumpjumper EVO Expert

• Stumpjumper EVO Comp

• S-Works Stumpjumper EVO Frame

• S-Works Stumpjumper EVO

• SJ EVO S-Works – Warranty Frame

A complete OEM-spec pivot hardware solution ideal for suspension overhauls, crash replacement, or restoring factory-level performance on Stumpjumper EVO Carbon frames.
