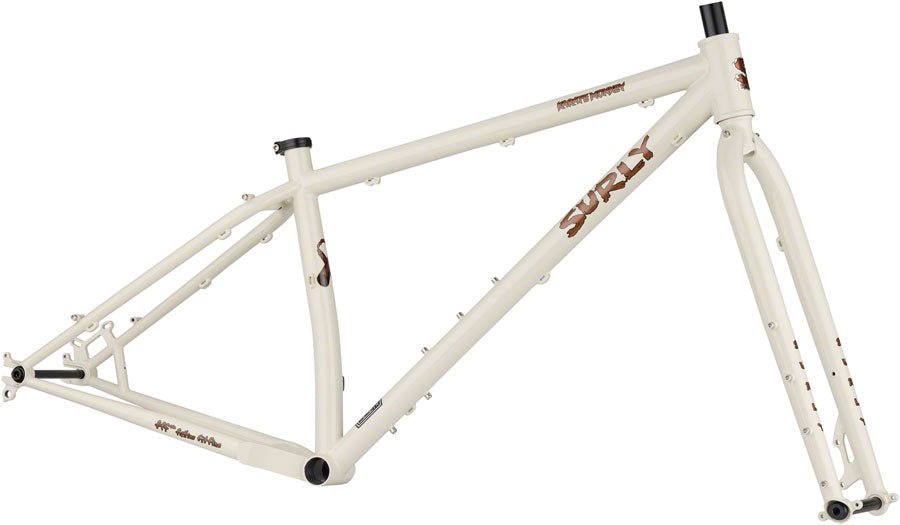

Surly Karate Monkey Frameset Snow Mold White XS
Rugged durability meets trail-ready versatility. This frameset pairs a 100% Surly Chromoly steel frame with a steel fork for a responsive, long-lasting backbone built to tackle aggressive singletrack, bikepacking routes, and winter gnarl. Its progressive trail geometry and the custom trumpet tubeset deliver a balanced ride that feels planted on chunky lines and stable on long climbs.
Key Specifications
- Frame material: 100% Chromoly steel with double-butted main triangle
- Fork: Steel rigid fork included
- Dropouts: Adjustable Gnot-Boost rear with 145mm spacing; compatible with 142/148/12mm thru-axles and 135mm with washers
- Internal routing: Dropper post routing for 30.9mm seatpost
- Headset / tubes: 44mm headtube
- Tire clearance: Up to 29 x 2.55 or 27.5 x 3
- Axles: Front 15mm thru x 110mm; Rear 12mm thru x 145mm
- Color / Size: Snow Mold White, X-Small
Use Cases and Fit
Designed for riders who want a single-cycle solution for muddy trails, snow-ready adventures, and light bikepacking. Internal dropper routing keeps cables tidy in wet conditions, while the steel construction absorbs chatter for a smoother feel over rough terrain. With broad tire clearance and adaptable dropout spacing, this frameset grows with your evolving riding style—without sacrificing stiffness or control.
| Rear Axle | 12mm Thru x 145mm |
| Brake Type | Disc |
| TT (Effective) | 560 |
| Fork Type | Rigid |
| Fork Material | Steel |
| Frame Material | Steel |
| Frame Type | Rigid |
| Front Axle | 15mm Thru x 110mm |
| Color | Snow Mold White |
| Mfg Size | X-Small |
| Platform | Karate Monkey |
| Wheel Size | 29" |
| Defined Color | White |
| Size | X-Small |
