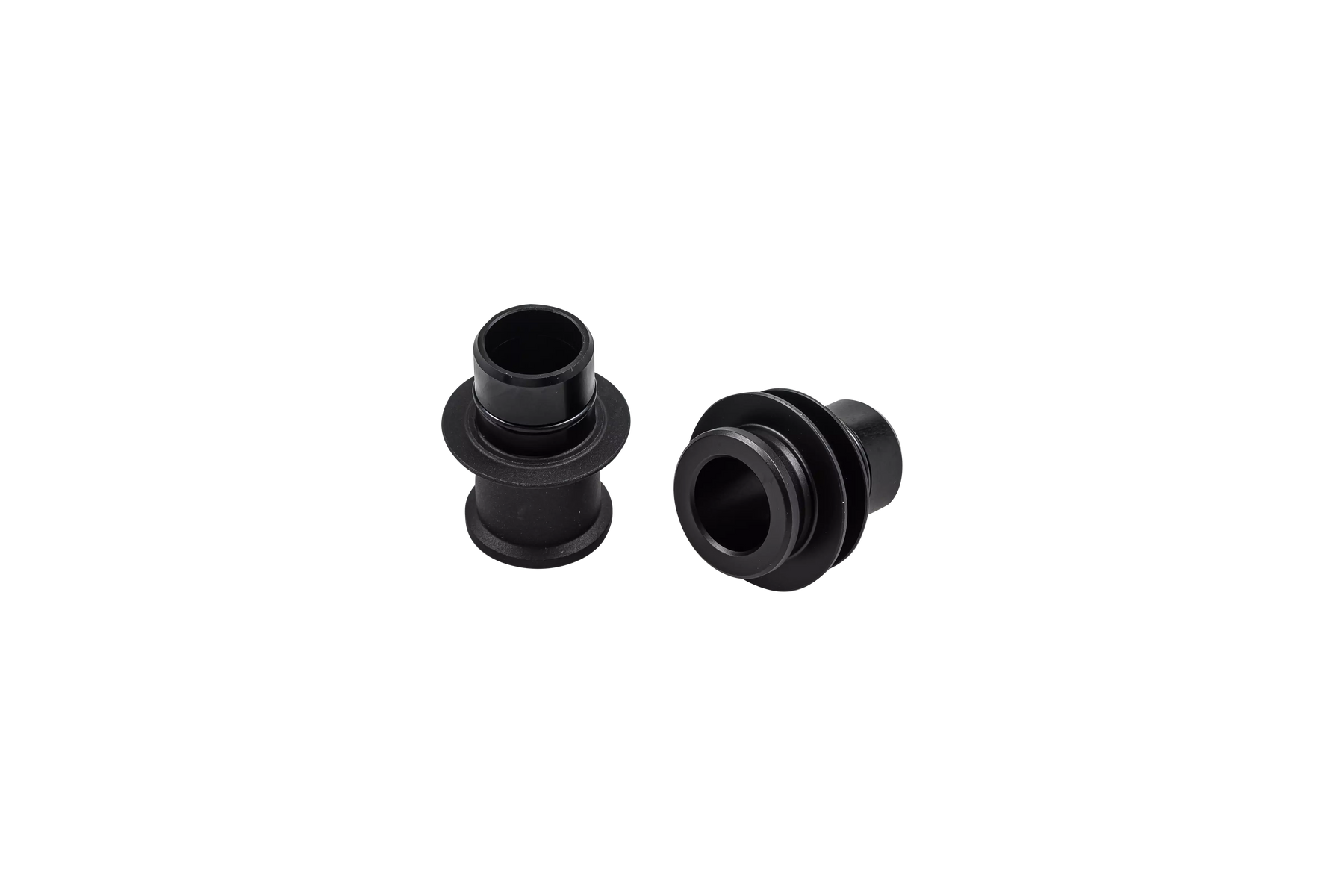

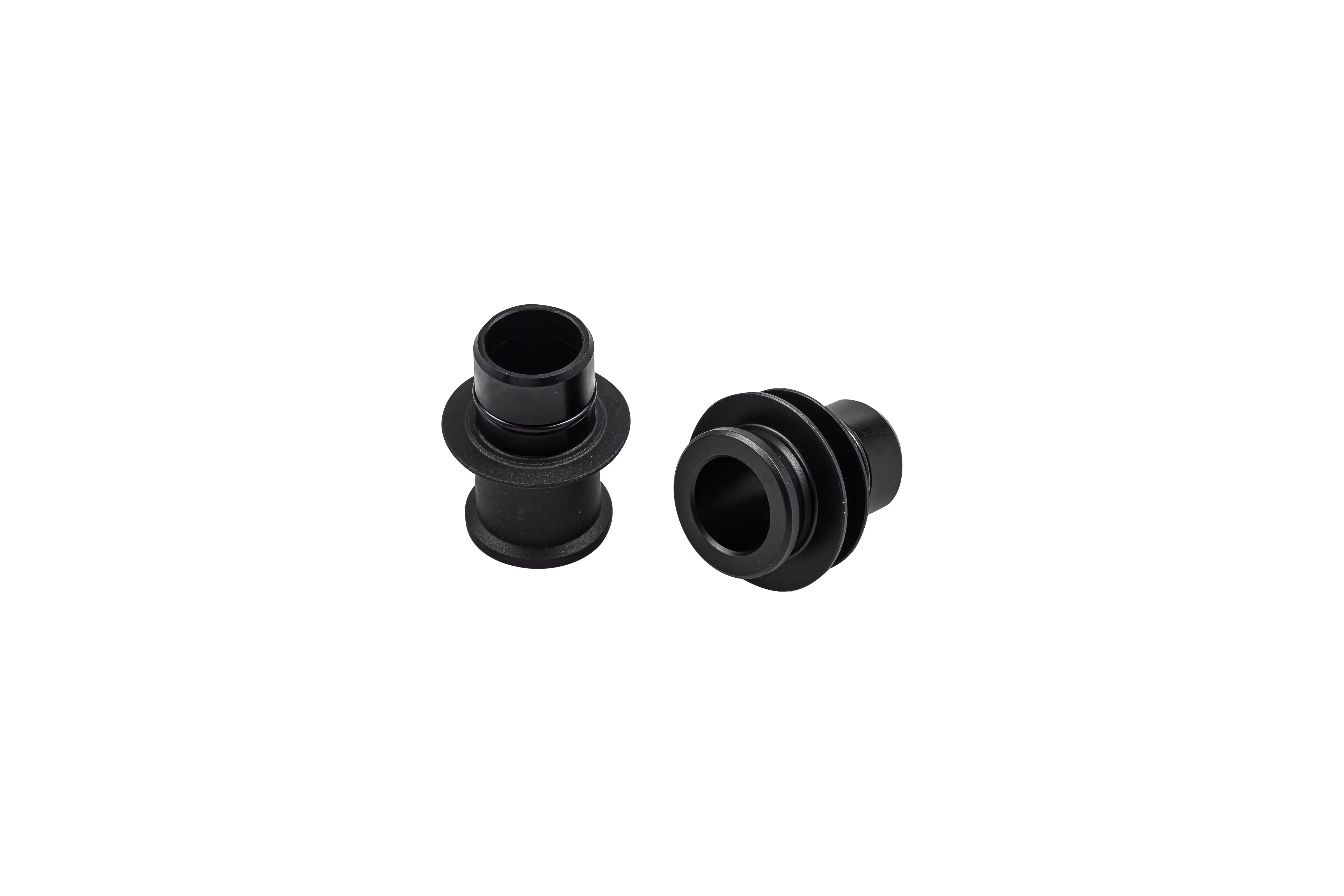

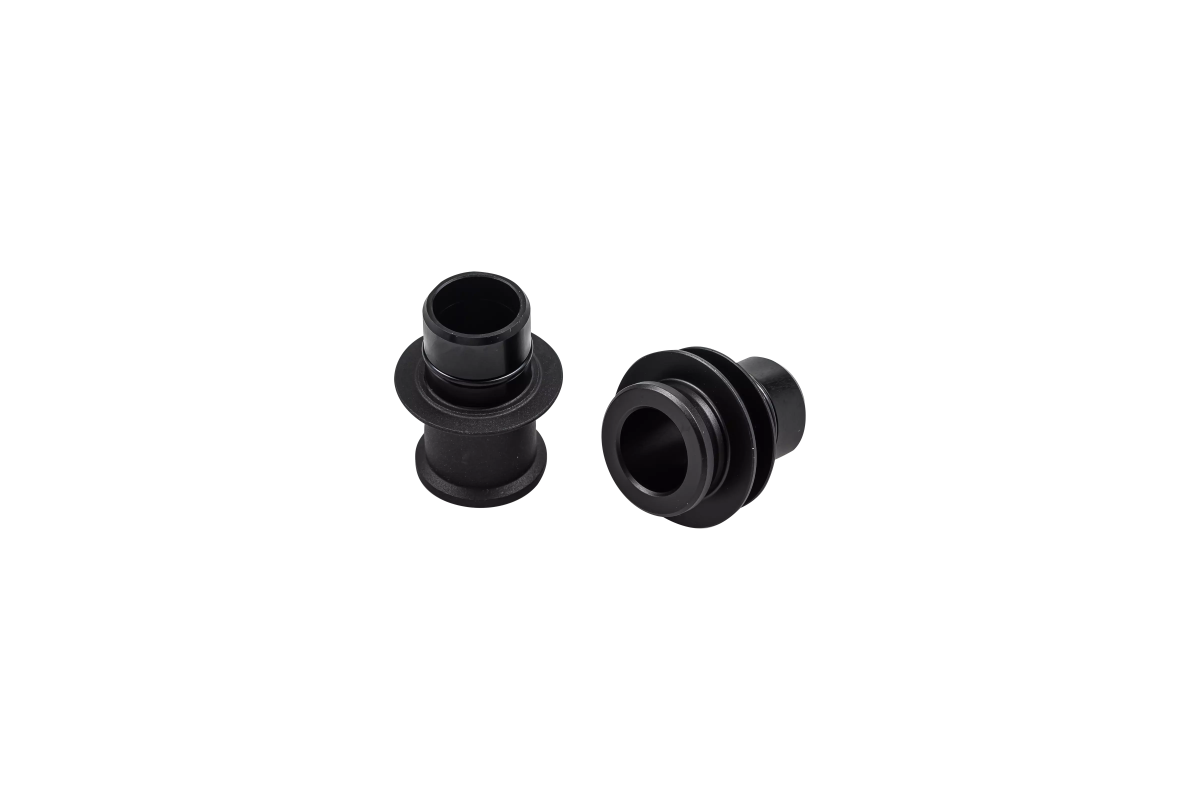

Specialized Roval DT Swiss LF13 Front Hub End Cap Set
Factory OEM | 12x100mm Thru-Axle | 19mm OD | S225900004
The Specialized Factory Replacement Roval Front Hub End Cap Set is the genuine OEM replacement for the Roval Low-Flange 13 (LF13) road disc front hub.
Designed for a 12x100mm thru-axle configuration, these DT Swiss-manufactured end caps feature a 19mm outside diameter and include both the drive-side and non-drive-side end caps required to restore the original factory hub configuration.
Used across select premium Roval road, gravel, and all-road wheel systems, including Rapide CLX II, Alpinist CLX II, and Terra CLX II applications.
Available from Stage 21 Bikes, your trusted source for genuine Specialized components, replacement parts, and performance accessories.
Key Features
- Genuine Specialized / Roval factory replacement part
- DT Swiss manufactured hub components
- Designed for the Roval Low-Flange 13 (LF13) front hub
- 12x100mm road thru-axle configuration
- 19mm outside diameter
- Includes drive-side and non-drive-side end caps
- Direct replacement for the original factory end caps
- Used on select premium Roval road and gravel wheel systems
Specifications
| Specification |
Details |
| Brand |
Specialized / Roval |
| Manufacturer |
DT Swiss |
| Component |
Front Hub End Cap Set |
| Hub |
Roval Low-Flange 13 (LF13) |
| Axle Type |
Thru-Axle |
| Axle Size |
12x100mm |
| End Cap OD |
19mm |
| Drive-Side End Cap |
1 Included |
| Non-Drive-Side End Cap |
1 Included |
| Specialized MPN |
S225900004 |
| DT Swiss Part # |
HWAXXX00S5201C / HWA11100S5204S |
Kit Includes
- 1 × Drive-Side Front Hub End Cap
- 1 × Non-Drive-Side Front Hub End Cap
Quantity: 2 end caps total.
Roval Wheel Applications
Factory applications include select:
- Roval Rapide CLX II
- Roval Alpinist CLX II
- Roval Terra CLX II
- Roval LF13-equipped road and gravel wheel systems
OEM Compatibility
2027
- S-Works Turbo Creo 2 – SRAM RED / XX1 Eagle AXS
- S-Works Aethos 2 – SRAM RED AXS
2026
- S-Works Turbo Creo 2 – SRAM RED / XX1 Eagle AXS
- S-Works Tarmac SL8 LTD – Red Bull 2025 TdF
- S-Works Tarmac SL8 – Shimano Dura-Ace Di2
- S-Works Crux – SRAM RED XPLR
- Diverge 4 Pro LTD – SRAM RED XPLR
2025
- S-Works Turbo Creo 2 – SRAM RED / XX1 Eagle AXS
- S-Works Tarmac SL8 LTD – Red Bull – BORA – hansgrohe Edition
- S-Works Tarmac SL8 LTD – Forward 50 Collection
- S-Works Roubaix SL8 – SRAM RED AXS
- S-Works Roubaix SL8 – Shimano Dura-Ace Di2
- S-Works Crux LTD – SRAM RED XPLR
- S-Works Crux – SRAM RED XPLR
- S-Works Aethos – SRAM RED AXS
- Rapide CLX II Team
- Aethos Pro – SRAM Force eTap AXS
2024
- Terra CLX II
- S-Works Turbo Creo 2 – SRAM RED / XX1 Eagle AXS
- S-Works Roubaix SL8 LTD – SRAM RED AXS
- S-Works Roubaix SL8 – SRAM RED AXS
- S-Works Crux – SRAM RED XPLR eTap AXS
- S-Works Aethos LTD – SRAM RED AXS
- S-Works Aethos – SRAM RED eTap AXS
- Roval Alpinist CLX II
- Aethos Pro – SRAM Force eTap AXS
2023
- S-Works Turbo Creo 2
- S-Works Roubaix – Shimano Dura-Ace Di2
- S-Works Crux – SRAM RED XPLR eTap AXS
Compatibility Notes
- Designed specifically for the Roval Low-Flange 13 (LF13) road disc front hub.
- For 12x100mm thru-axle applications.
- End caps measure 19mm OD.
- Includes both the drive-side and non-drive-side end caps.
- These are front hub components and should not be confused with rear hub/freehub end caps.
- Verify the hub model and DT Swiss/Specialized part numbers before ordering.
Why Choose Genuine Roval / DT Swiss Replacement Parts?
Hub end caps determine the interface between the wheel, thru-axle, and fork, making correct dimensions and hub compatibility essential. Genuine Specialized S225900004 components provide the original DT Swiss LF13 hub fitment and 12x100mm configuration without relying on generic or incorrectly sized adapters.
For servicing a compatible Roval front wheel or replacing worn, damaged, or missing end caps, this factory set restores the original hub configuration.
