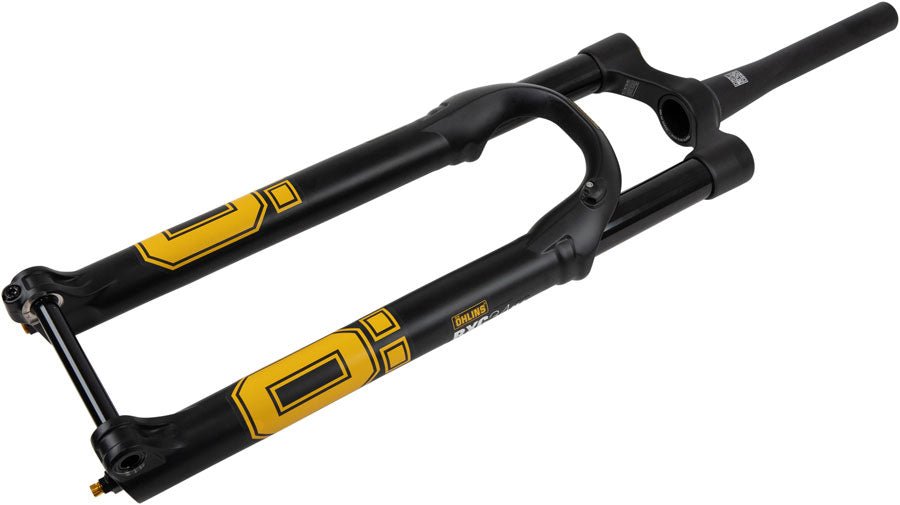

Ohlins RXC34 m.1 Suspension Fork - 29" 120mm 15mm x 110mm 44mm Offset OTX14 Damper Air Spring BLK
Quantity:
Pickup available at Stage 21 Bikes
Usually ready in 24 hours
Ohlins RXC34 m.1 Suspension Fork - 29" 120mm 15mm x 110mm 44mm Offset OTX14 Damper Air Spring BLK
Stage 21 Bikes
Pickup available, usually ready in 24 hours
23582 Moulton Parkway
#111
Laguna Woods CA 92637
United States
Choose options
Quantity:
Unleash the next level of racing performance with the latest innovation in Ohlins front suspension – the RXC34 m.1 XC fork. Equipped with their race-proven floating axle design the RXC34 m.1 features a chassis with a stiff yet lightweight aluminum crown construction providing precise steering and predictable performance. The RXC34 m.1 incorporates an all-new damper and updated air spring to further enhance speed and control on technical cross-country tracks. As part of the Öhlins XC suspension system the RXC34 m.1 boasts a rider-friendly system to adjust air spring progressiveness and stroke. And with their race proven setting bank you’ll be able to fine-tune the fork to your unique riding style and bike linkage.Uses the new XC-optimized OTX14 damper that's been extensively designed to provide a slim lightweight damper packed with technology Highly adjustable with race-proven setting bank to match riding style and bike Two-chamber air spring feature a large negative air chamber balanced with the damper’s characteristics in the three different ride modes – open pedal and lockout Creates the initial movement required for superior traction while retaining best-in-class predictable support when pushing hard 12 clicks of LSC and 12 Clicks of rebound Up to 5 positive volume spacers to adjust progressiveness (depending on travel) Up to 7 negative spacers to adjust initial sensitivity 15mm x 110mm boost floating thru-axle axle design
| Steerer Type | Tapered |
| Lockout Switch | Crown |
| Brake Type | Post Mount 180 |
| Negative Spring | Air |
| Travel (mm) | 120 |
| Offset | 44 |
| Axle to Crown Length | 531 |
| Front Axle | 15mm Thru x 110mm |
| Maximum Tire Width | 66 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Black |
| Crown Race | 40 |
| Weight | 1598 |
| Wheel Size | 29" |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Air |
| keyword search | Suggested Order |
| Stanchion Diameter | 34 |
