Specialized Front Thru - Axle Adjustable Lever DT Swiss RWS M12X1.0PX117 Black - Specialized

Specialized Front Thru-Axle Adjustable Lever DT Swiss RWS

$43.00
SKU: S160200001
Pickup currently unavailable at Stage 21 Bikes

Specialized Front Thru-Axle Adjustable Lever DT Swiss RWS

Stage 21 Bikes

Pickup currently unavailable

23582 Moulton Parkway
#111
Laguna Woods CA 92637
United States

+19497163363

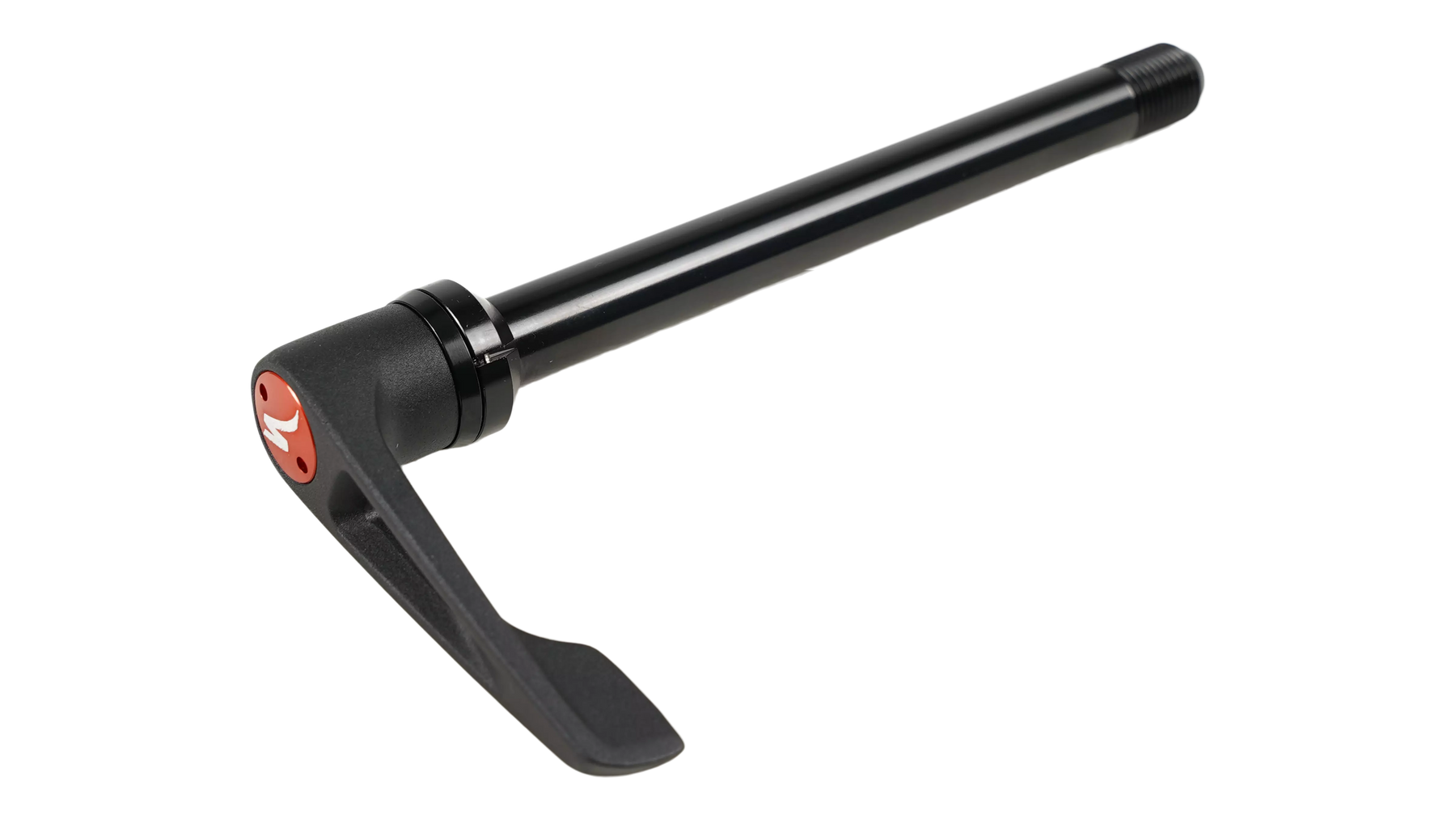

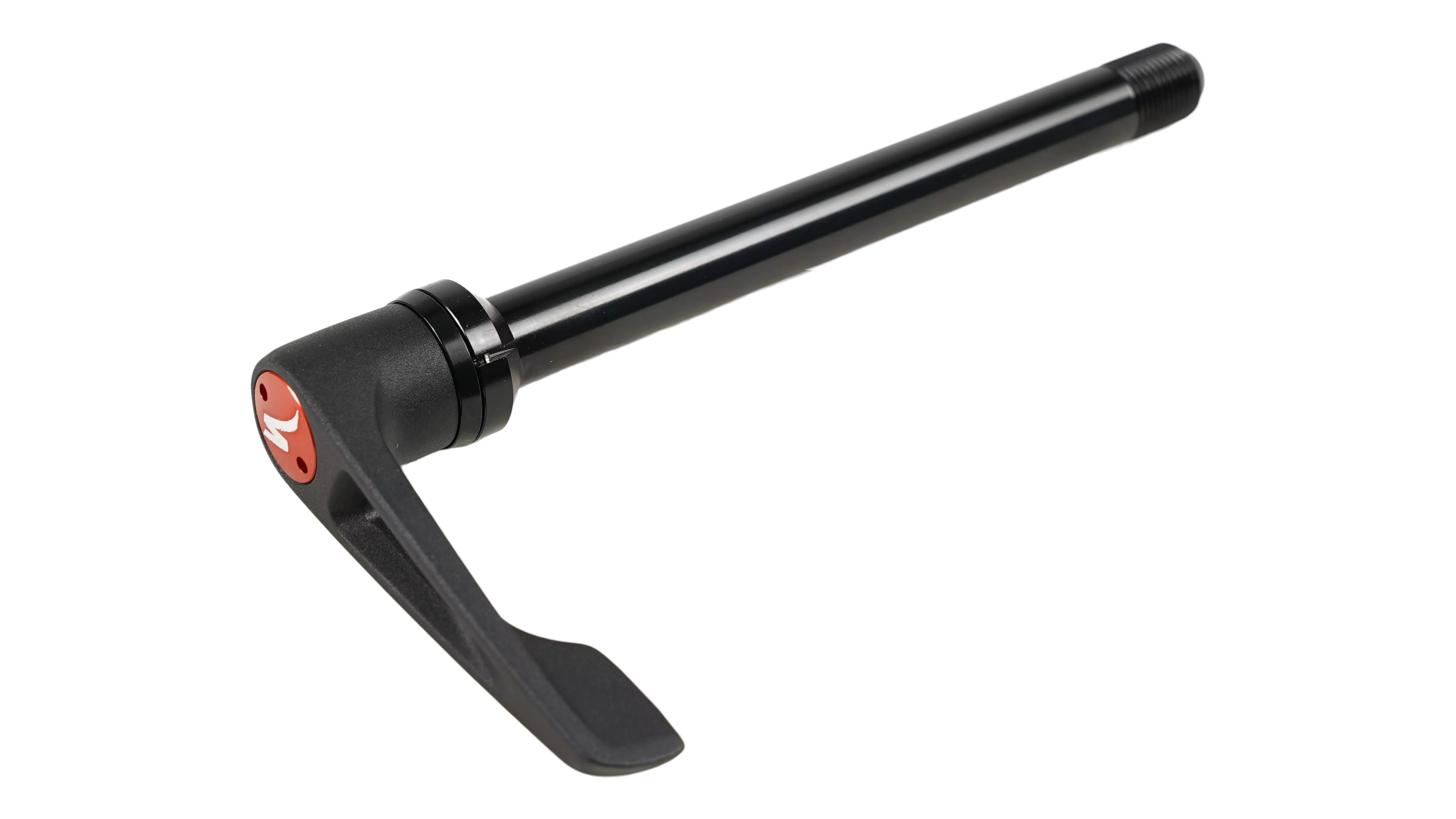

DT Swiss RWS Front Thru-Axle – Specialized Road Disc (100x12mm)

Part Number: HWQXXX00S6708C

DT Swiss RWS (Ratchet Wheelmounting System) front thru-axle designed for Specialized disc brake road bikesusing 100mm front hub spacing. Features DT Swiss’s tool-free adjustable position lever, allowing precise lever placement after tightening for optimal clearance and aesthetics.

Specifications

  • Hub Spacing: 100 x 12mm (Front)

  • Overall Length: 117mm

  • Thread Pitch: M12 x 1.0

  • Lever Type: Adjustable Position Lever (tool-free)

  • System: DT Swiss RWS

  • Material: Alloy axle with steel internals

  • Brake Compatibility: Disc brake only

Features

  • Adjustable lever position after tightening

  • Quick, tool-free installation and removal

  • Increased clamping force compared to standard thru-axles

  • Secure interface designed for high-performance road disc applications

  • Genuine DT Swiss factory replacement component

Compatibility Notes

  • For Specialized road bikes with 12x100mm front thru-axle forks

  • Not compatible with 15mm MTB forks or quick-release systems

  • Thread pitch must match M12x1.0 (verify before installation)
