Specialized Stumpjumper EVO Horst Pivot Geometry Adjust Kit OEM

Specialized Stumpjumper / Stumpjumper EVO Horst Pivot Geometry Adjust Kit – OEM Replacement

This Specialized factory geometry adjust kit includes all required hardware to service, replace, or restore the Horst Link geometry adjustment system on compatible Stumpjumper and Stumpjumper EVO frames. Designed to OEM specifications, this kit restores proper pivot alignment while allowing riders to fine-tune frame geometry exactly as intended by Specialized. Ideal for suspension service, worn hardware replacement, or geometry reset after heavy riding.

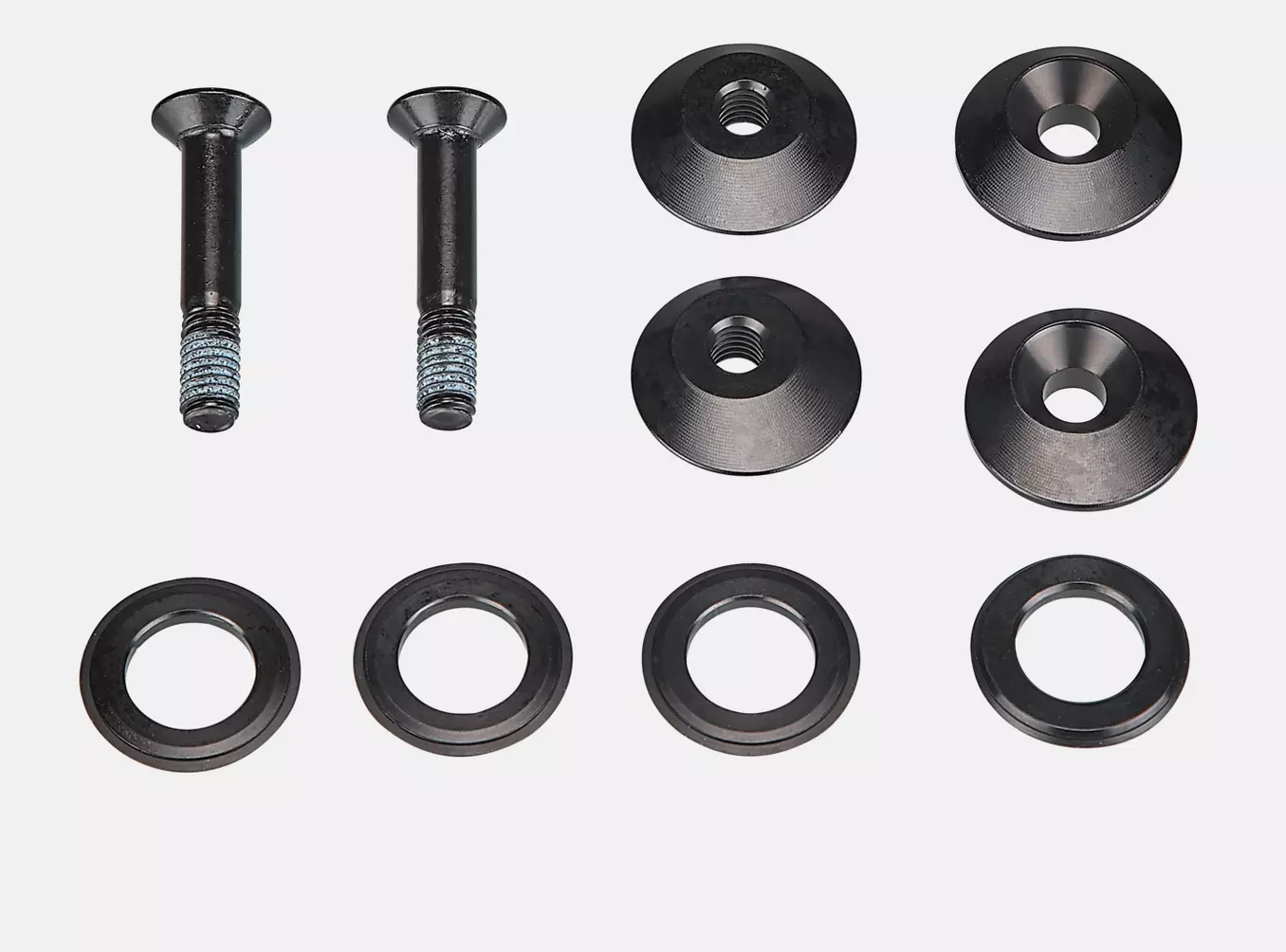

Kit Contents

• Horst Pivot Bearing Spacers
  Quantity: 4 pcs

• Inner Threaded Geometry Adjust Flip-Chips
  Quantity: 2 pcs

• Outer Geometry Adjust Flip-Chips
  Quantity: 2 pcs

• Horst Link Pivot Bolts
  Quantity: 2 pcs

Features & Benefits

• Genuine Specialized OEM geometry hardware

• Restores proper Horst Link alignment and suspension performance

• Enables factory-designed geometry adjustment range

• Ideal for worn, damaged, or missing pivot hardware

• Perfect for frame service, rebuilds, or suspension overhauls

Compatibility (OEM Use)

2023

• Stumpjumper Comp Alloy

• Stumpjumper Alloy

2022

• Stumpjumper EVO Comp Alloy

2021

• Stumpjumper EVO Pro

• Stumpjumper EVO LTD

• Stumpjumper EVO Expert

• Stumpjumper EVO Comp

• SJ EVO SW – Warranty Frame

• S-Works Stumpjumper EVO Frame

• S-Works Stumpjumper EVO

Compatibility Notes

• Geometry adjustment range varies by frame model

• Refer to your Specialized Owner’s Manual for correct flip-chip orientation

• Designed specifically for Horst Link geometry adjustment

• Torque hardware to Specialized factory specifications
