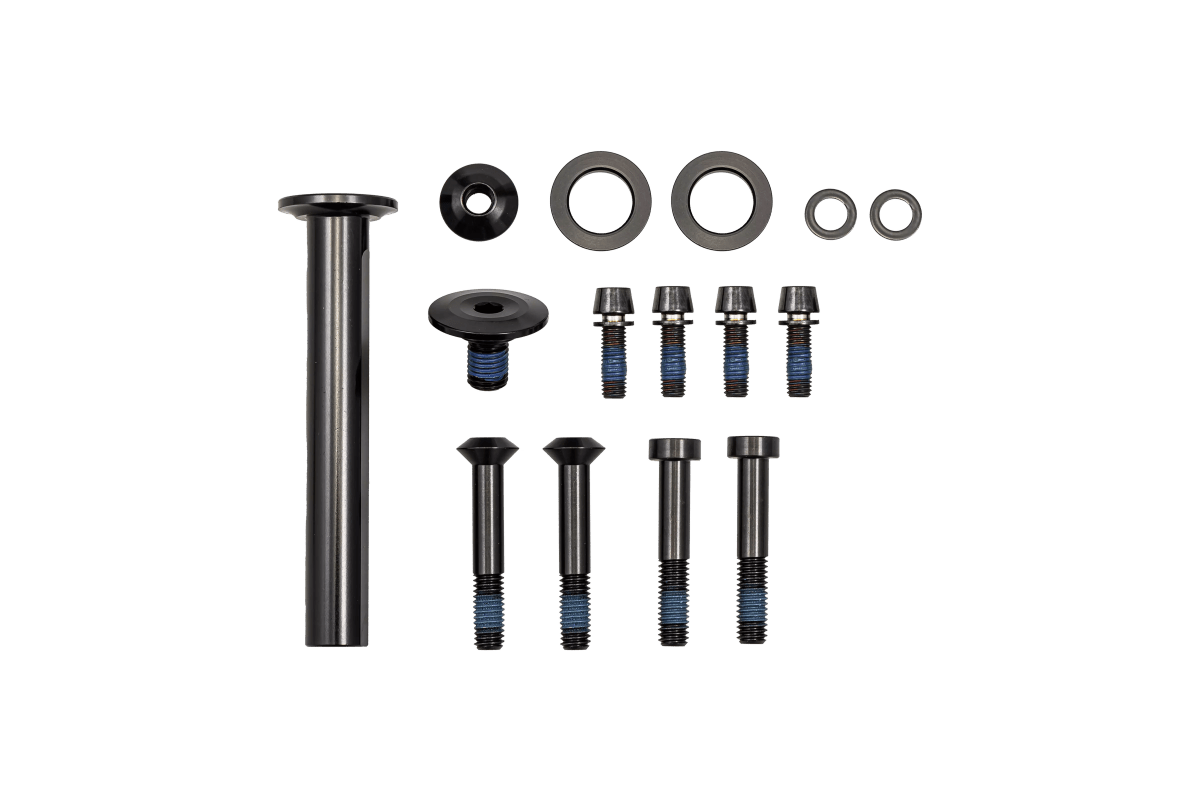

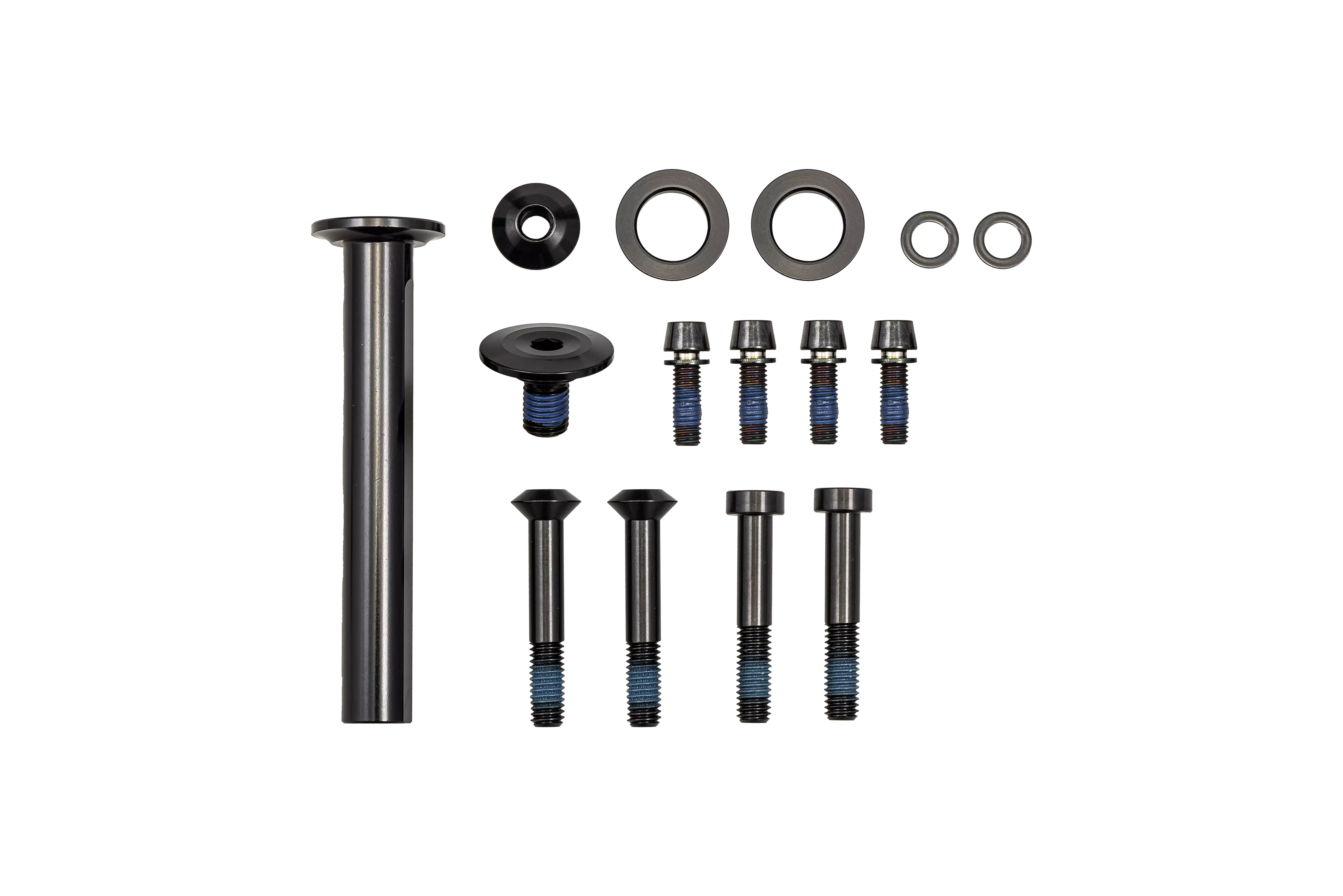

Suspension pivot bolt kit for 2023-2026 Epic World Cup bikes with all bolts and spacers
- Main Pivot Axle: 12mm W x 81mm L - Alloy - 1 pcs.
- Main Pivot Bolt: 8mm x 12.2mm L - Alloy - Torque: 89 in-lbf (10 Nm) - 1 pcs.
- Main pivot spacer: 12.1mm ID x 19.5mm OD x 3mm W - Alloy - 2 pcs.
- Upper Link Mounting Bolt: 6mm W x 40mm L - Titanium - Torque: 62 in-lbf (7 Nm) - 1 pcs.
- Upper Link Mounting Nut: Custom Shape - M6 Thread - Alloy - 1 pcs.
- Lower Link Mounting Bolt: 6mm W x 40mm L - Titanium - Torque: 62 in-lbf (7 Nm) - 1 pcs.
- Lower Link Mounting Washer: 6.2mm ID x 10mm OD x 0.5mm W - Steel - 1 pcs.
- Rear Shock Eye Bolt: 6mm W x 35mm L - Titanium - Torque: 62 in-lbf (7 Nm) - 1 pcs.
- Rear Shock Eye Washer: 6.2mm ID x 10mm OD x 0.5mm W - Steel - 1 pcs.
- Forward Shock Eye Bolt: 6mm W x 40mm L - Titanium - Torque: 62 in-lbf (7 Nm) - 1 pcs.
